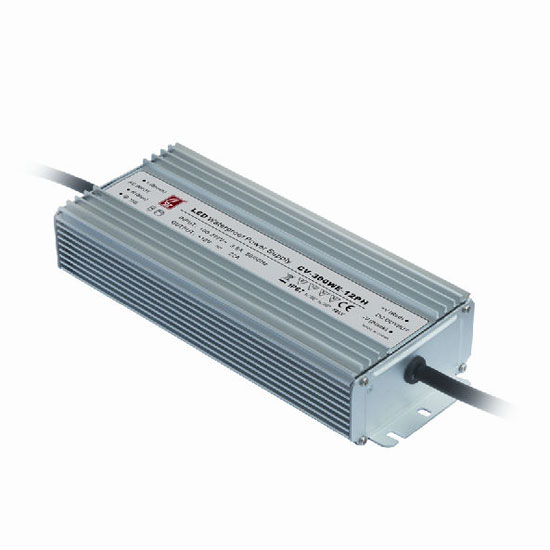

300W LED Driver
Production Lead Time:
28 day(s)
Size:
260 x 98 x 50mm
Description
Contact Supplier
Description
This is a high-performance LED driver that can provide a consistent voltage for your lights. Featuring a sturdy aluminum housing, this LED driver promises long-lasting use. Get this handy device to ensure the optimal performance of your LEDs.
- Fully sealed aluminum case, IP67 level.
- Universal AC input/full range.
- Built-in active PFC function, PF reaches to 0.99.
- High efficiency, low loss, high reliability.
- Protections: over load, short circuit, over voltage, over heat.
- Meets 4KV surge immunity level.
- CQC, CE, TUV, UL approval.
- 5-year warranty.
- AC input voltage range: 90-305VAC.
- Input frequency: 47-63Hz.
- AC inrush current: cold start, 70A/230VAC.
- Start time: 2,500mS at full load.
- Output over load protection: 110%-130% rated output current, auto-recovery.
- Output over voltage protection: 110%-130% rated output voltage.
- Withstand voltage: I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC.
- Working temperature: -40°C ~+70°C (refer to temperature derating curve).
- Storage temperature: -40°C ~+85°C @100% 20%~95%RH (non-condensing).
- Safety standards: EN60598-1, EN60950-1, EN61347-2-13.
- EMC standards: EN55015, EN55022 class B, EN61000-3-2 class C.
- Cooling method: free air cooling convection.
