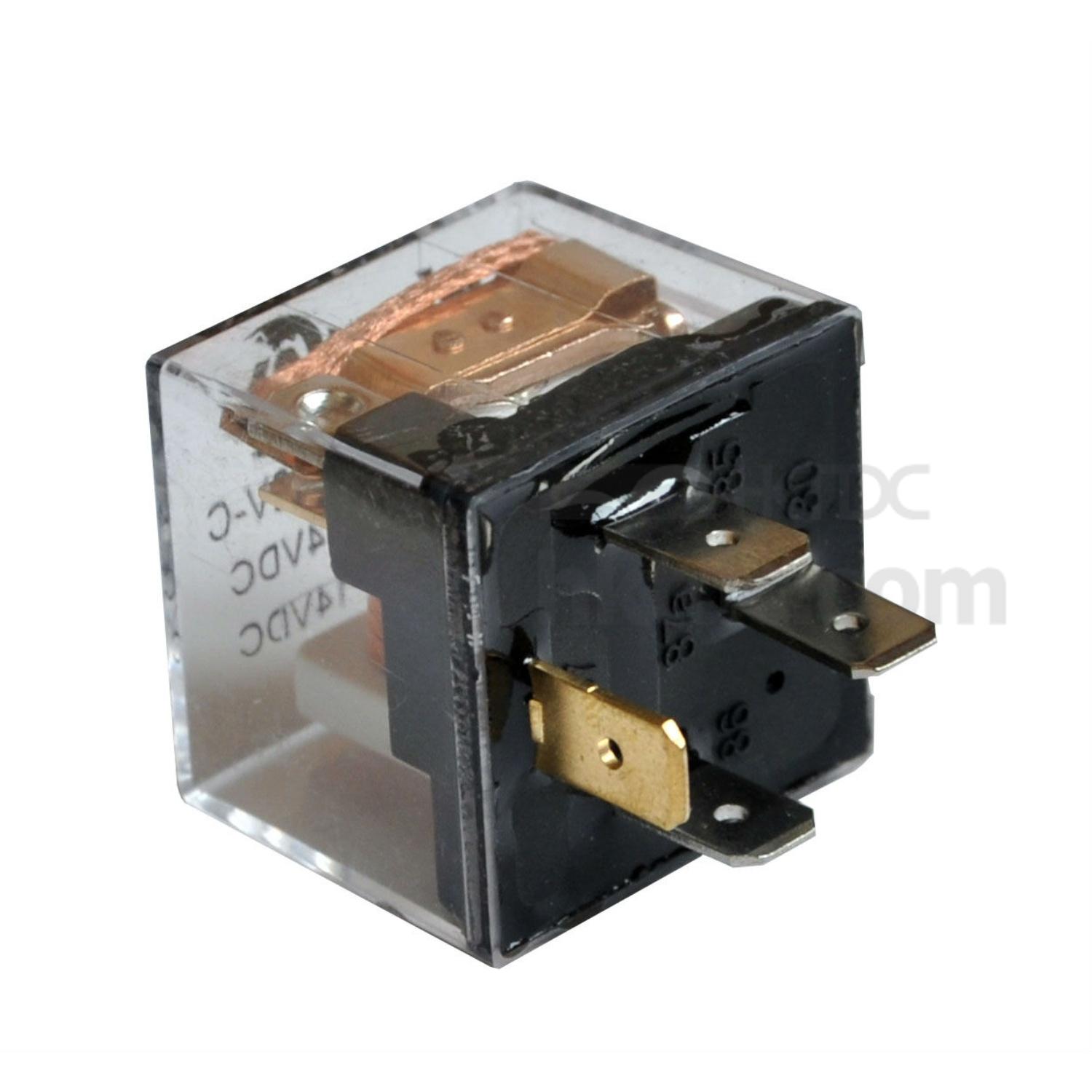

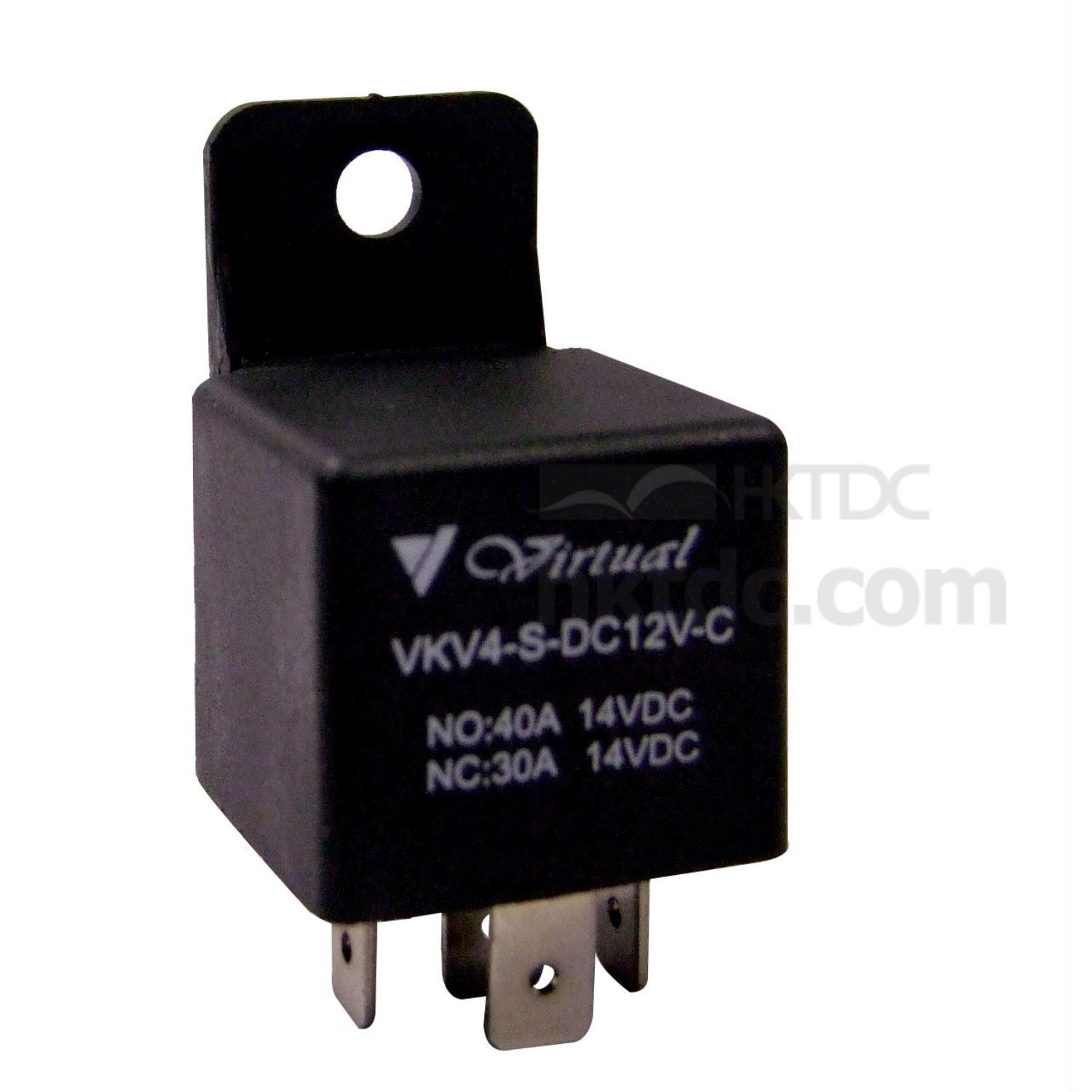

30A Automotive Relay
Production Lead Time:
3 day(s)
Model No.:
VKV4
Brand:
Virtual
Colour:
Black
Size:
28 x 28 x 25.4
Port:
Tianjin, Ningbo
Type of Payment:
T/T
Minimum Order Quantity:
500
Usage:
Auto
Size:
Miniature
Package:
Yes
Customised:
Yes
Contact Load:
High Power
Protect Feature:
Sealed
Description
Contact Supplier
Description
- Contact Form :1A 1C
- Contact Material: AgSnO2
- Contact Resistance :100mΩ (0.1A 6VDC)
- Contact Load（resistive load) :30A 240VAC/24VDC
- Max.Switching Voltage :70VDC
- Max.Rated Switching Current（Resistive Load) :40A
- Mechanical Endurance min :1×107ops
- Electrical Endurance min :1×105ops
- Insulation Resistance:100MΩ(500VDC)
- Dielectric Strength (Between coils and contacts) :
- 750VAC 1min
- Operate Time (Below Rated Voltage ) :≤10ms
- Release Time (Below Rated Voltage ) :≤10ms
- Vibration Resistance :10Hz~50Hz Amplitude 1.5mm
- Ambient Temperature :-40 ℃ to 85℃
- Weight :About 38g
- Terminal Type :PCB QC
