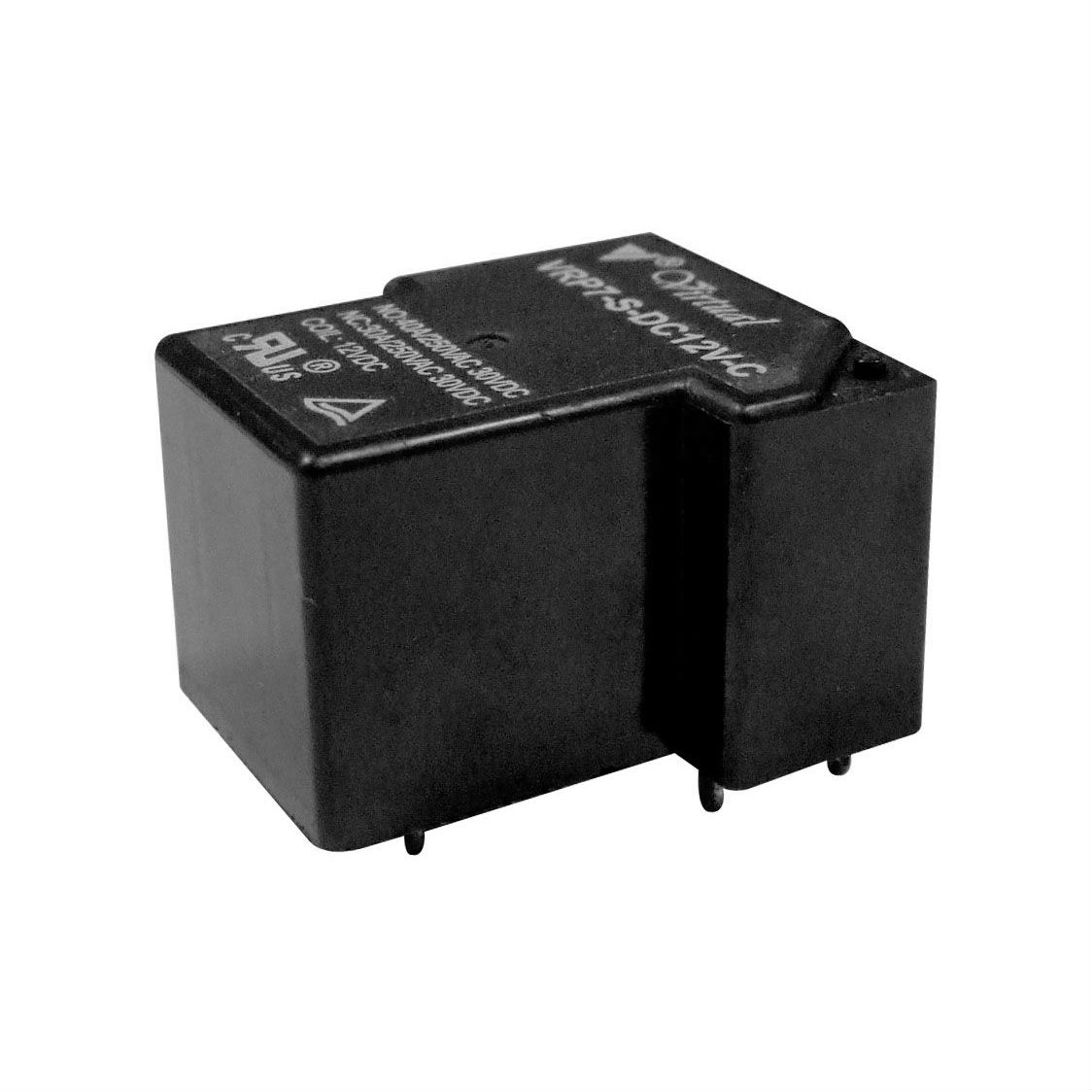

30A Relay T90 Relay 5/6 Pins
Production Lead Time:
5 day(s)
Model No.:
VRP7 DC12V
Brand:
Virtual
Colour:
Black
Size:
(L x W x H) 31.8 x 27 x 19.1mm
Port:
Ningbo, Tianjin
Type of Payment:
T/T
Minimum Order Quantity:
500
Contact Load:
High Power
Protect Feature:
Sealed
Usage:
General Purpose
Size:
Miniature
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
This general-purpose relay with a 30A switching capability adopts PCB coil terminals ideal for heavy-duty load. It can withstand 2.5kV dielectric strength between the coil and contacts. There are wash-tight and dust-protected types available.
- Contact form: 1A, 1B and 1C.
- Contact material: AgCdO.
- Max. rated switching current (resistive load): 40A (1A, 1B), 30A (1C).
- Max. switching voltage: 277V AC/30V DC.
- Max. switching power: 7,200VA/600W.
- NO: 40A/250V AC, 30V DC.
- NC: 30A/250V AC, 30V DC.
- Coil: 24V DC.
- Certificate: CRU US.
- Unenclosed, wash tight and dust protected.
