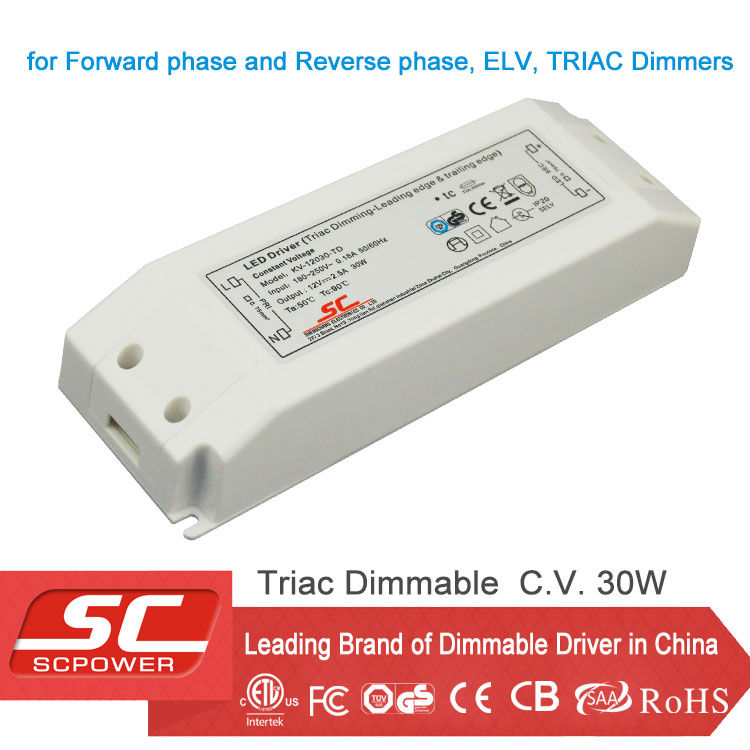

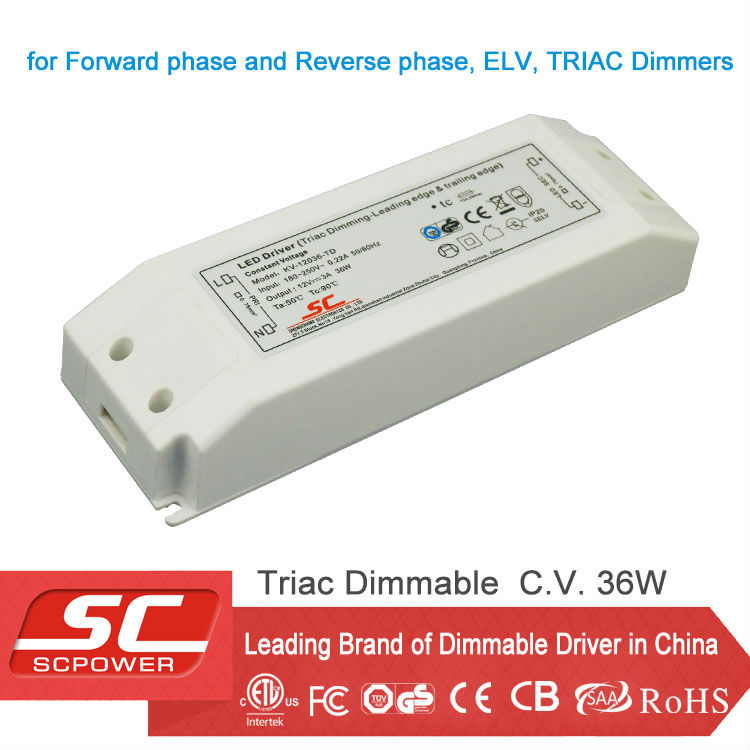

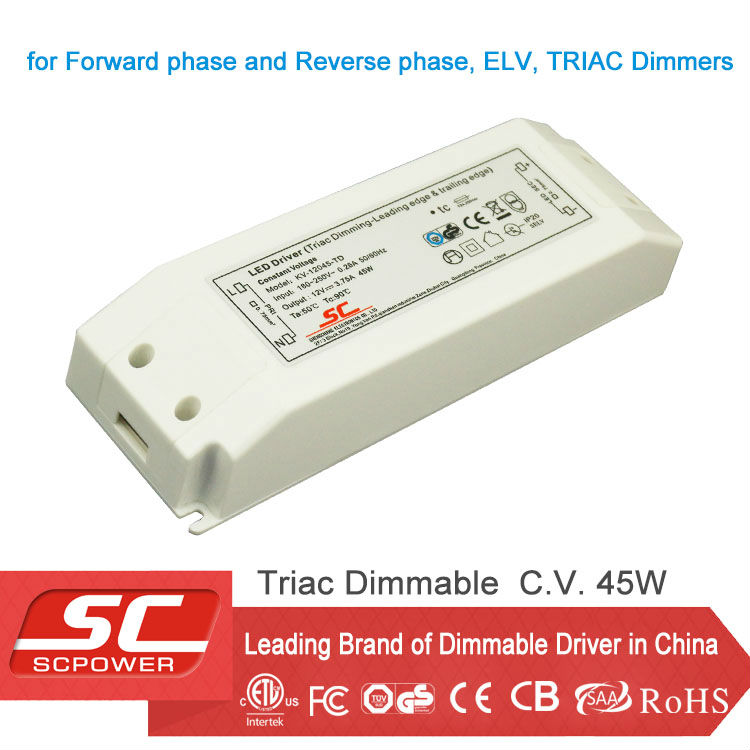

30W 36W 45W Constant Voltage Triac Dimmable LED Driver for Forward Phase

Weight:

0.5kg

Model No.:

KV-12030-TD

Brand:

Size:

180*60*35 mm

Port:

Zhuhai

Type of Payment:

T/T, Western Union, MoneyGram, PayPal

Minimum Order Quantity:

1 piece

Power:

High Power

Certification:

CE, EMC, FCC, GS, LVD, RoHS , SAA, ETL

Warranty:

3 years

Output Voltage(V):

12V-24V-36V-48V

Input Voltage(V):

90-130VAC / 180-240VAC

Description

Contact Supplier

30W 36W 45W constant voltage triac dimmable led driver for forward phase
Shengchang triac dimmable driver, constant voltage series & constant current series, not only match with many European dimmer(forward phase and reverse phase, ELV, Triac), but also match lutron & Clipsal C-BUS lighting system perfectly.

Features
•Output constant voltage
•Universal AC input/ :180-250VAC
•Built-in active PFC function
•High efficiency :up to 84%
•Protections: short circuit/over loading
•Full protection plastic housing
•Easy installation
•Cooling by free air convection
•Work with leading edge and trailing edge TRIAC dimmers
•Strong compatibility, flicker-free dimming
•Suitable for LED lighting and moving sign applications
•Compliance to worldwide safety regulations for lighting
