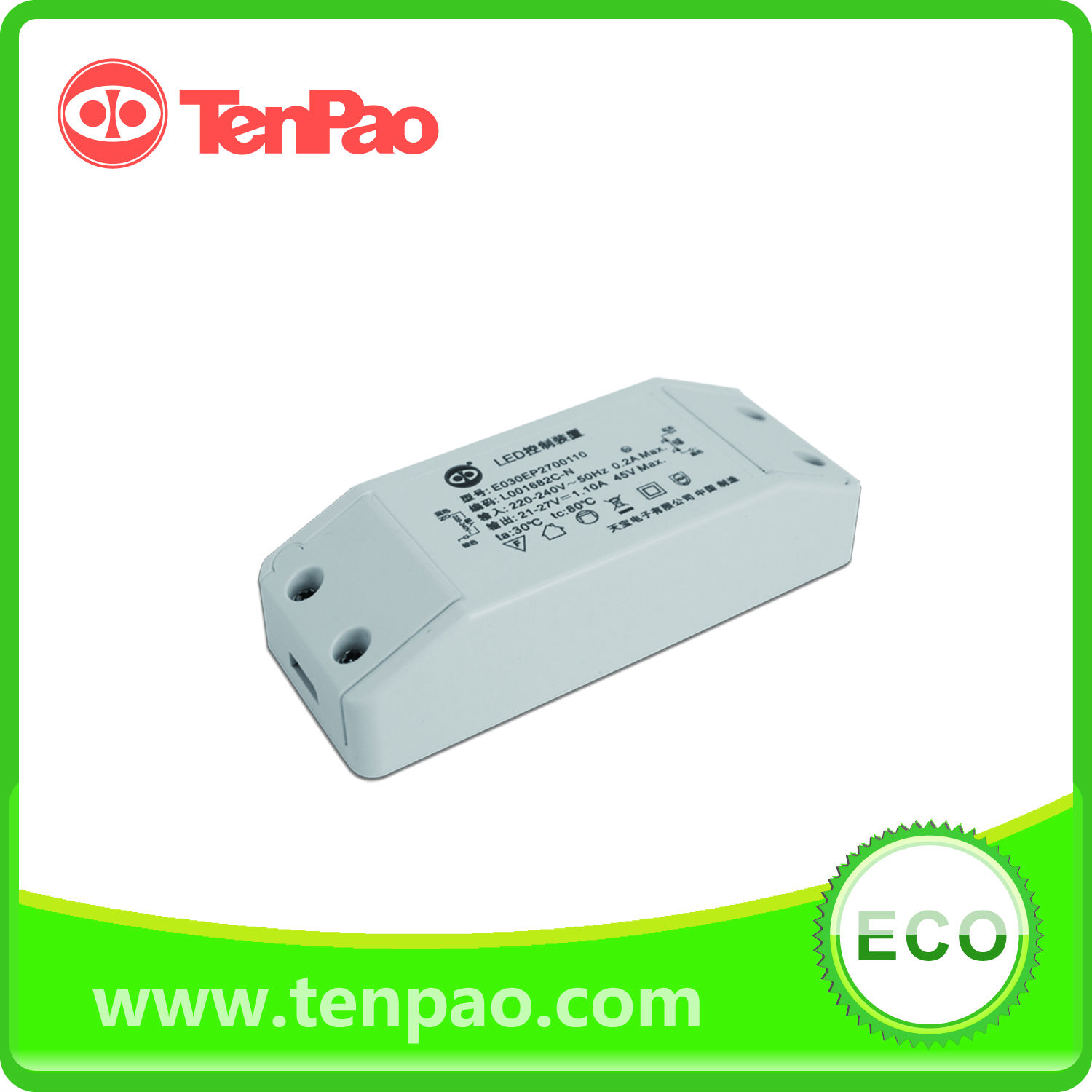

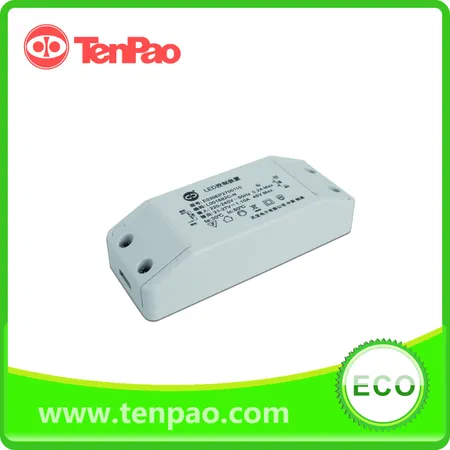

30W LED Driver Indoor Lighting
Model No.:
E030EP
Brand:
Ten Pao
Size:
115 x 45 x 29mm
Warranty:
3 Years
Output Voltage(V):
18Vdc-24Vdc, 28Vdc-42Vdc, 42Vdc-60Vdc, 50Vdc-70Vdc
Input Voltage(V):
176~264Vac 47-63Hz
Description
Contact Supplier
Description
- Series E030EP
- Features
- Economic model; Constant-current design; High power factor; Full protective cabinet; Elegant appearance; Isolation design; Natural convection cooling; 3 years warranty;
- Output 18Vdc-24Vdc | 28Vdc-42Vdc| 42Vdc-60Vdc | 50Vdc-70Vdc
- Output Current 1200mA |700mA |500mA |420mA
- Output Power 30W
- Constant Current Precision ±5%
- Input Voltage 176~264Vac 47-63Hz
- Power Factor >0.95
- Efficency 85% | 86% | 88% |90%
- Over Load Protection Hiccup mode, auto recovery
- Over Voltage Protection Hiccup mode, auto recovery
- Short Circuit Protection Hiccup mode, auto recovery
- Operating Temperature -20℃ to~+40℃
- Safety Standards /
- EMC Standards /
- Dimension(mm) 115*45*29mm(L*W*H)
- Main Application Panel light;Grille light;Down light
