30W Outdoor LED Flood Light Housing

Model No.:

LES30W-T

Brand:

LEELO LIGHTING

Colour:

White, Black, Gray

Port:

Zhongshan, China

Type of Payment:

T/T

Voltage(V):

220

Certification:

CCC

Wattage(W):

30W

Warranty:

2 year

Base Type:

E14, E27

Light Source:

COB,SMD

Body Material:

Aluminum, Glass

Is Dimmable:

Power Source:

AC, DC

Including Bulbs:

Switch Type:

Remote Control

Customized:

Yes

Description

Contact Supplier

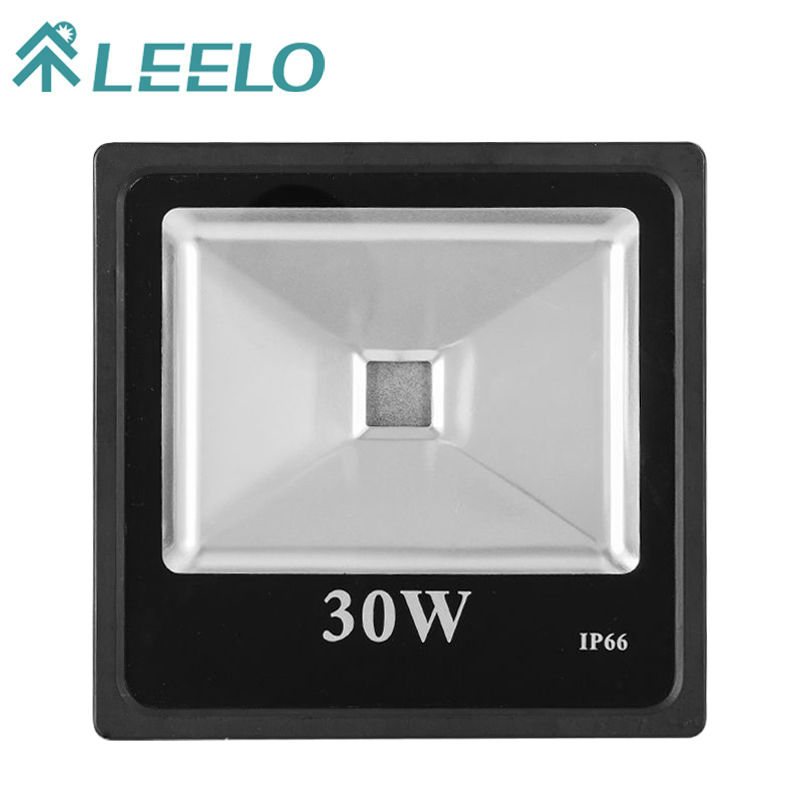

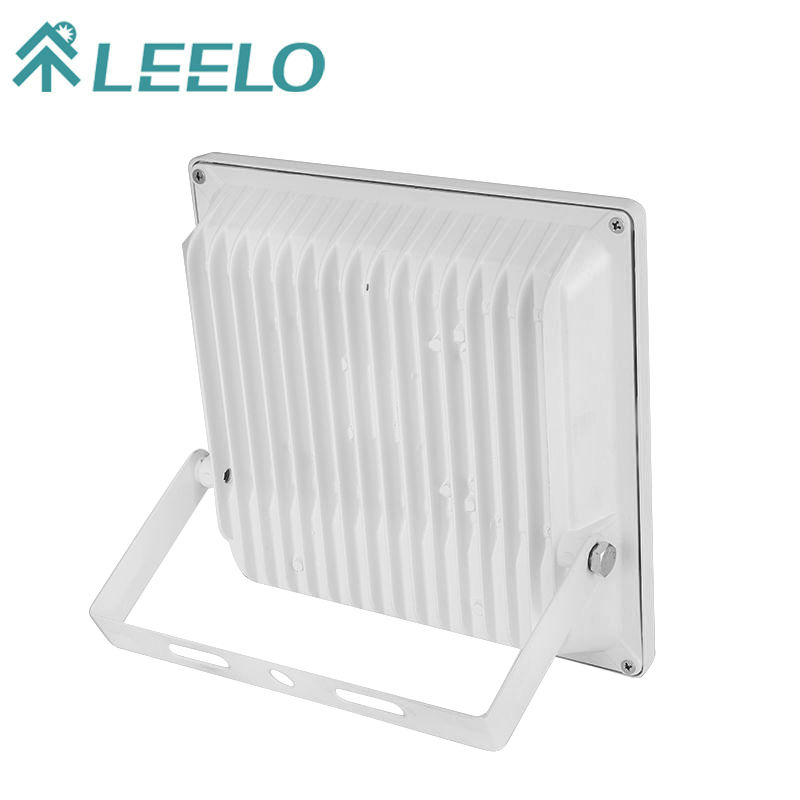

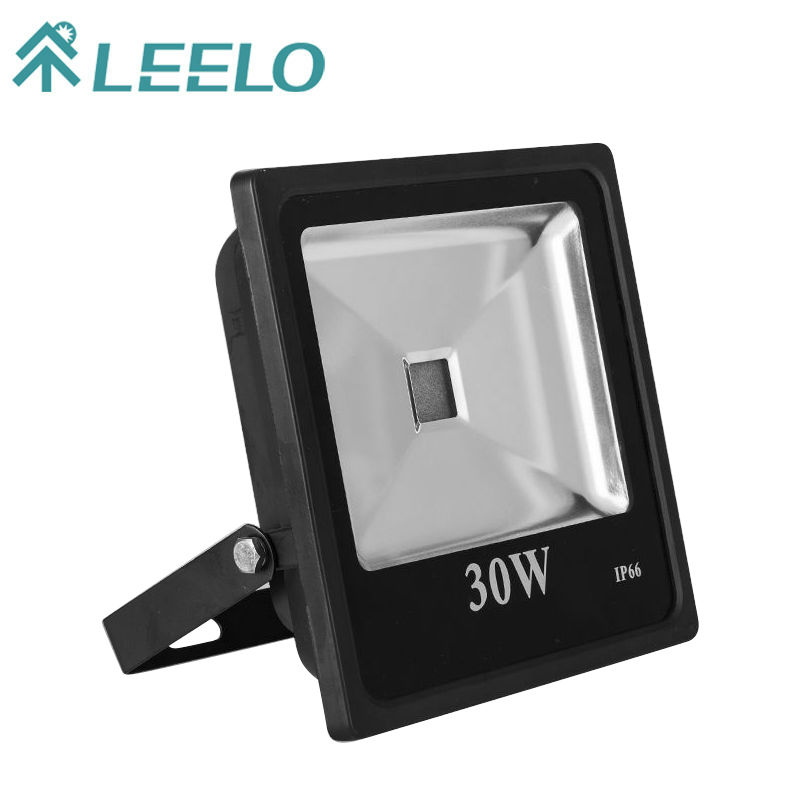

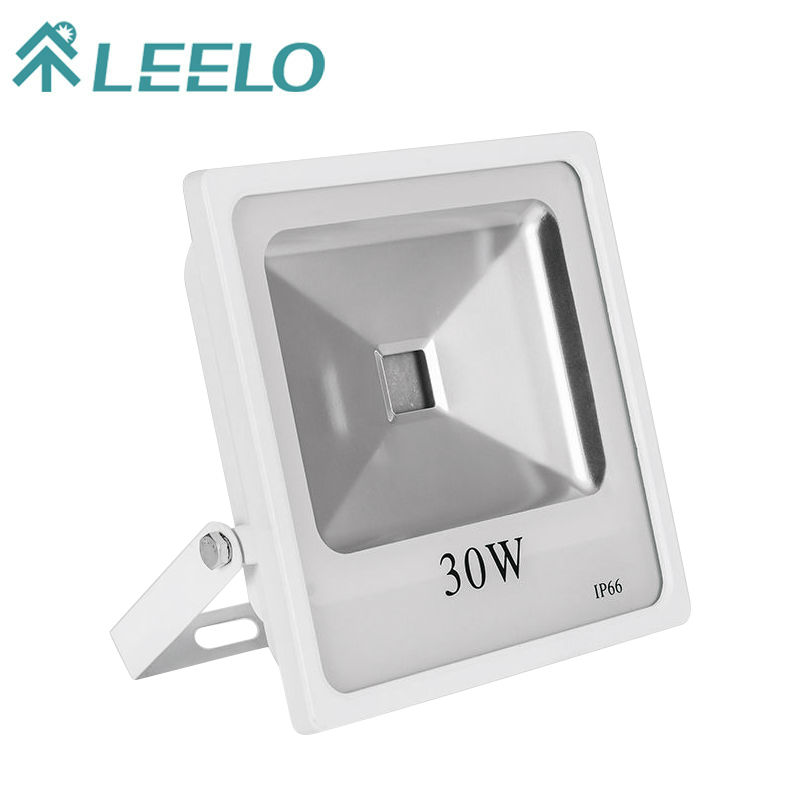

30W outdoor LED Flood light housing
Outline square
Dimension of Body(LxWxH) 226mmx221mmx53mm
Thickness of radiating fin Thick Medium thick
IP Rating IP66
Housing Material aluminum ADC12
Panel Type Metal or Aluminum
Color Black/White/Gray
Bean angle 120°
Working temperature -20°C-50°C
SMD Reflectors hole size 52mmx52mm
Difference Thickness of radiating fin are different, so the weight are different
Application Suitable for COB or SMD, Better for SMD
Standard configuration:
Light body+tempered glass+reflector+waterproof rubber ring+holder+sevral screws
Notes: The product is only fittings not finished product, couldn't be light up. If you need finished product, you need driving power and LED chip.The product need to be assembled by professional. Please tear off the protective film from the reflector before make assembly.
