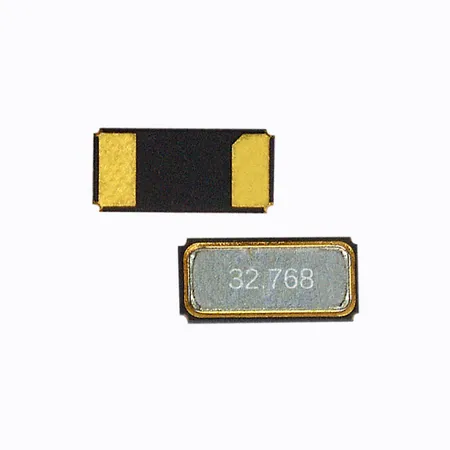

32.768KHz 3215 SMD Automotive Grade Crystal 32.768K SMD Xtal
Brand:
JGHC晶光华
Customised:
Yes
Model No.:
AH3
Size:
3.2x1.5x0.75mm
Nominal Frequency:
32.768KHz
Load Capacitance:
7pF/9pF/12.5pF
Frequency Difference:
10ppm/20ppm
Description
Contact Supplier
Description
3215 32.768KHz SMD Crystal 3.2x1.5x0.75mm H31 Series
Our Automotive-grade 32.768kHz quartz crystal resonator, designed for real-time clock applications, operates reliably in temperatures from -40~125°C. It meets AEC-Q200 standards for durability.
Features
2 pads surface mount package.
High reliable environmental performance.
RoHS compliant /Pb Free.
AECQ200 Certified for automotive RTC applications.
Crystals specifications
ITEMS/TYPE | AH3 |
Nominal Frequency | 32.768KHz |
Load Capacitance | 7pF, 9pF, 12.5pF, or specify |
Frequency Tolerance (at 25℃) | ±20ppm, or specify |
Operating Temperature Range | -40~+125℃, or specify |
Parabolic Coefficient (B) | (-0.03±0.01) 10-6 * / ℃2 |
Motional Capacitance(C1) | 3.4fF typical |
Shunt Capacitance (C0) | 1.0pF typical |
Drive Level | 0.5μW Max. |
Aging (at 25℃) | ±3ppm/year Max. |
Storage Temperature Range | -55~+125℃ |
Reliability Standard | AEC-Q200 |
