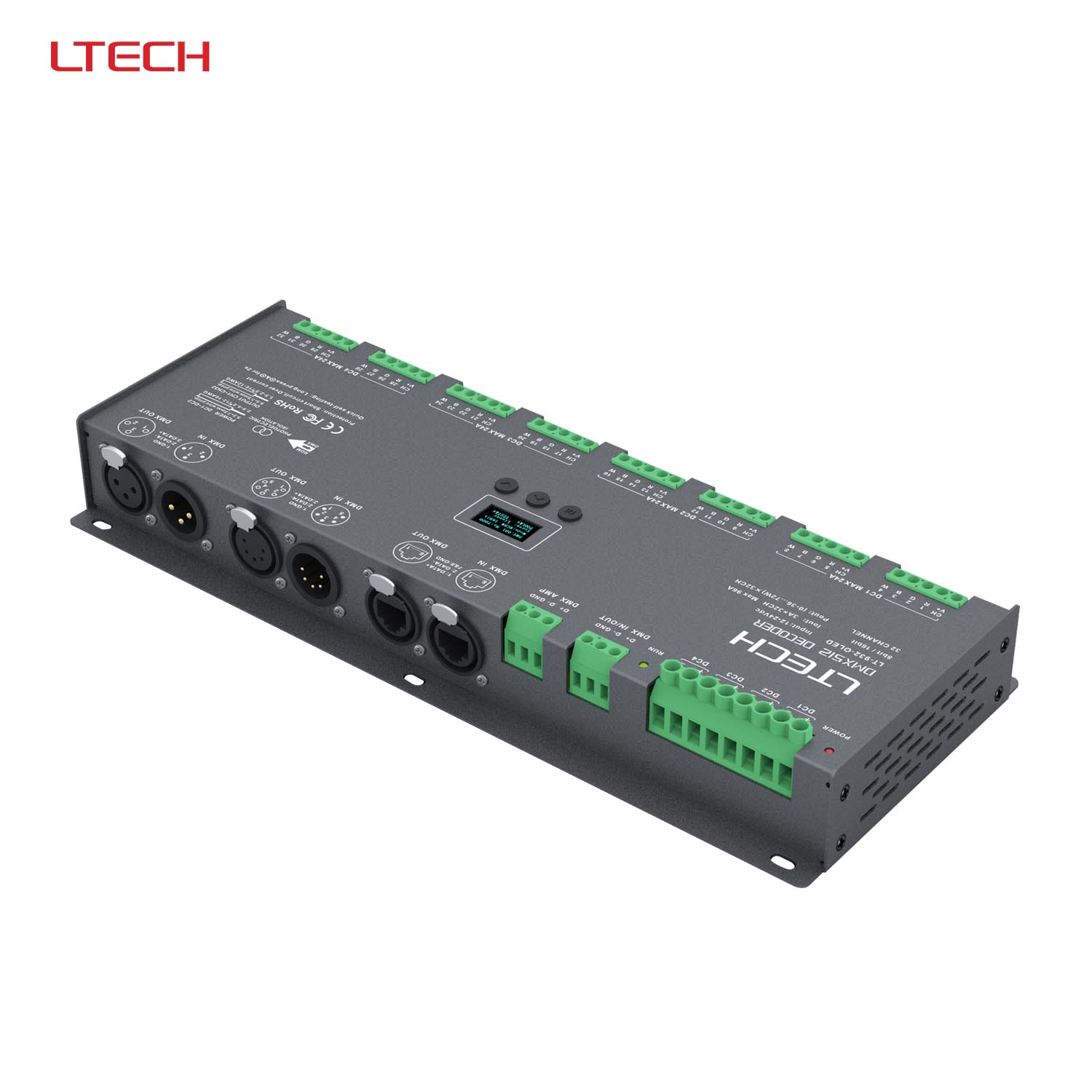

32 Channels DMX/RDM OLED Decoder

Model No.:

LT-932-OLED

Brand:

LTECH

Certification:

CE, EMC, FCC, LVD, UL

Warranty:

5 Years

Output Voltage(V):

12-24

Input Voltage(V):

12-24

Input Signal:

DMX

Output Signal:

PWM

Description

Contact Supplier

Product Introduction:
Designed for Hi-power multiple channels application, 32 channels output, and Max. 3A current per channel, up to 2304W output power
Easy operation with OLED screen and the touch buttons
4 kinds of mode optional: single color, color temperature, RGB, RGBW
Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,RJ45 and green terminal (with signal amplifier function)
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc
With photoelectric isolation function
With shortcut protection and over load protection, as well as warning function when fault
With fast self-testing function
16bit / 8bit resolution optional
Multiple dimming curve (0.1~9.9) optional
Input signal DMX512/RDM
nput voltage DC12V--DC24V
Max load current 3A ×32CH
Max. 96A
Max output power (0~36W...72W) x32CH
Max.2304W
DMX512 socket XLR-3, XLR-5, RJ45
Green terminal Control mode DIM/CT/RGB/RGBW DIM Curve 0.1--9.9
Gray scale level 8bit(256 levels)/16bit(65536 levels)
Photoelectric Isolation Yes
Working temperature -30--65 degree centigrade
Dimension L300×W122×H39(mm)
Package Size L309×W127×H41(mm)
Weight (G.W) 1050g
