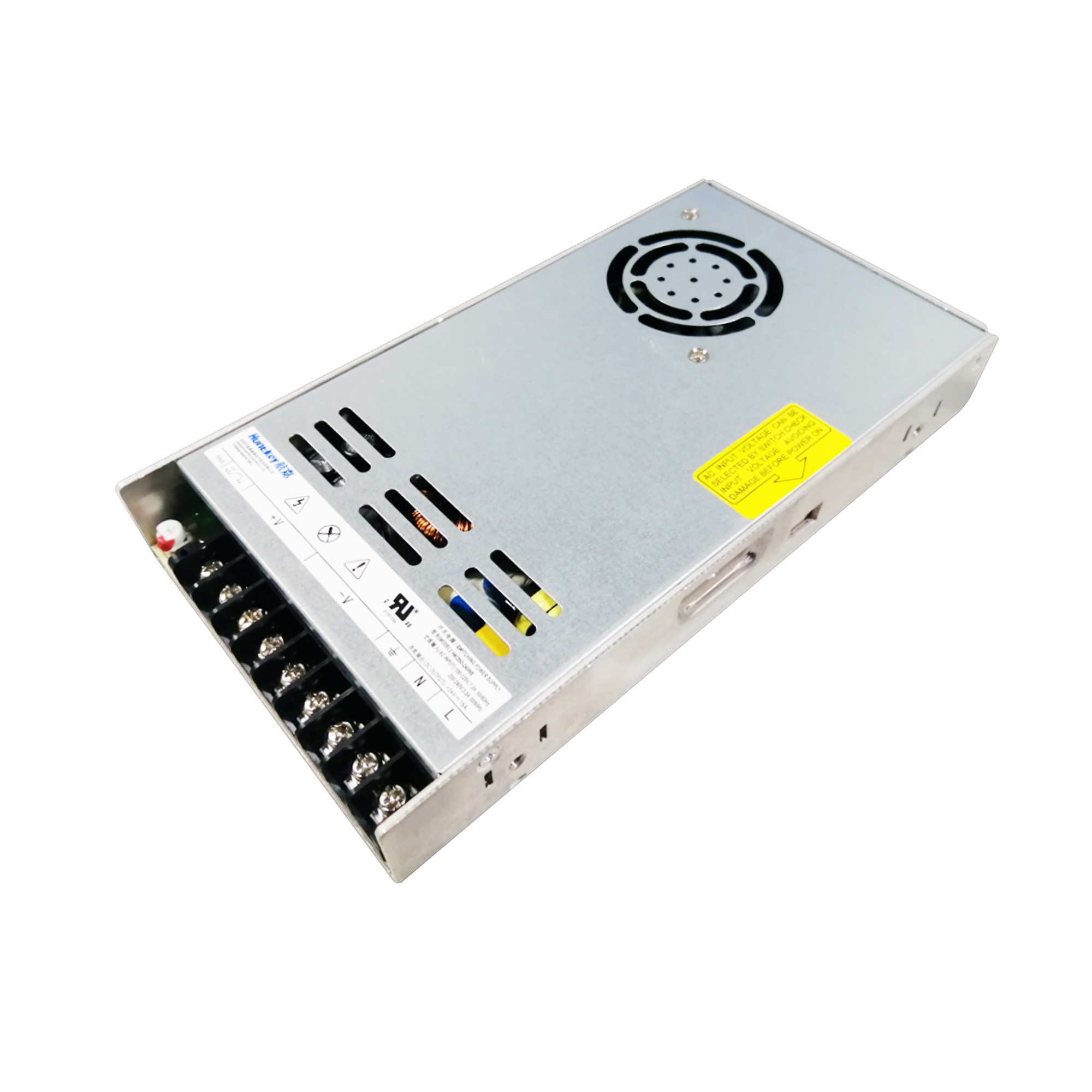

350W 12V/30A Single-Rail Output Switching Power Supply, AC/DC Switching Adapter
US $20.00 - US $25.00
Production Lead Time:
30 day(s)
Shipping Method:
Negotiable
Brand:
Huntkey
Model No.:
HKI350-120NB
Output:
12V/30A
Input:
90-132VAC/176-264VAC (switch to change)
Protections:
OVP, OCP, OTP, UVP, SCP
Dimensions:
215*115*30mm
Certificates:
UL
Description
Contact Supplier
Description
350W Single-Rail Output
Features:
- Switch to change input voltage range
- Small size, slim in height of 30mm
- All-round protections, including OVP, OCP, OTP, UVP & SCP
- High efficiency, transfer efficiency can reach up to 86%
- Low ripple, can lower than 80mVp-p
- Operating temperature from -30 to 70 Celsius degree
- High capacitive load, 2000uF/A at the least
- High reliability, 100% burn-in test, 3-year warranty
- Choices for parallel or unparallel operation
- Environment friendly, lead free, UL certified
Specifications:
Model | HKI350-120NB | HKI350-240NB | |
Output | DV/DC | 12V/30A | 24V/15A |
Voltage Regulation Range | 11.4~12.6V | 21.6~28.8V | |
Current Regulation Range | 0~30A | 0~15A | |
Regulation Precision | ±2% | ±2% | |
Ripple | <50mVp-p | <80mVp-p | |
Input | Lowest Efficiency | 86% | 86% |
Voltage Range | 90~132VAC/176-264VAC(Switch to change) | ||
Surge Current | Cold boot<65A/230VAC | ||
Protections | OVP | 115%-135%(Rated Voltage), auto restore | |
OCP | 120%-180%(Rated Current), auto restore | ||
OTP | To ensure all components will not exceed a certain temperature, auto restore | ||
UVP | Input UVP activation point:<=60Vac, UVP restoration point:>=70Vac | ||
SCP | To protect components without being damaged or burned, auto restore | ||
Environment | Operating | -25~+70°C, 20~90﹪RH, no condensation (please refer to load-deflection curve) | |
Storage | -40~+85°C, 10~95﹪RH, no condensation | ||
Vibration | 10~500HZ, 5G, 10 minutes/cycle, 60 minutes for each X-, Y-, Z-direction | ||
Safety & EMC | Safety Standards | UL60950-1, IEC/EN61558-1, IEC/EN60335-1 | |
EMC Standards | IEC6100-3-3, IEC61000-4-2,4,5,6,8,11 | ||
Hi-Pot | I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC | ||
Others | Dimensions | 215*115*30mm | |
Packing | 20pcs/18kg | ||
Mechanical Specifications | 10 | ||
