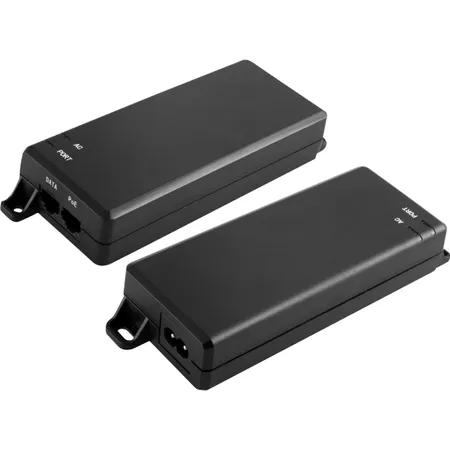

35W POE Power Supply

Production Lead Time:

75 day(s)

Shipping Method:

FOB HK

Application:

IP phones, AP Wi-Fi, portable battery chargers, POS

Model No.:

PoE35-54A

Brand:

Fuhua

Colour:

Black, White

Size:

172 x 62 x 30.6mm

Package:

Yes

Customised:

Yes

Output Voltage:

48V/54V

Input Voltage:

90 - 264VAC

Output Power:

35W

Output Current:

0.65A

Place of Origin:

Mainland China

Description

Contact Supplier

Features:IEEE802.3at
For 1,000Mbps data transmission, a built-in network conversion connector
The built-in network conversion connector
Electrical specifications: Input voltage range: 90-264V AC
Input current: 1.0A
Output voltage range: ±5%
MTBF: 50,000 hours at maximum load levels and an ambient temperature of 25℃ (in correspondence with MIL-HDBK-217)
Low-standby power: 0.3W

Environment parameters:

Operation temperature: - 5-45℃
Storage temperature: -40-70℃
Humidity: 5 to 95% RH (non-condensing)
Safety approval: CN(IEC62368), GS(EN62368), UL(UL62368), PSE(J62368), CCC (ITE GB4943), EAC, RCM, BIS, CE marks
Dimensions (L x W x H): 172 x 62 x 30.6mm
Applications: IP phones, AP Wi-Fi, portable battery chargers, POS
