35kHz/1200W Ultrasonic Plastic Welding Machine Servo Drive | Industrial Machinery, Parts & Raw Materials

Fujia Machine Equipment Co.,Ltd

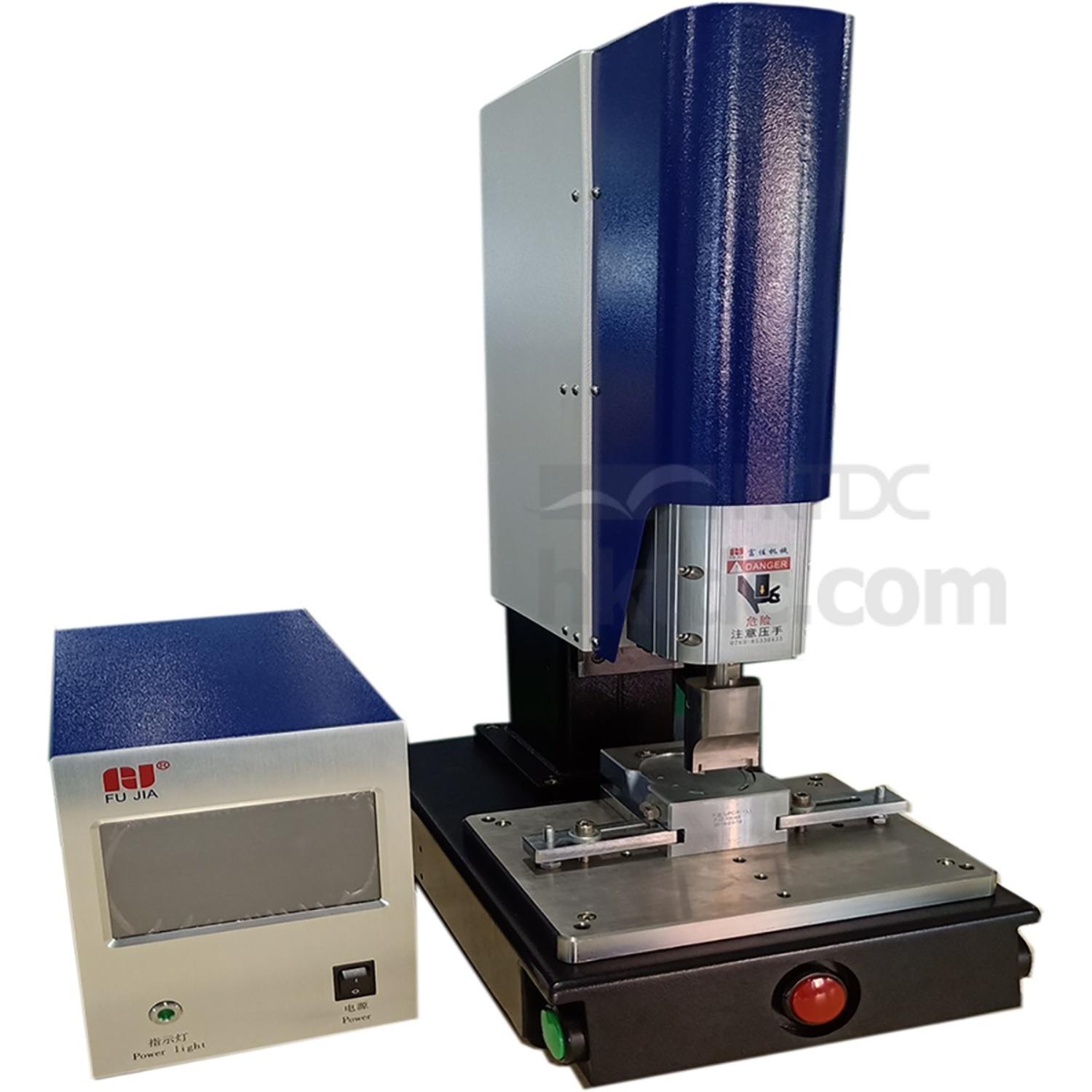

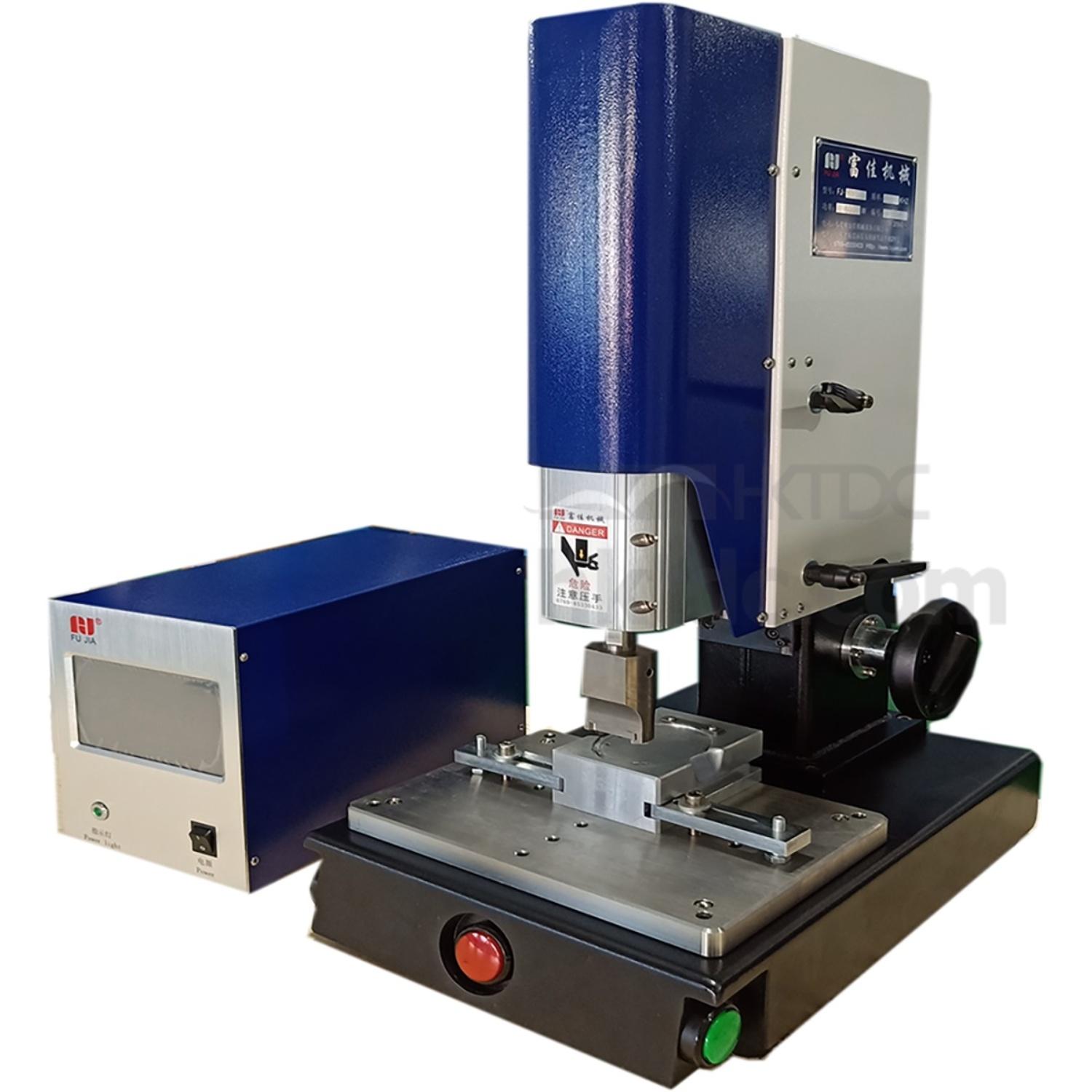

35kHz/1200W Ultrasonic Plastic Welding Machine Servo Drive

Production Lead Time:

35 day(s)

Model No.:

FJ-3512

Brand:

Fujia

Colour:

Deep blue and gray

Size:

Case Meas (cm): 135 x 68 x 44cm

Port:

Shenzhen Port

Type of Payment:

T/T

Minimum Order Quantity:

1 piece

Customised:

Yes

Description

Contact Supplier

Technical Data:

Machine Style: FJ-3506
Generator Frequency: 35KHZ
Generator Output[W]: 600/1200W
Power Supply:AC 220 50HZ
Up-Down Frame Travel Distance [mm]: 120
Working Stroke Distance [mm]: 0-100
Downstroke Accuracy [mm]: 0.05
Amplitude Range: 10-100
Machine Dimensions [L*W*H/cm]: 120*60*40
Main Parts: Panasonic servo motor, Generator, THK screw,35Khz THK linear module.

Key Features:

Drive by panasonic servo motor.
Downsteer using heavy duty modules, high positioning accuracy,good repeatability,High precision mode can be maintained for a long time.
Intelligent circuit, automatic frequency tracking.
Time, depth, energy, power, data storage mode.
Monitoring function: upper and lower limit monitoring, trigger speed can be adjusted.
Pressure trigger, segmental welding mode.
