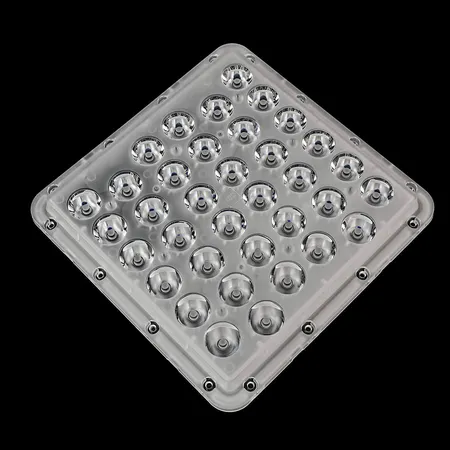

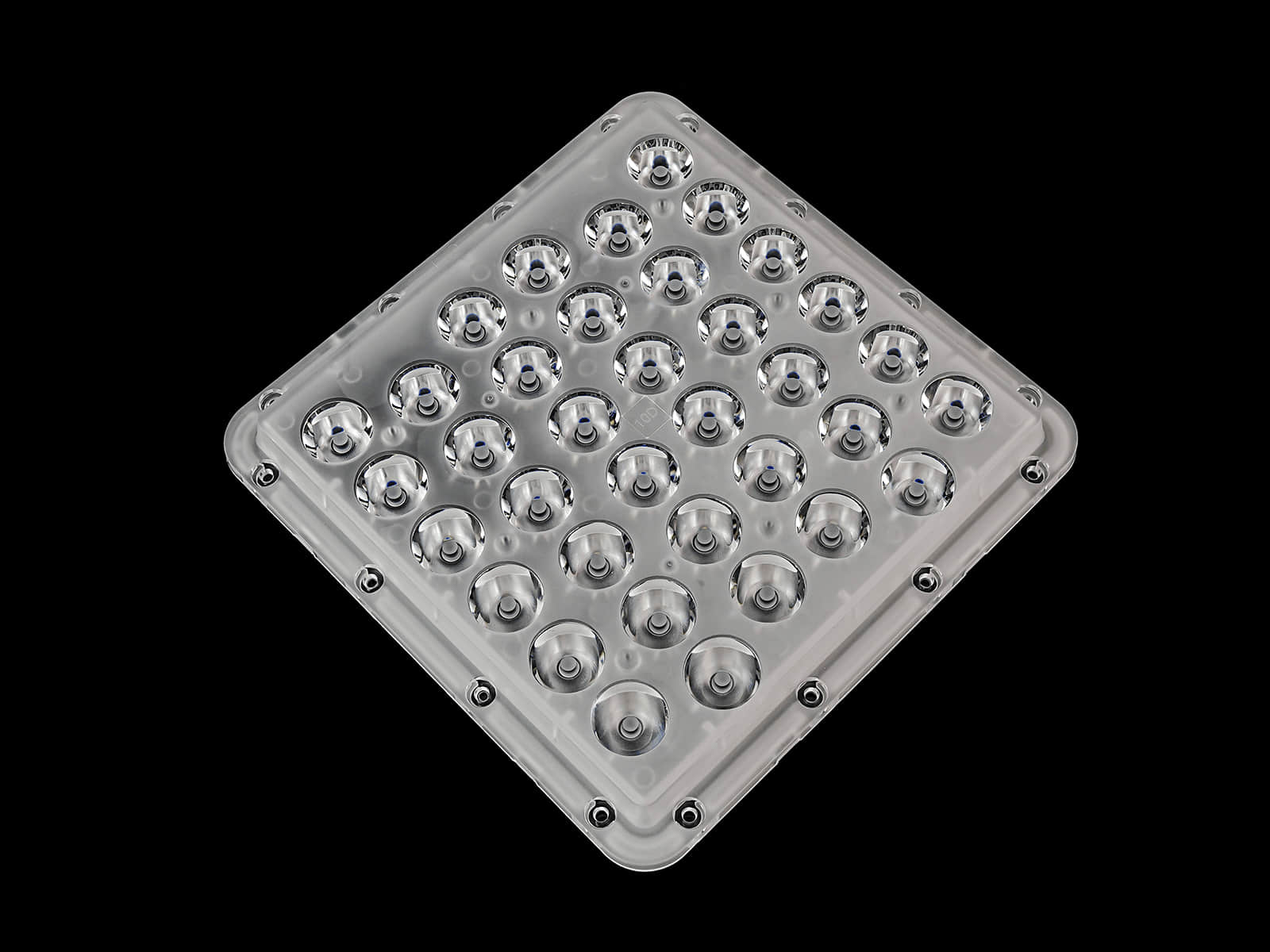

36LEDs high power lens for Stadium lighting

Model: AJHB180D36LED

Diameter: 180mm

Height: 16.8mm

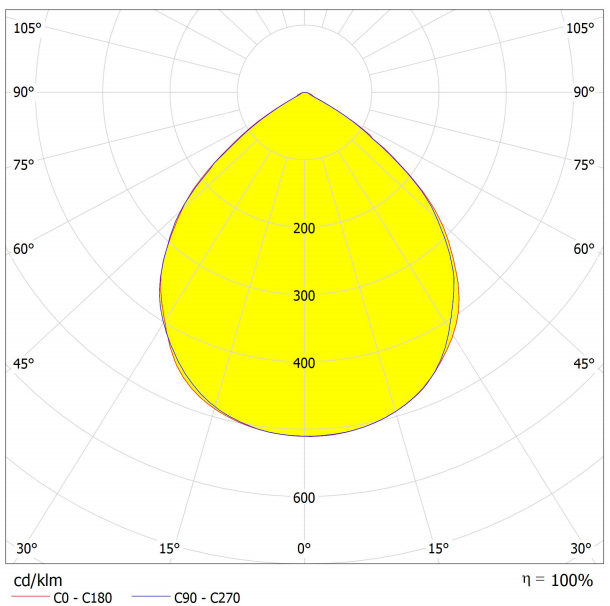

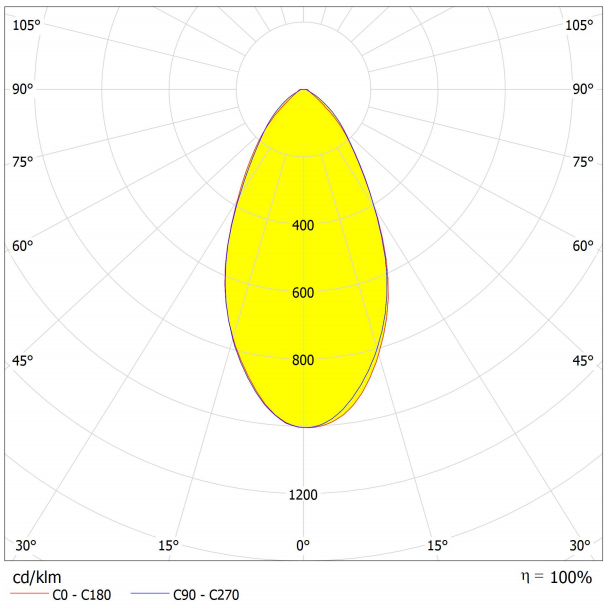

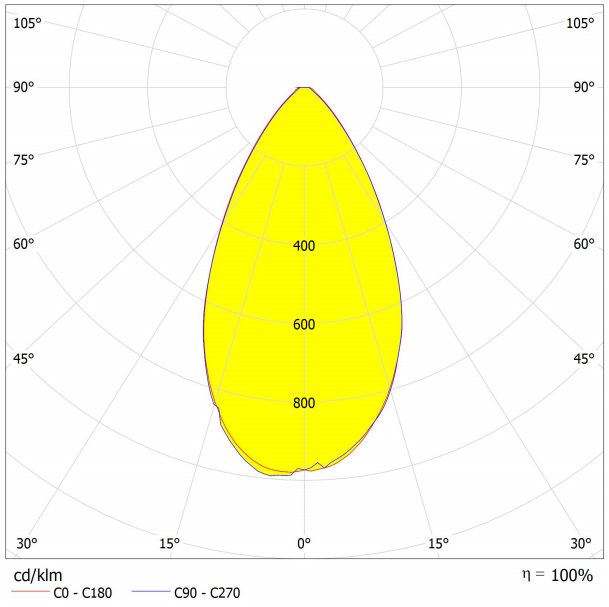

Angle: 10°, 15°, 30°, 45°, 60°, 90°,

Material: PC

Transmittance: >90%

LED Type: 3535LED

Lighting Applications: High Bay lighting, Stadium lighting

1. High Power lens module for Stadium lighting and Floodlight, with completely optical beam angles 10°, 15°, 30°, 45°,  60°，90°.

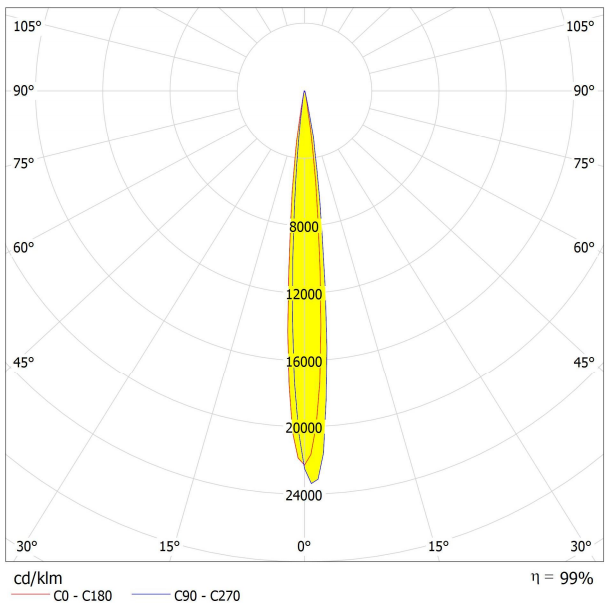

2. The 10-degree lens is able to effectively focus the light emitted by the 3535 LEDs so that the light is concentrated in a smaller area, thus significantly increasing the intensity and distance of the beam. This is ideal for scenes that require long distance or focused illumination.

Our Services

• Innovative in LED Optical Engineering and Manufacturing Services
• Quick response (Quick-turn of new development)
• Strong R&D Team (Excellent engineering team with 10 years of experience), committed to bringing our customers the best LED optical designs.
• Production (Advanced equipment, Tooling dimensional accuracy is within 0.01mm, Optical finishing accuracy is within 0.001mm, Tolling lifetime can reach 500,000 shots.)
• Marketing (Wide range of products)
• One-stop service for private mold optics design, and mass production.
• Services (Thorough and satisfactory before & after-sales service)
