36mm DC Brushless DC Motor

Production Lead Time:

25 day(s)

Model No.:

B3640M

Brand:

Hengdrive

Colour:

Metal

Size:

36*40mm

Port:

SHENZHEN / HONGKONG

Type of Payment:

prepayment 30%, balance Cash Before Delivery

Minimum Order Quantity:

3000PCS

Warranty:

2 year

Customized:

Yes

Description

Contact Supplier

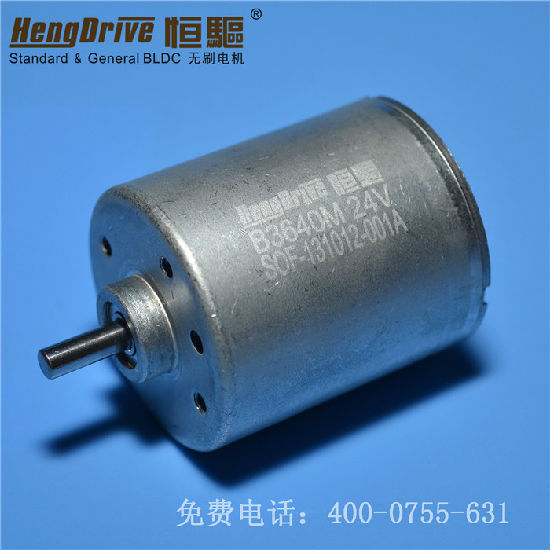

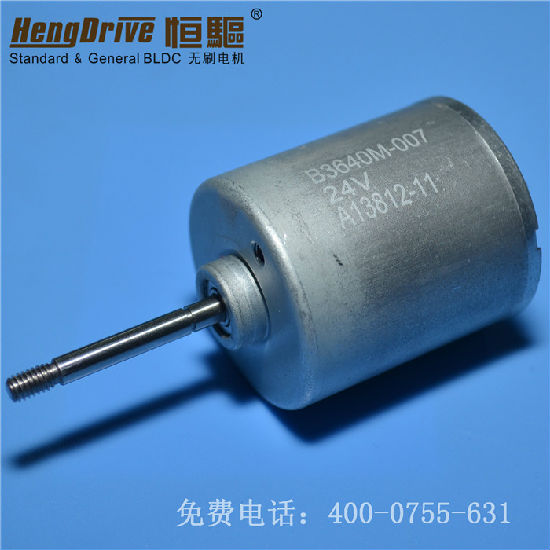

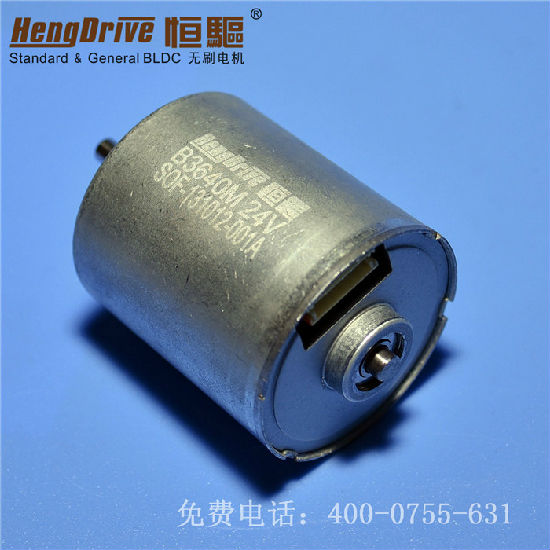

B3640M Brushless DC Motor
Output Power: 2W~30WWeight: 145g (Approx.)

Typical Application
Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine
Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine
Industry Equipment: Electric Valve, Actuator, Micro Pump
Business Equipment: Printer, Copier, Projector, ATM, Vending Machine
Personal Care: Hair Dryer, Electric Shaver, Massager

Specification:
No Load
Voltage(V): 12
Speed(rpm) : 2360
Current(A) : 0.14

Rated
Torque (mNm):25.5
Speed (rpm):1830
Current (A):0.69
Output P.(W):4.9

Starting
Torque (mNm):174.1
Current (A) : 4

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

For Outline drawing and more specifications, please mail to sales@hengdrive.com to get them!
