384KHz 32bit USB DSD DAC Amplifier

Production Lead Time:

21 day(s)

Model No.:

UAU19A

Brand:

SYBASONIC

Colour:

Silver

Size:

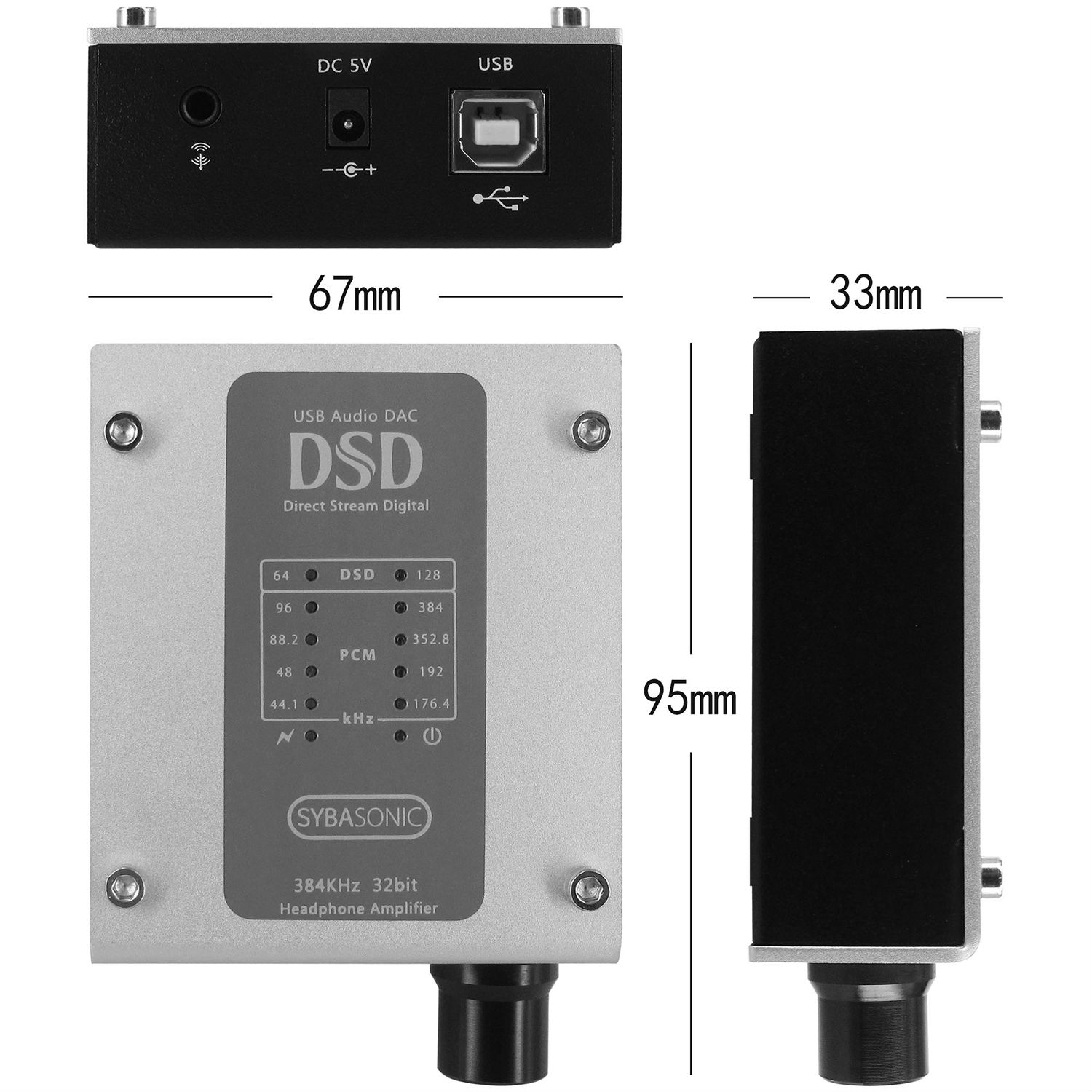

9.5 x 6.7 x 3.3 cm

Port:

Hong Kong

Type of Payment:

PayPal

Minimum Order Quantity:

Package:

Yes

Customised:

Yes

Description

Contact Supplier

Specification:

Supports DSD 2.8/5.6MHz playback
Supports PCM 384KHz/32bit playback
Supports DSD native or DoP
Asynchronous transfer mode to achieve low jitter
Support Apple (with camera kit) and Android phone (with OTG adapter) as headphone amplifier
SNR : around 110dB (A-weighting)
Max. Headphone Output power(at 1KHz and single channel):
- around 210mW / 16ohm ;
- around 190mW / 32ohm ;
Headphone Drive Ability: 16 - 600ohm
High Quality DAC – CS4392
High Quality Headphone Amplifier
Opamp are +/-12V powered by internal power boosting circuitry
IC socket for Opamp upgrade
6.3mm & 3.5mm headphone outputs
Toslink S/PDIF Digital output

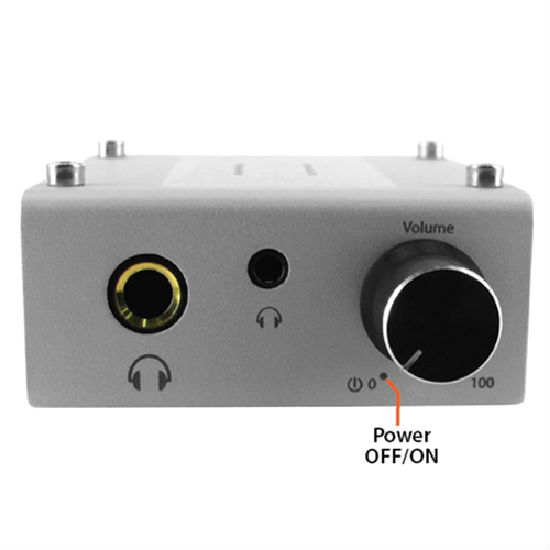

Analog Volume Control
Supports ASIO and WASAPI
Powered by 5V from USB/AC Adapter
LED indicators for DSD and PCM playback
Integrated de-pop function for suppress pop noise during PC power-up and shut down
Very fine finishing metallic case
All information and specification are subject to change without prior notice
All brand names and trademarks referenced are the properties of their respective owners
The picture/s above might differ from the actual product delivered
