Designed for the special building requirement applications, where the ceiling construction will be filled with thermal insulation for energy protection. Especially for Nordic countries, France, Germany, where the local buildings regulations request passive house design.

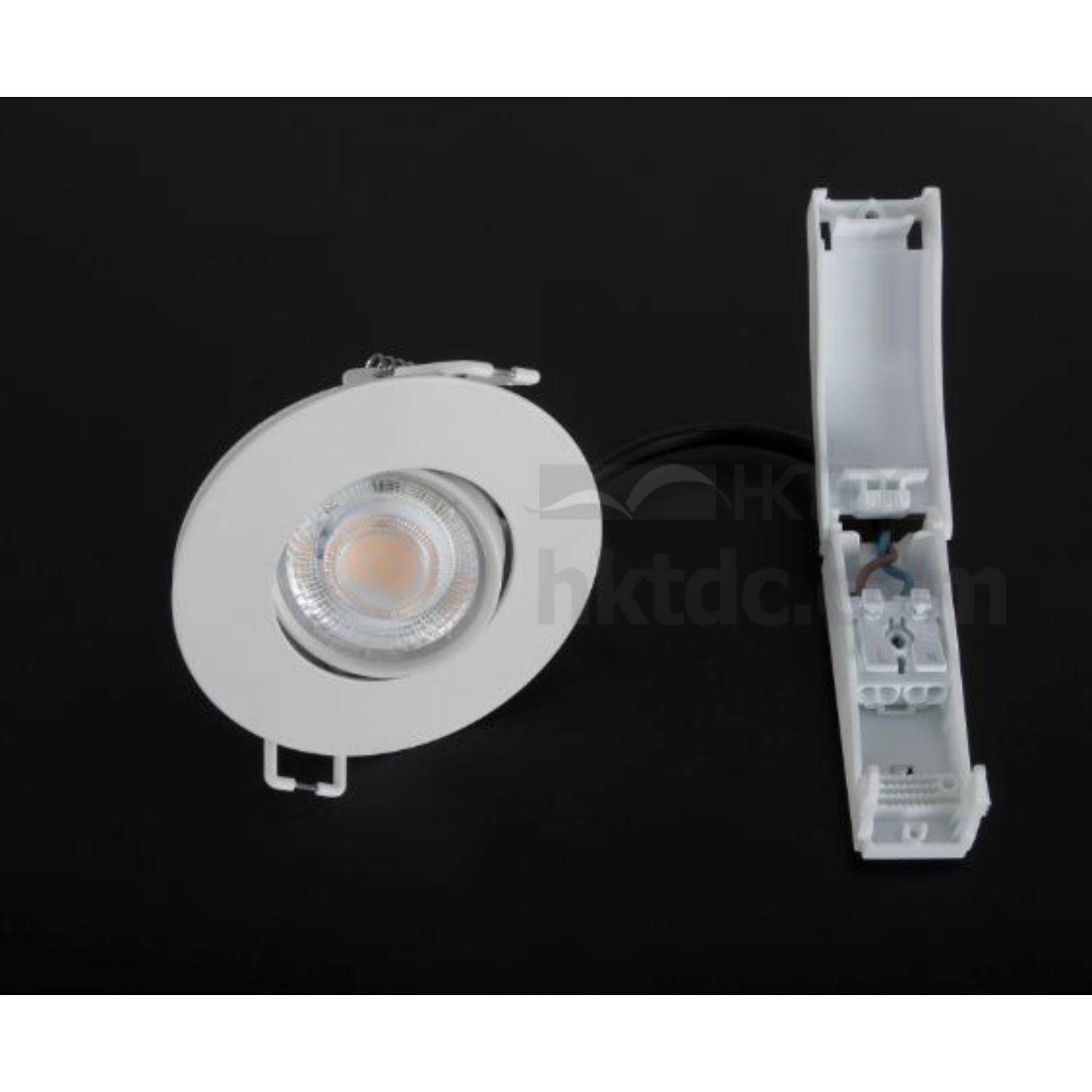

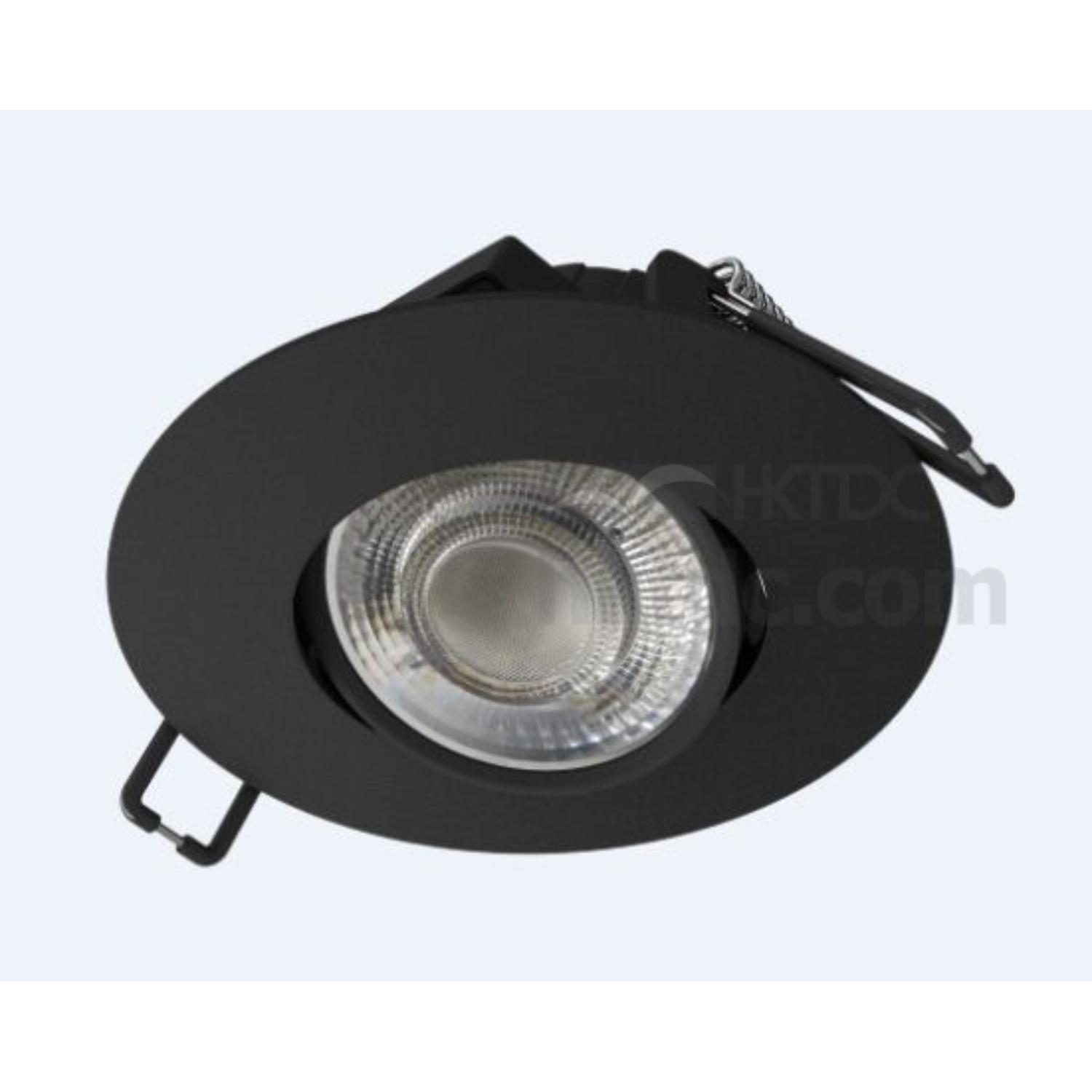

The Vila™ is Kinglumi latest MultiCCT technology innovation to bring simplification and adaptability to the LED lighting market. This new technology provides you with the ability to change the color temperature by simply flicking the switch. Within one downlight, you have multiple color temperatures that range from warm white to cool white. This new feature doesn’t compromise the product performance. Powered by Lumileds LEDs, with an efficacy of up to 100lm/W, available models in 4.5 wattage and 6.5 wattage with fix or tiltable, push-fit terminal connector for loop in/out.

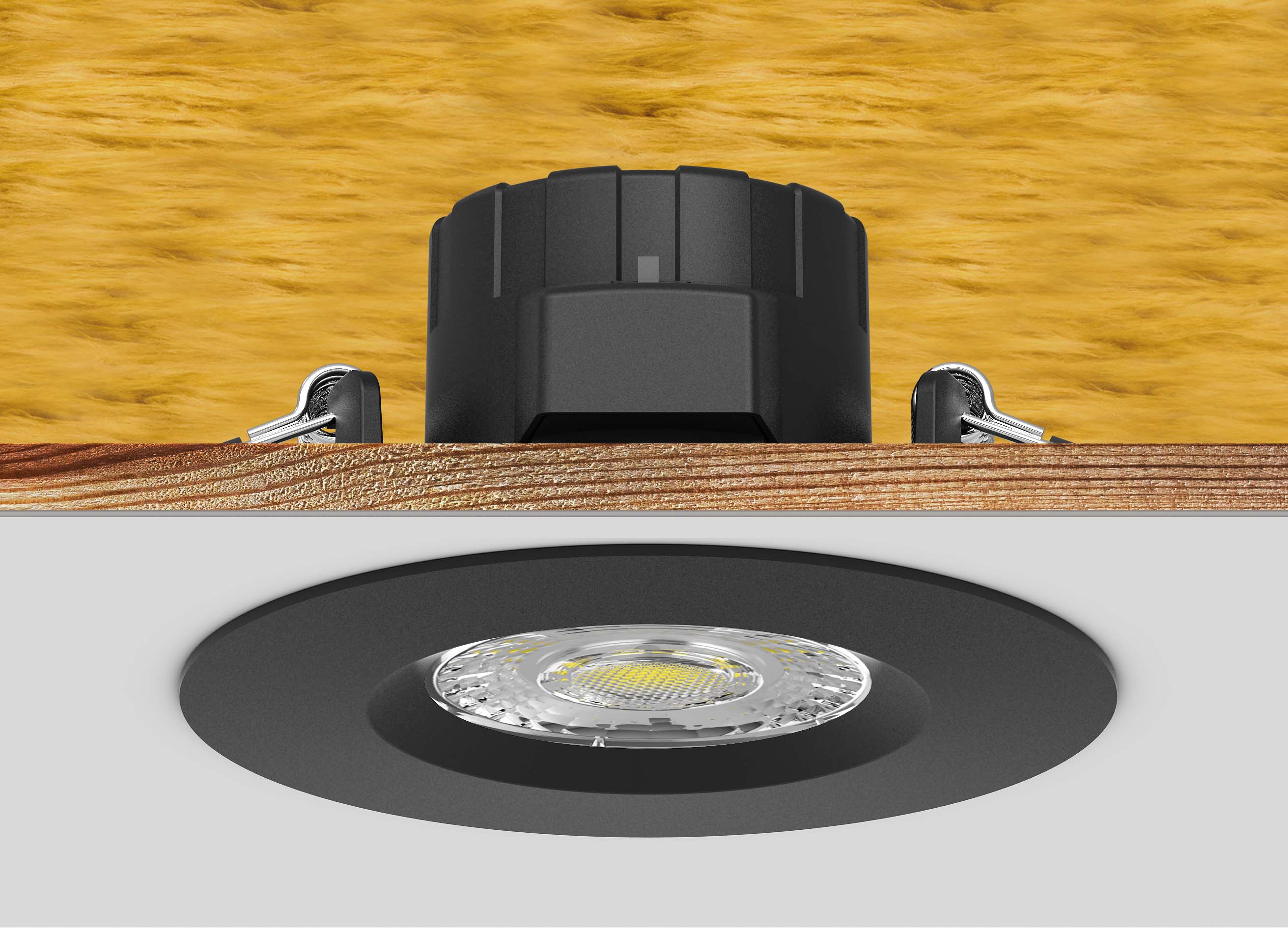

What's more, the Vila™ downlight is designed for loft insulation ceiling application, which can be directly covered the thermal insulation without any extra insulation cap, and provides an energy efficient and safe lighting installation.

Application: Downlights for loft insulation, residential buildings, office, living rooms, bathroom, houses, hotels. etc.

Specifications:

• Two version: Fixed, and Tiltable(+/-25°)
• Two different lumen output::450lm@4.5W, 700lm@6.5W; DIM-to-Warm 580lm@6W.
• Input Voltage：AC220~240V
• Power Factor：0.9
• Luminaire efficiency：110lm/W
• Color consistency SDCM：SDCM 3
• Color Rendering：82; 90 on request
• Life Time：35,000H
• Dimmable: Triac/Phase-cut

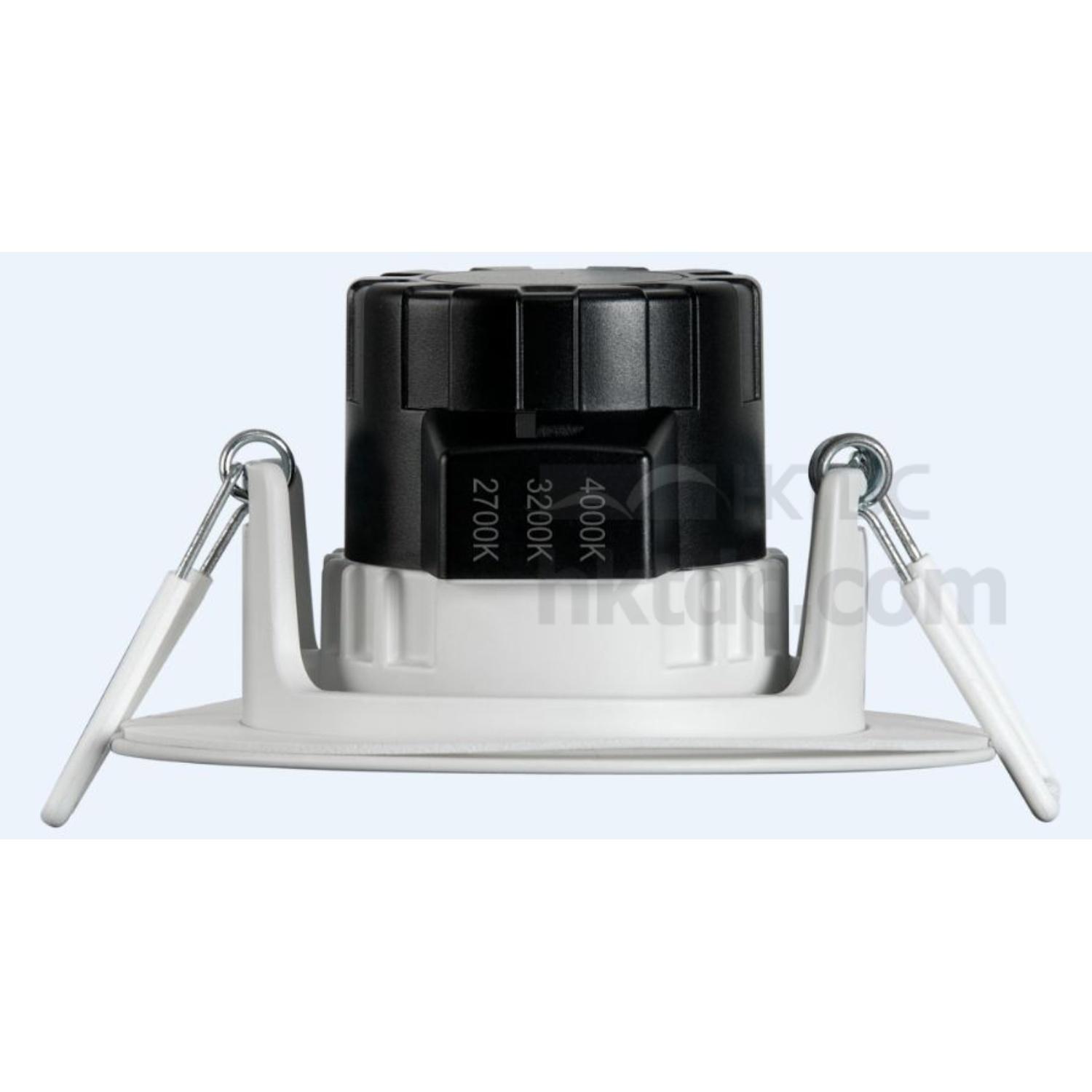

• CCT：3CCT in 1; Single CCT of 2700K/3000K/4000K; DIM to Warm 2000-3000K
• Protection Level：IP 44 in front
• Storage Temperature：-40℃~+80 ℃
• Working Temperature：-20℃~+40 ℃

More Details: http://kinglumi.com/product-1714.html

Can I put Loft Insulation over Kinglumi LED Downlights?

In order to achieve Passive House/Zero Energy Building/Part L Compliance (energy efficiency) you shouldn't cut around thermal insulation. If you do this your home or building will not be energy efficient as valuable heat will escape through the hole of the downlight. A downlight can act like a chimney and draw out warm, rising air from a room, up into the cold space above, the effect would be considerably worse in upper floors containing lofts.

This poses the question: Can I put insulation over downlights? The answer to this used be no, but Kinglumi has designed 2 series of downlight(Jupiter™, Vila™) that tested and can be covered by the thermal insulation directly, which ensures the house to have an energy efficient and safe lighting installation. The plastic housing creates a barrier between the downlight and the thermal insulation which ensure the Max. case temperature under 90°C according to EN 60598 Part 12. The insulation can then be laid over the downlight and packed to the sides if necessary.
