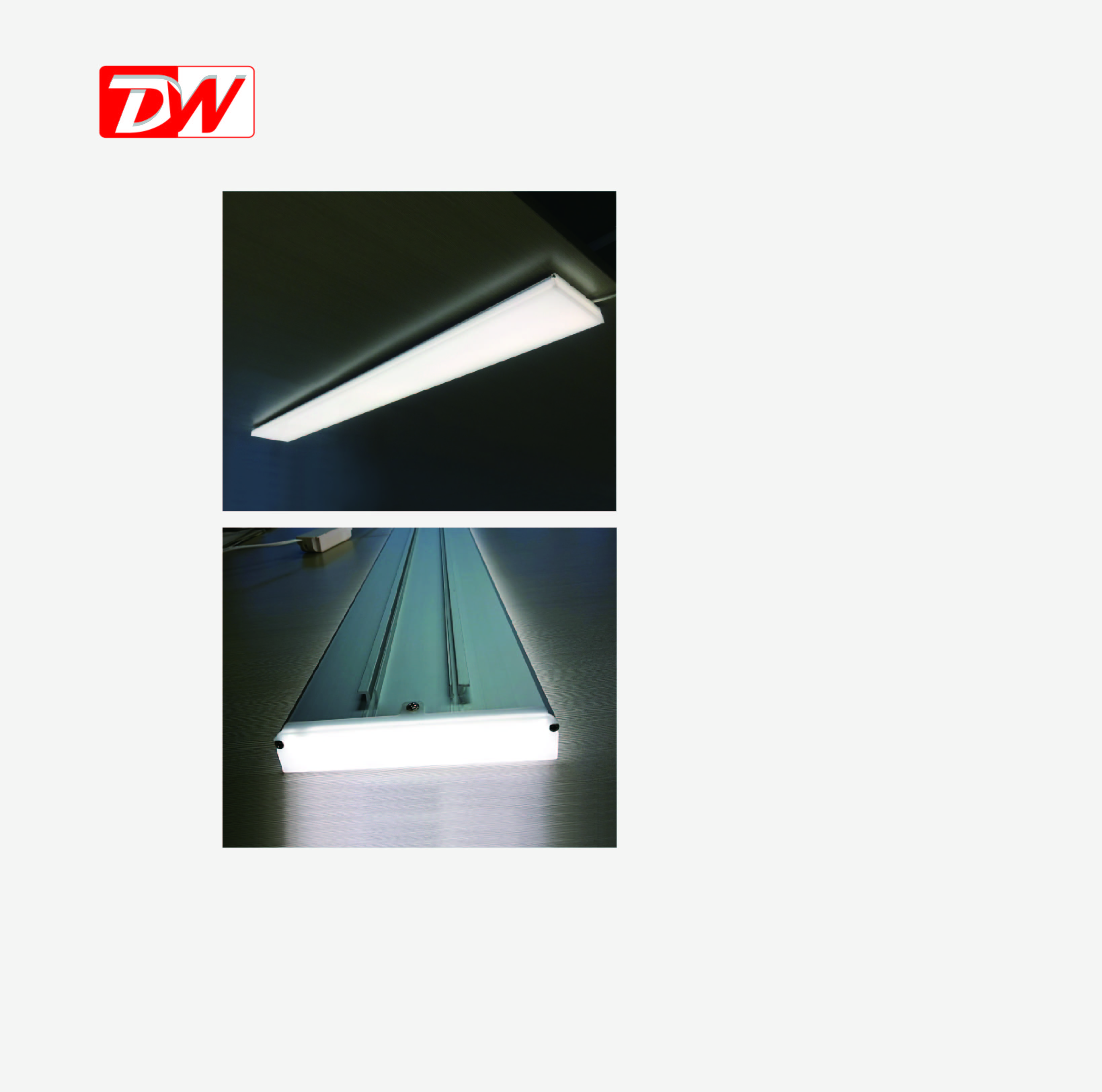

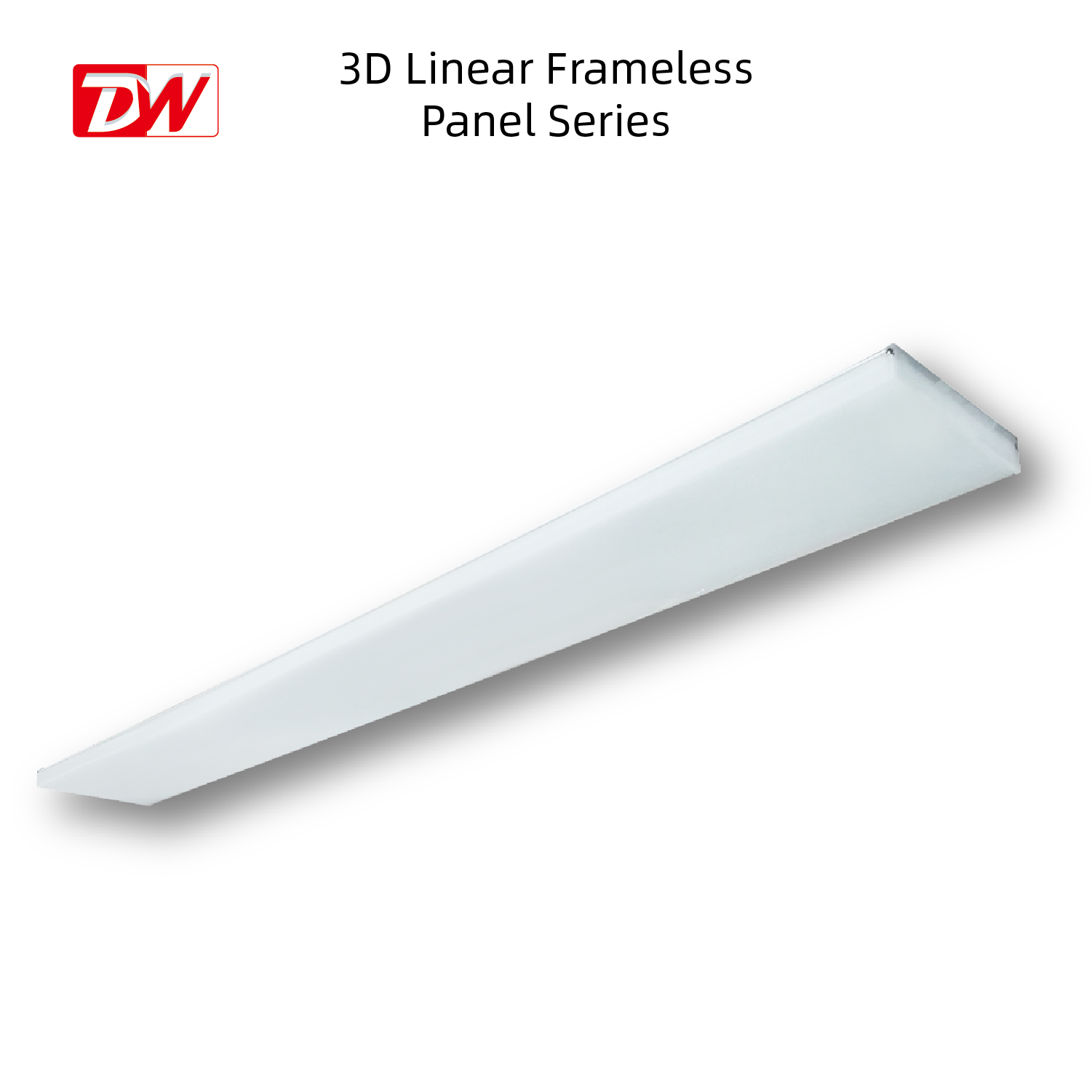

3D Linear Frameless Panel Series

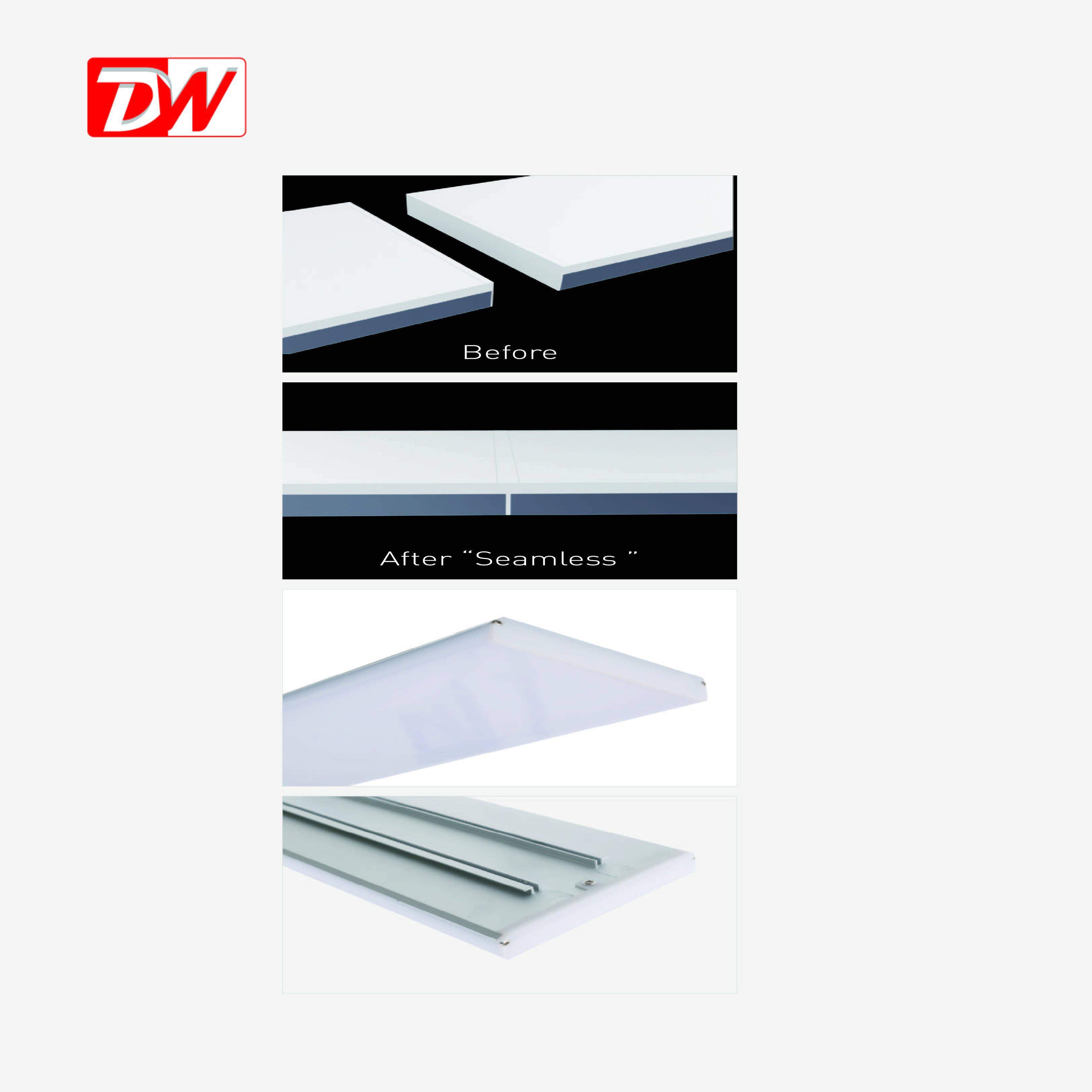

3D Frameless panel are lastest product, with perfect appearance,flat and neatly surface, the light use high lumen led chips and support sea- mless installation. It supports Various installation: Recessed,suspending,surface mount,DW track installation.And it enjoys multi application: It could used as the panel light,and also could be used to replace the traditional 145mm T-bar,It is also good choice to replace the linear light with more soft light and more elegant figure.

◈  FEATURES

This is real frameless panel!!!

Linear Linkable features enable users to expand the space, easily and install these panels as long as they want;

Pure PMMA LGP, resistant color becoming yellowing;

High efficiency:lumen output 100lm/W;

Soft and smooth light distribution;

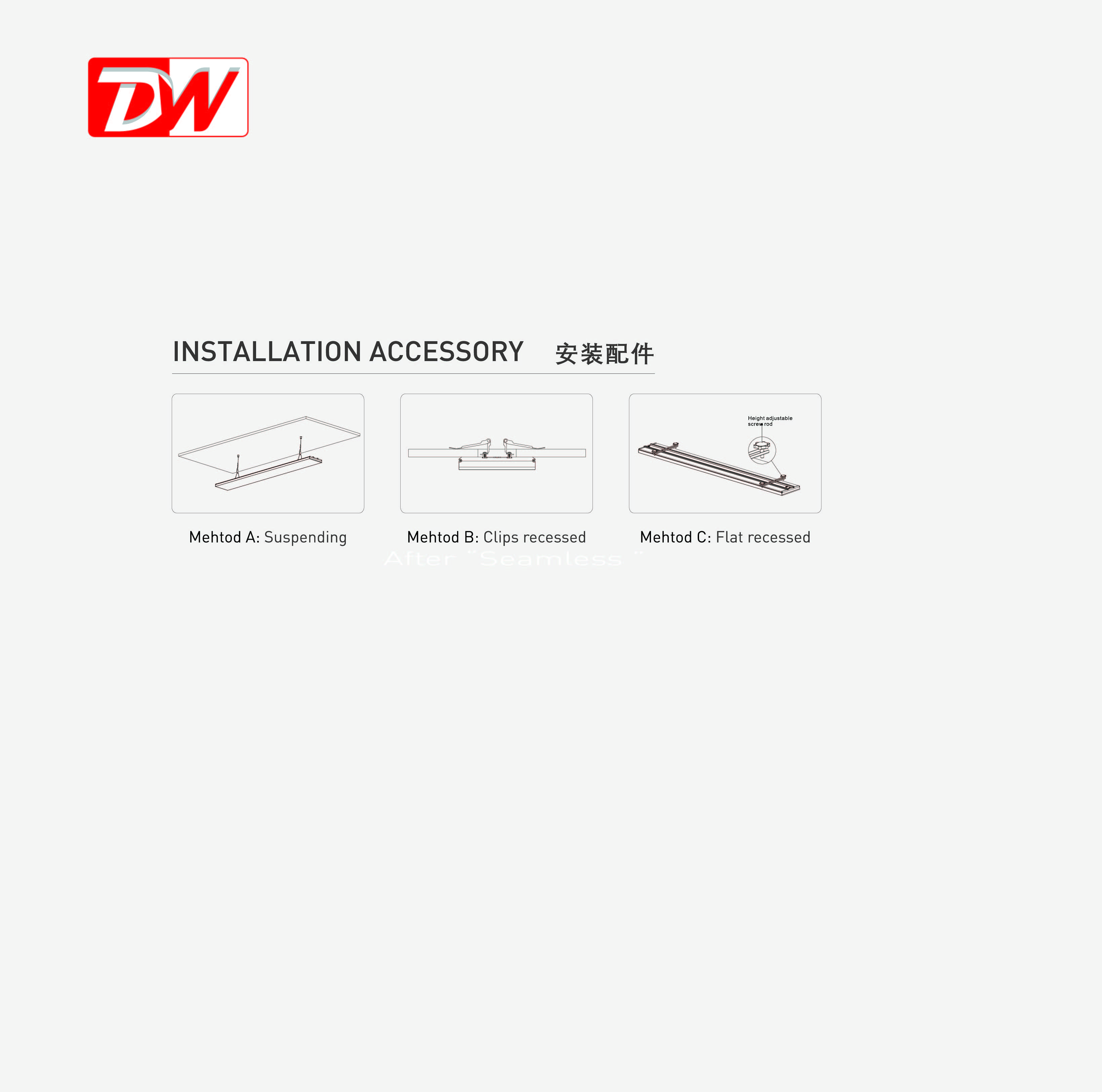

Diversified installation way: Suspending, clips recessed, flat recessed, surface mount,Tunner track installtion.

◈  ADVANTAGE

•


• TUV Listed CE, CB, and RoHS, SAA,ISO9001;

•   Linear Linkable features enable users to expand the space easily and install these panels as long as you want;

•


• High efficient lumen output to be 100lm/w;



• Same theory as standard panel is used together with innovation technology to achieve such frameless functions;

• Diversified installation way: Suspending, clips recessed, flat recessed, surface mount,Tunner track installation.

•


•


• ◈  SPECIFICATION






  3D Frameless Linear Panel Light
  Photometric Parameters
  NO.	Project	Parameter
  1	Size	145*595*30mm;145*1195*30mm;
  2	LED	High luminous flux SMD LED Samsung/Osram
  3	Luminous Efficiency	100 Lm/W
  4	CCT	3000K-6500K (warm white, natural white, cool white)
  5	CRI	≥80
  6	Beam Angle	120°
  7	LED Lifespan	≥50000 Hours
  Electrical Parameters
  8	Driver Input voltage	AC220-240V /50-60Hz
  9	OutputVoltage	DC30-40V
  10	Power Supply Efficiency	≥88%
  11	Power Factor	≥0.9
  12	Protection Class	Class II
  General Parameters
  13	Rating IP	IP40
  14	Material	Aluminum + PMMA
  15	Frame Finishing	White
  16	Installation	Recessed/Pendant
  17	Working Temperature	-20～+45℃
  18	Storing Temperature	-40～+60℃
  19	Working Humidity	15%~90%RH

• ◈  SIZE

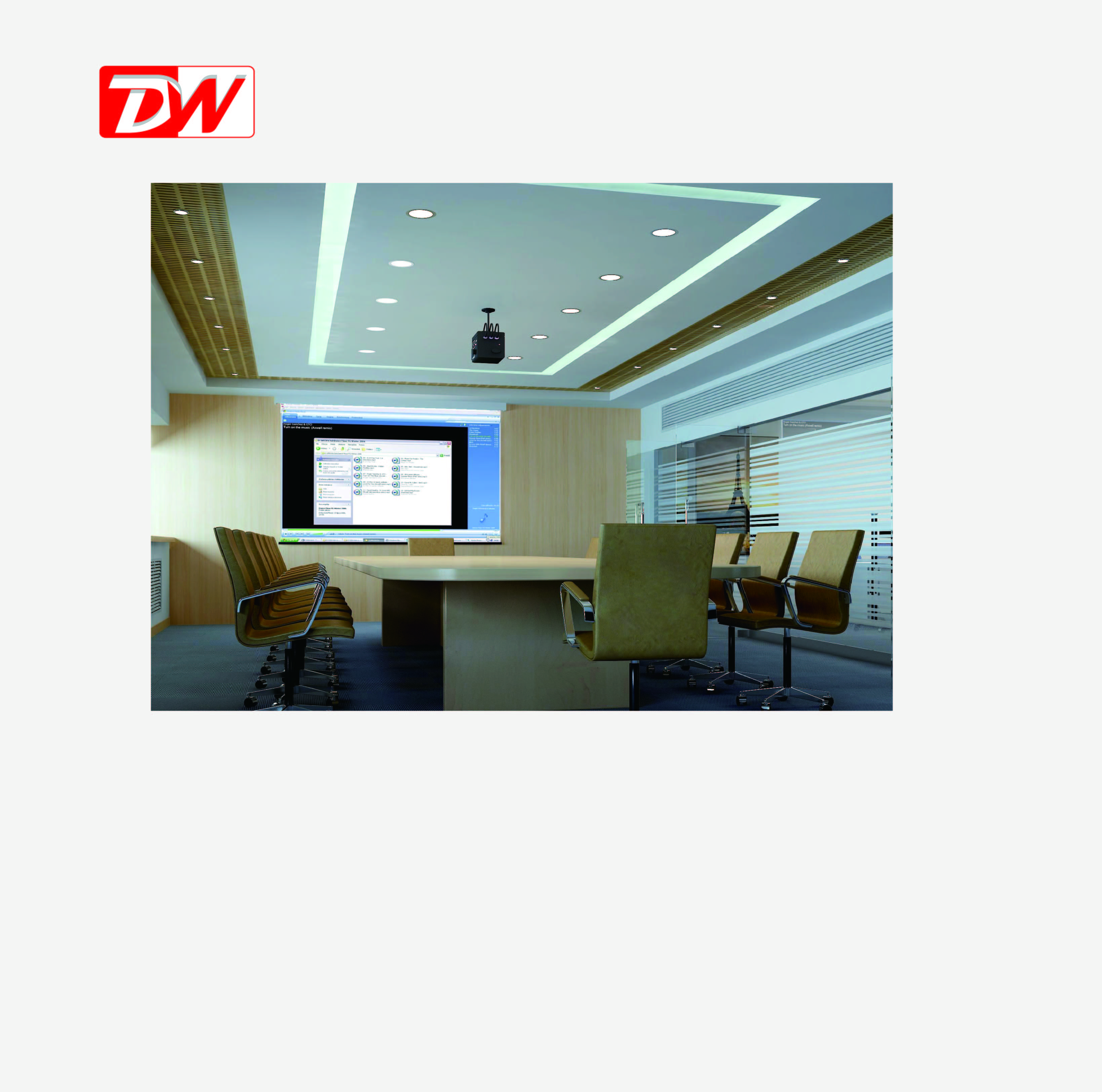

◈  APPLICATION

♦ Commercial Offices

♦ Retail / Shopping Malls

♦ Hotels Conference & Meeting Rooms

♦ Hotel & Supermarkets
