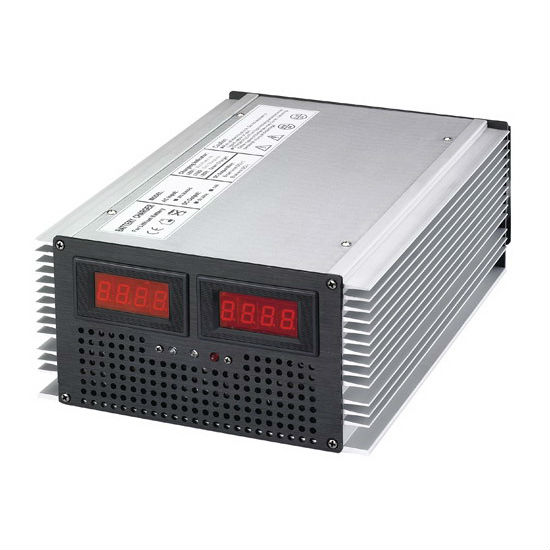

3KW LiFePO4 Battery Charger for Electric Vehicle

Model No.:

KP-L

Brand:

Kingpan

Colour:

Silver, Black

Size:

330 x 175 x 115mm

Port:

Guangzhou

Type of Payment:

T/T

Minimum Order Quantity:

1 pc

Description

Contact Supplier

3kW output, switching mode & high frequency technology.
L series (aluminum casing, with 2 cooling fans, V & C LED display).
3kW electric vehicle charger.
Model: KP-L for lithium ion, LiFePO4 battery pack.
Model: KP-L for lead acid battery.
Size: 330 x 175 x 115mm.
Net weight: 6.5kg.
Package: 4pcs/carton.

Features:

Automatic multi-charging function: CC, CV and Cut-off automatically.
Short-circuit protection: charger o/p current automatically when short-circuit.
Overload protection: charger o/p current limited automatically when overload.
Reverse polarity protection: it will shut down when the wire is connected, change DC fuse or remove the fault.
LED charging status indicator.
Output current & voltage meter.

Specifications:

Size: 330 x 220 x 116mm
Net weight: 8.5kg.
Max. wattage: 3000W.

Apply to:

Electric vehicle (EV) LiFePO4 battery back, li-polymer battery pack, lead acid battery.
KP-L for lead-acid battery.
KP-LL for Li-ion/Li-Polymer/LiFePO4 battery.
Single output from 12V (140A) to 288V (7A).
