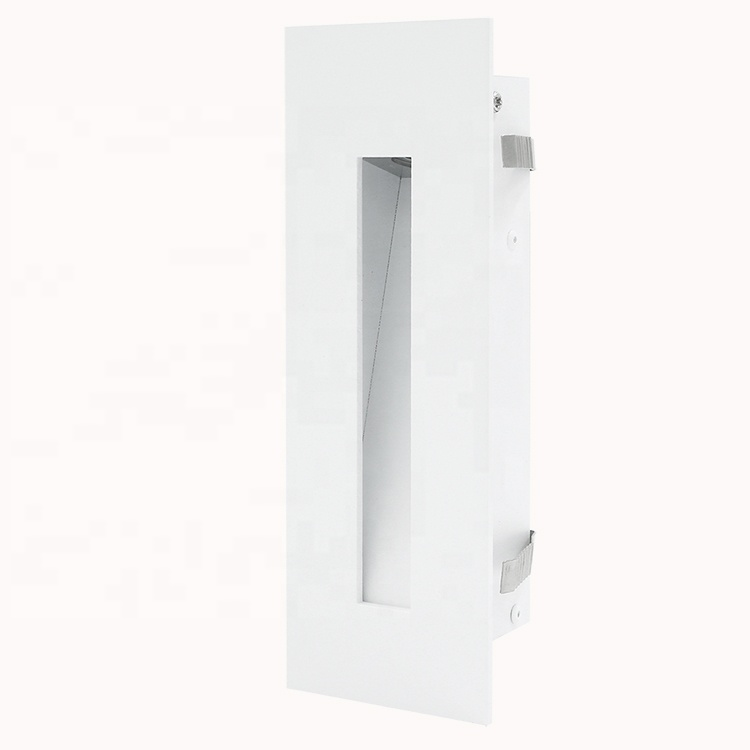

3W LED Wall Light
US $10.00 - US $100.00
Production Lead Time:
18 to 25 day(s)
Shipping Method:
Ex-works
Brand:
PLAYLITE
Model No.:
SP-007
LED Input Voltage:
DC12V/DC24V (AC100~265V optional)
Specially Design:
LED Modules Replaceable
Size:
170 x 55 x 41.5 (mm) Diameter x Width x Height
Description
Contact Supplier
Description
Product Description:
. 1 PCS 3W LED with high lumen and beautiful light output.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.30° beam angle as options
. 110-130 lm luminous flux output
.IP65 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you
General Data | |
Item No. | SP-007-0300-AH |
Power | 3 Watts |
LED type | 1 PCS 3W LED |
Luminous flux | 110-130 l m |
CCT | 2700K,3000K,4000K,6000K |
CRI | 80+ |
Beam angle | 30° |
Dimension | 170 x 55 x 41.5 (mm) Diameter x Width x Heigh |
Cut out | 158 x 50 x 68 (mm) (Length x Width x Height |
Net weight | 0.365 kgs |
Warranty | 3 years |
Certifications | CE, RoHS |
Electrical Data | |
Input voltage | DC12V/DC24V (AC100~265V optional) |
Insulation class | Class III |
Cable | 1 x cable 0.3 M H05RN-F 2x0.5mm square to open wires |
Driver | Low voltage constant current output,excluding the transformer(With separately driver for options) |
Construction Data | |
IP rating | IP65 Waterproof |
Housing | Powder coated painting in white color Aluminium |
Protection finishing | Powder coated painting in white color |
Trim | Powder coated painting in white color Aluminium or black |
Glass | Tempered glass |
Loading capacity | 320 kgs |
Cable Gland | IP65 Aluminium part |
Gasket | O-ring PMQ silicone seal |
Accessories | |
Mounting Sleeve | Aluminium box in dark grey |
