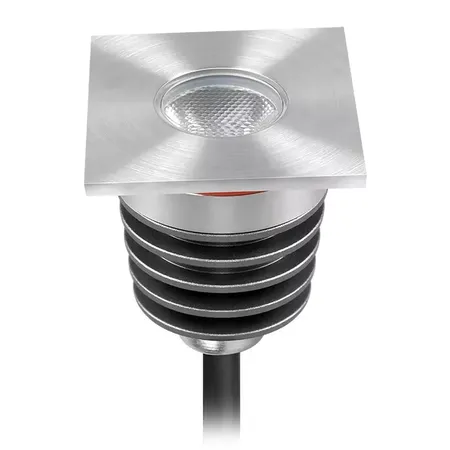

3w led recessed square inground deck light for outdoor

Production Lead Time:

15~25 day(s)

Shipping Method:

Ex-works

Brand:

PLAYLITE

Customised:

Yes

Material:

Aluminium

Is Dimmable:

Light Source:

LED

Model No.:

UL-1001-0300-B-S

Lighting Style:

Modern

Size:

Φ40x53 (mm) Diameter x length

Weight:

0.22 kgs

IP rating:

IP67

Beam angle:

10°, 15°, 30°, 45°, 60° or oval lens 10°*60°,10°*30°

Power:

3 Watts

Luminous flux:

110~130 lm

CCT:

2700K,3000K,4000K,6000K,R/G/Y/B

Input voltage:

DC 12~24V

Description

Contact Supplier

General Data
Item No.	UL-1001-0300-B-S
Power	3 Watts
LED type	1 PC 3W CREE XPE LED
Luminous flux	110-130 lm
CCT	2700K, 3000K, 4000K, 6000K, R/G/Y/B
CRI	80+
Beam angle	10°, 15°, 30°, 45°, 60° or oval lens 10°60°,10°30°
Dimension	Φ40x53 (mm) Diameter x length
Cut out	38 mm
Net weight	0.22 kgs
Warranty	3 years
Certifications	CE, RoHS
Electrical Data
Input voltage	DC 12~24V
Insulation class	Class III
Cable	1PC rubber cable 1M H05RN-F 2x1mm square
Driver	Low voltage constant current output, excluding the transformer
Construction Data
IP rating	IP67 Waterproof
Housing	Solid Passivated (Anodizing) Aluminum CNC machined
Protection finishing	20~25μm thickness anodized film for housing .Dark grey
Trim	Stainless steel 316
Glass	Step tempered Glass.T=4mm.
Loading capacity	320kgs
Cable Gland	PG7 IP67
Gasket	O-ring PMQ silicone seal
Accessories
Mounting Sleeve	Passivated (Anodizing) Aluminum CNC machined .Dark grey
Clip	With Aluminium spring that's for deck lights or ceiling lights application
Honeycomb	With honeycomb as optional
