4.3 Inch Display with CVBS Input support
Model No.:
TCon Board LVDS, Input or TTL Input to RGB Interface Timing Control Board
Brand:
MICROTECH
Size:
199.68(Diagonal)
Port:
Shenzhen
Type:
TFT - Thin Film Transistor
Description
Contact Supplier
Description

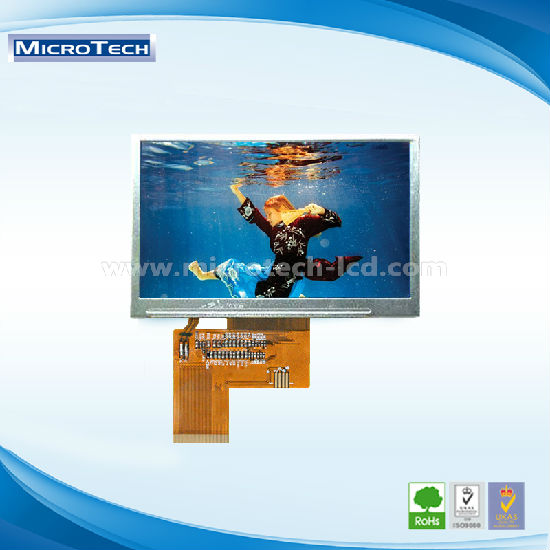

- Item: A grade 4.3 inch display support CVBS input
- Model name: KWH043ST12-F03 V.2+board
- Display mode: normally white, transmissive
- Resolution: 480 x 3 RGB x 272
- Technology type: a-Si TFT active matrix
- Pixel pitch (mm): 0.1987(H) x 0.198(V)
- Viewing direction: 6 O'clock
- Outline dimension: 105.50(W)x67.2(H)x4.2(D) mm
- Active area(mm): 95.04(W)x53.856(H) mm
- Interface: RGB 24bits
- Flat cable connector type, with 40 Pins
- Color configurtionR.G.B-stripe
- Backlight: 7 white LED in serial
- Operating temperature: -20~70°C
- Storage temperature: -30~+80°C
- Touch panel: with
- Application: GPS, camera, other electronic products, etc. for more details!
