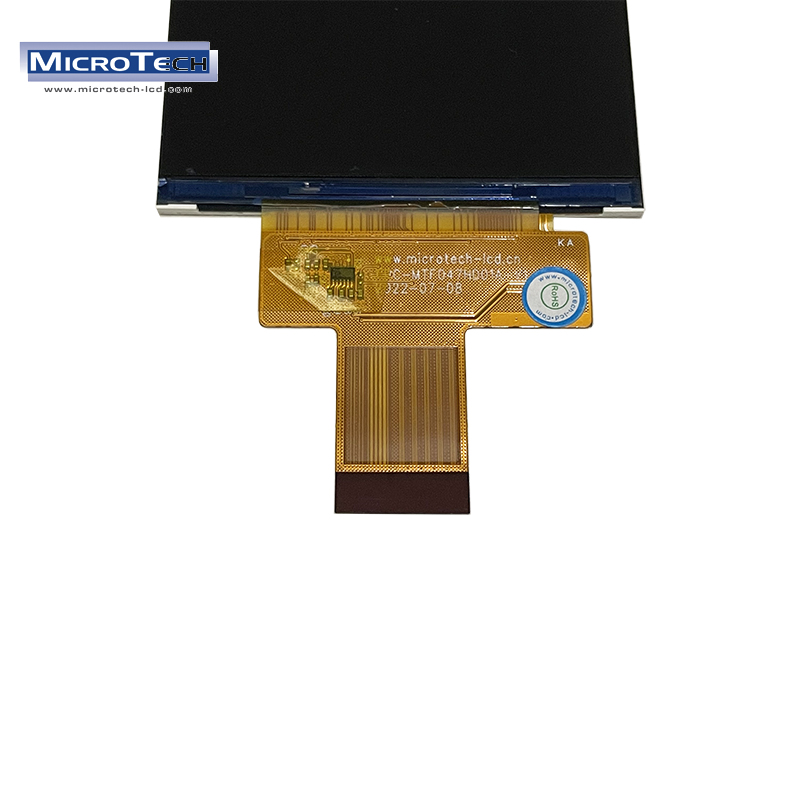

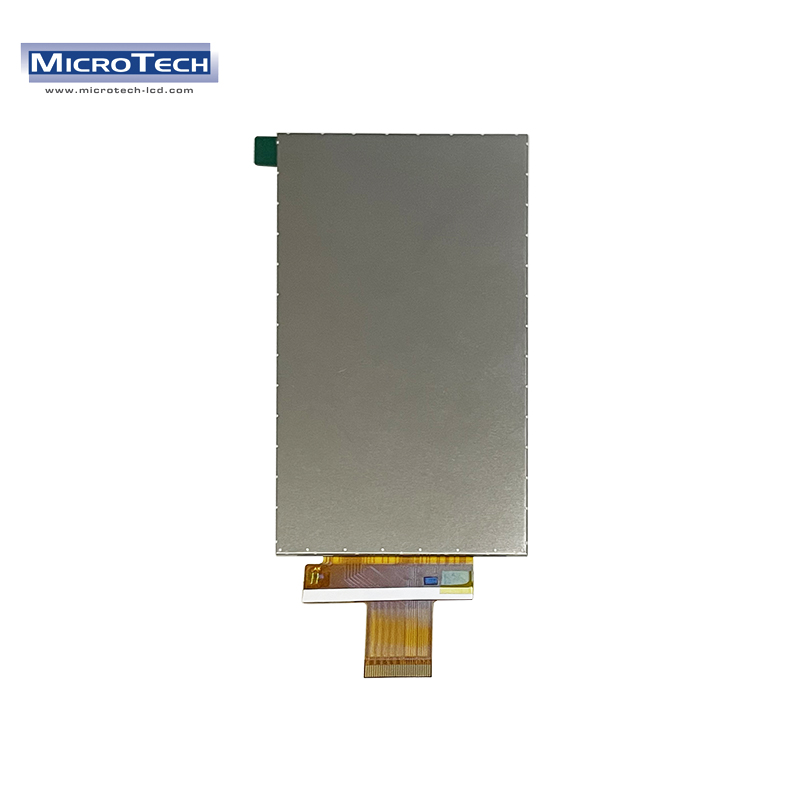

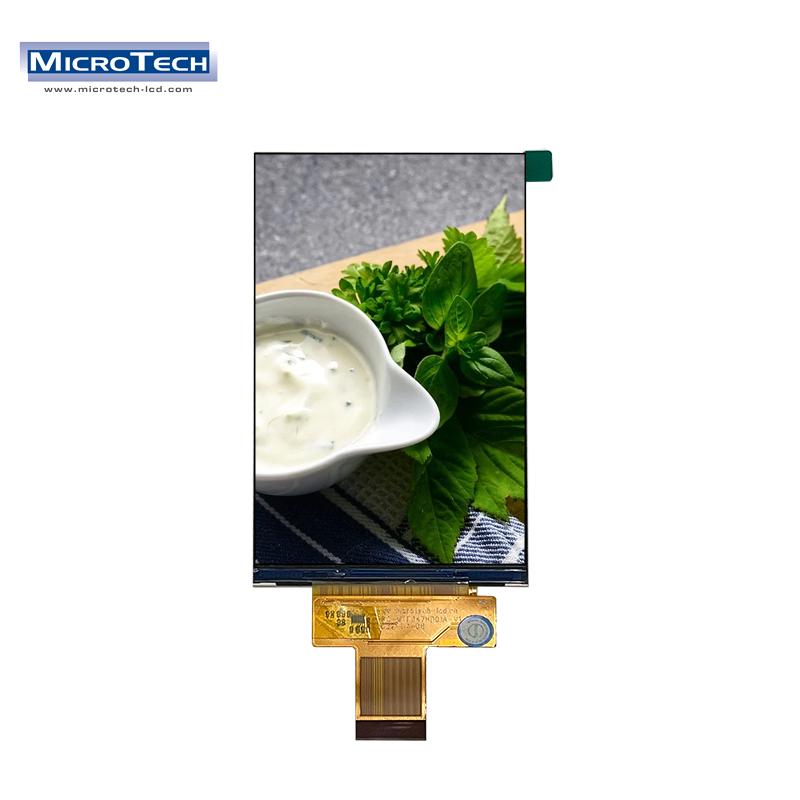

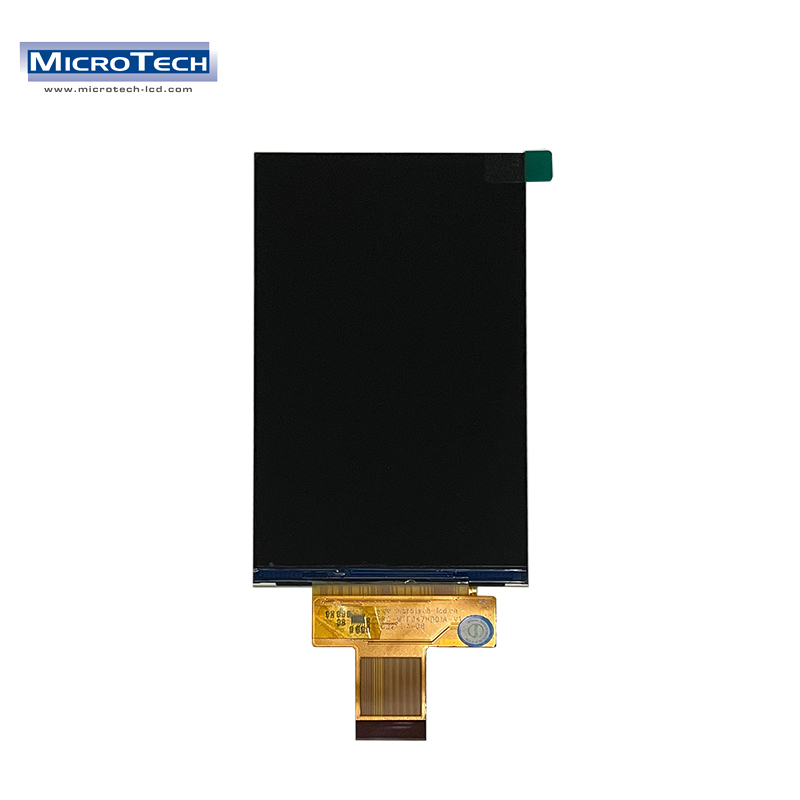

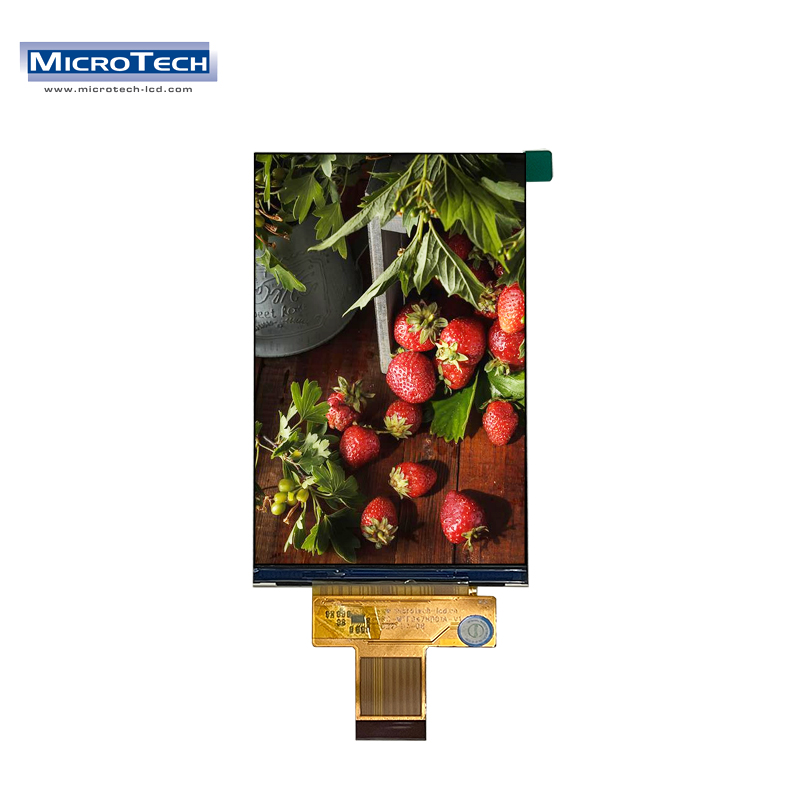

4.7 inch TFT LCD module 720*1280 IPS four channel 450Nits MIPI interface LCD Screen

US $8.00 - US $25.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTF047HD01A-V1

Customised:

Yes

Size:

4.7 inch

Description

Contact Supplier

Feature		Spec
Display Spec.	Size	4.7 inch
	Resolution	720(RGB) x 1280
	Technology Type	a-Si
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(mm)	0.0269(W)* 0.0807(H)
	Display Mode	Normally Black
	LCM Luminance	450 Cd/m2
	Viewing Direction	ALL
Mechanical Characteristics	Module (W x H x D) (mm)	60.50x110.85x1.65±0.10mm
	Active Area(mm)	58.10x103.30mm
	Matching Connection Type	FPC
Electrical Characteristics	LED Numbers	12LEDs
	TFT Interface	MIPI
	Display color	16.7M
	LCD Driver IC	ST7703D

Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
