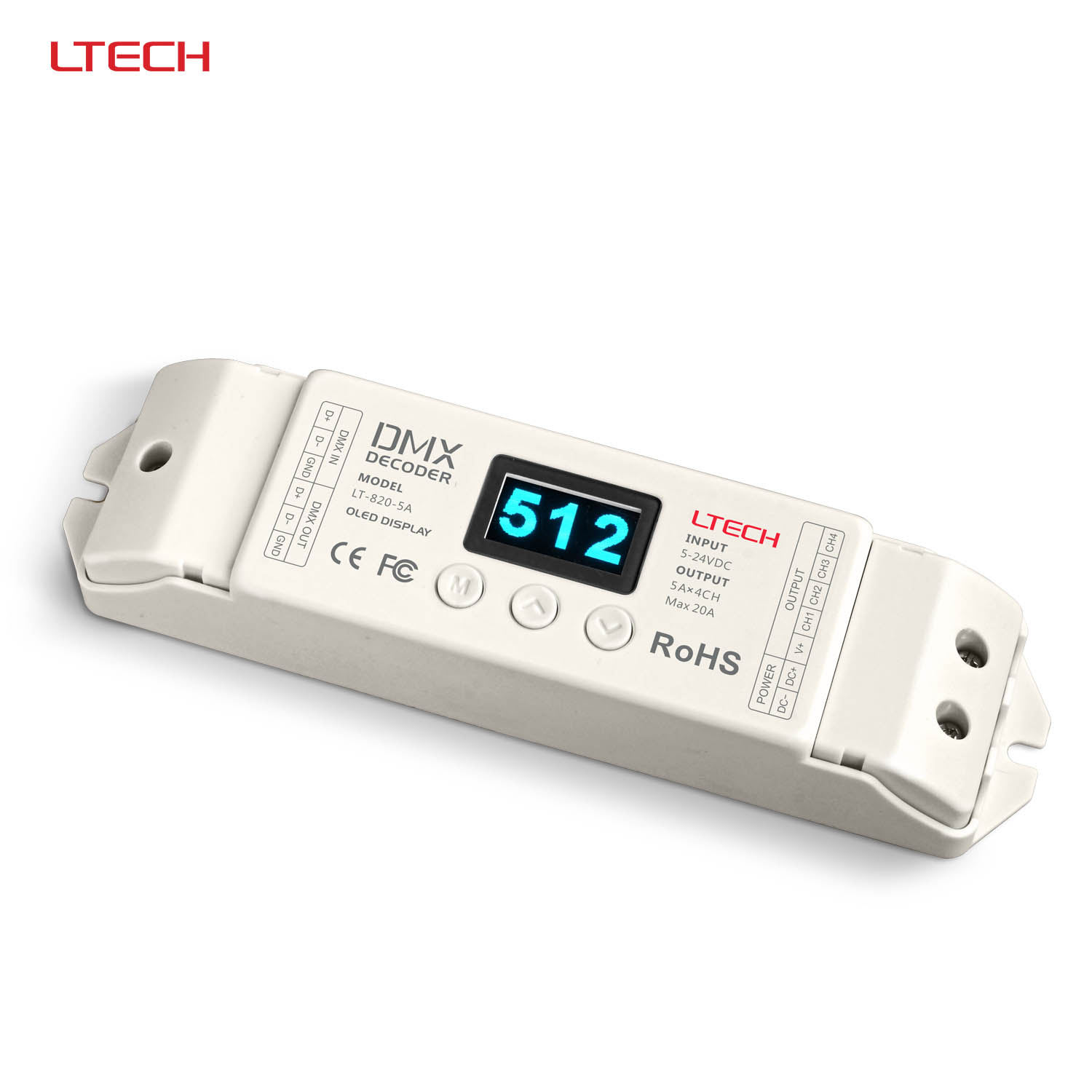

4 Channels DMX/RMD LED Decoder

Brand:

LTECH

Certification:

CE, EMC, FCC, LVD, RoHS

Warranty:

5 Years

Output Voltage(V):

5-24

Input Voltage(V):

5-24

Input Signal:

DMX512

Output Signal:

PWM

Description

Contact Supplier

16bit/8bit input 65536 grayscale/CH
OLED Real-time Display
3 dimming curve optional
Frame rate as high as 850FPS
Built-in protection circuit of resistance to lighting stoke and ESD static electricity
Input signal DMX512
Input power DC5V--DC24V
Max load current 5A ×4CH
Max 20A
Max output power 100W/240W/480W/(5V/12V/24V)
Dimming range 0--100%
Working temperature -30--55 degree centigrade
Dimension L175×W44×H30(mm)
