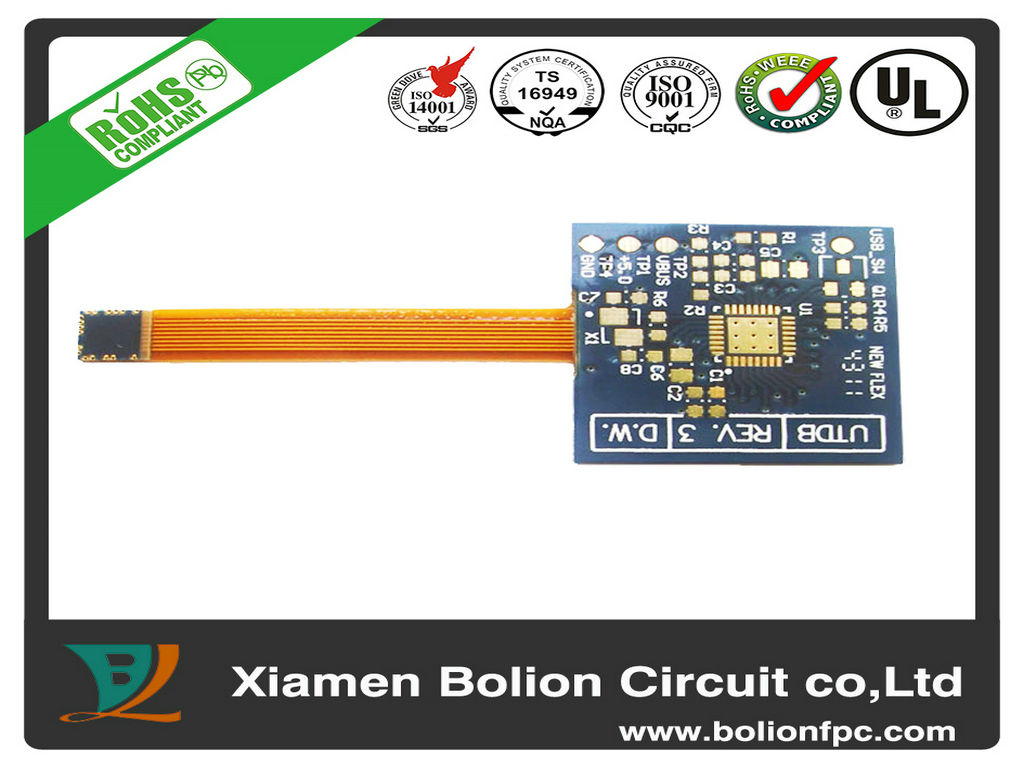

4 Layers with Enig Surface Treatment Rigid-Flex PCB
Model No.:
R9442
Brand:
BOLION
Size:
30 X 23.5mm
Port:
XIAMEN
Type of Payment:
T/T, L/C
Minimum Order Quantity:
1
Package:
Yes
Customised:
Yes
Board Thickness:
0.5mm
Min. Line Spacing:
0.2mm
Min. Line Width:
0.2mm
Base Material:
copper
Copper Thickness:
0.3mm
Surface Finishing:
Immersion Gold
Through Hole Type:
Pin Tthrough Hole PCB
Description
Contact Supplier
Description
R9442
For Medical Device
Layers: 4
Materials: 1.4-mil CU/0.8-mil ADH/1-mil PI double-sided electrolytic copper, 0.3mm copper
Cover layer: 1-mil ADH/1-mil PI
Stiffener: Prepreg
Thickness: 0.5mm
Surface treatment: ENIG, (Au:0.03 to 0.09um, Ni: 3 to 9um)
Dimensions: 30 x 23.5mm
Width/space: 0.2/0.2mm
For Medical Device
Layers: 4
Materials: 1.4-mil CU/0.8-mil ADH/1-mil PI double-sided electrolytic copper, 0.3mm copper
Cover layer: 1-mil ADH/1-mil PI
Stiffener: Prepreg
Thickness: 0.5mm
Surface treatment: ENIG, (Au:0.03 to 0.09um, Ni: 3 to 9um)
Dimensions: 30 x 23.5mm
Width/space: 0.2/0.2mm
