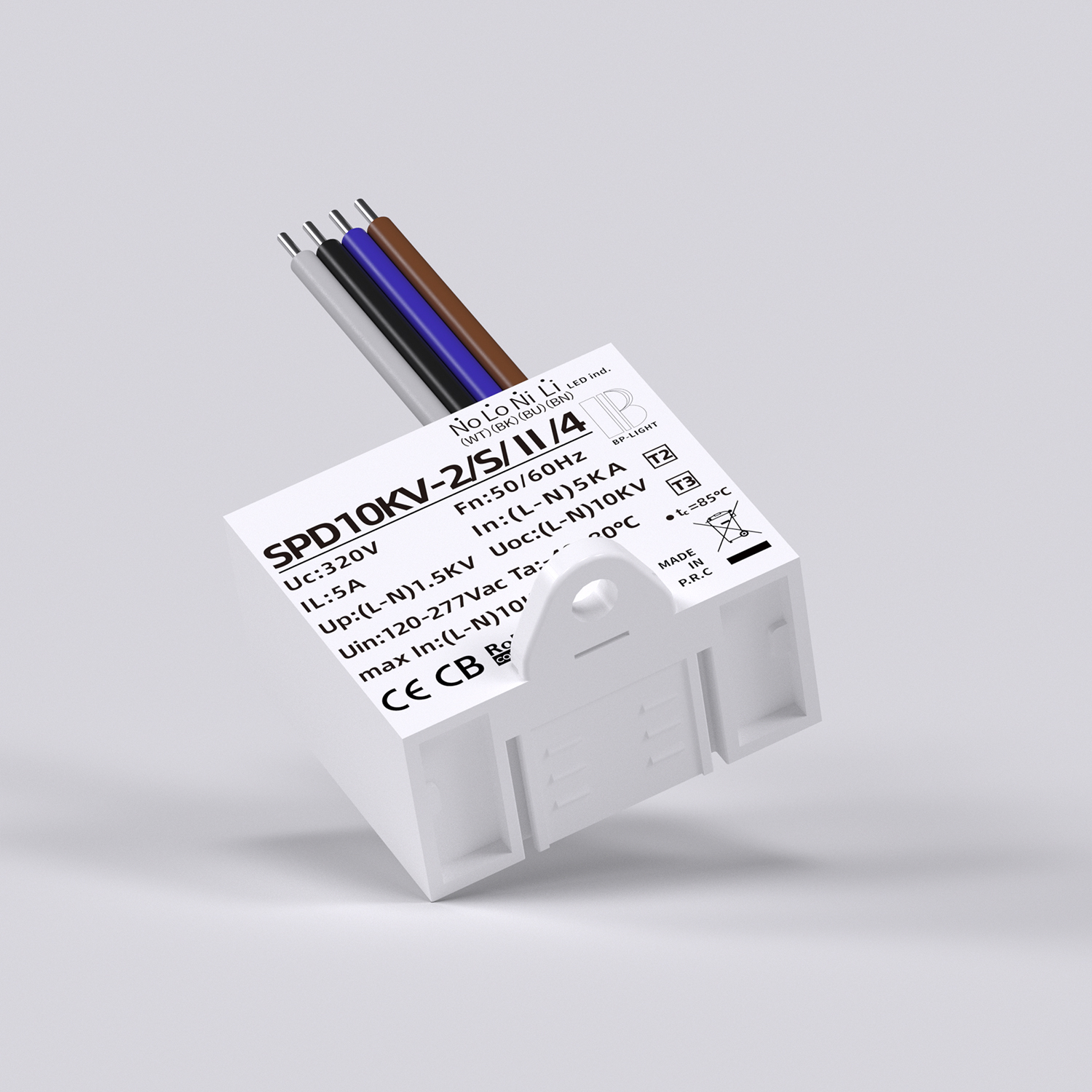

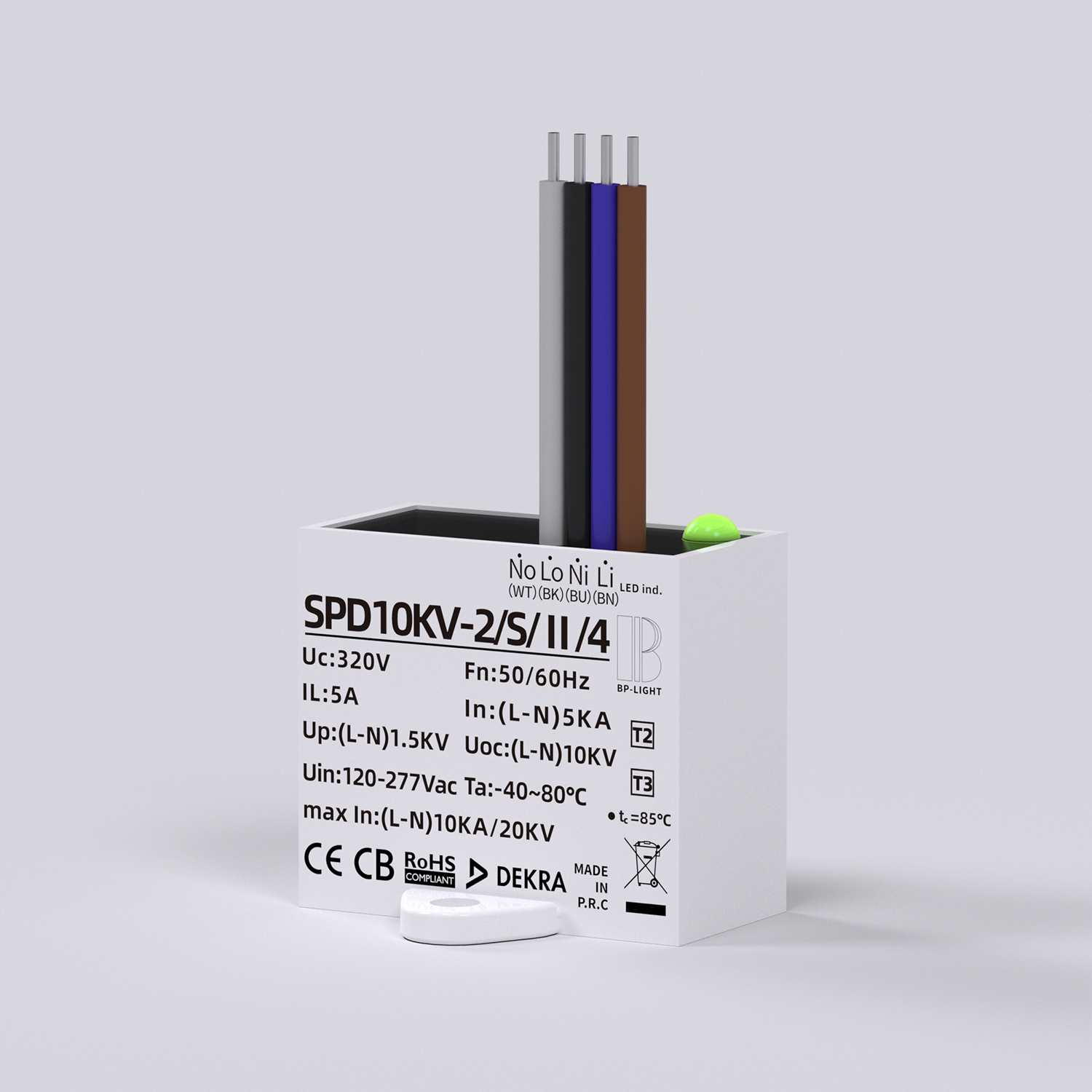

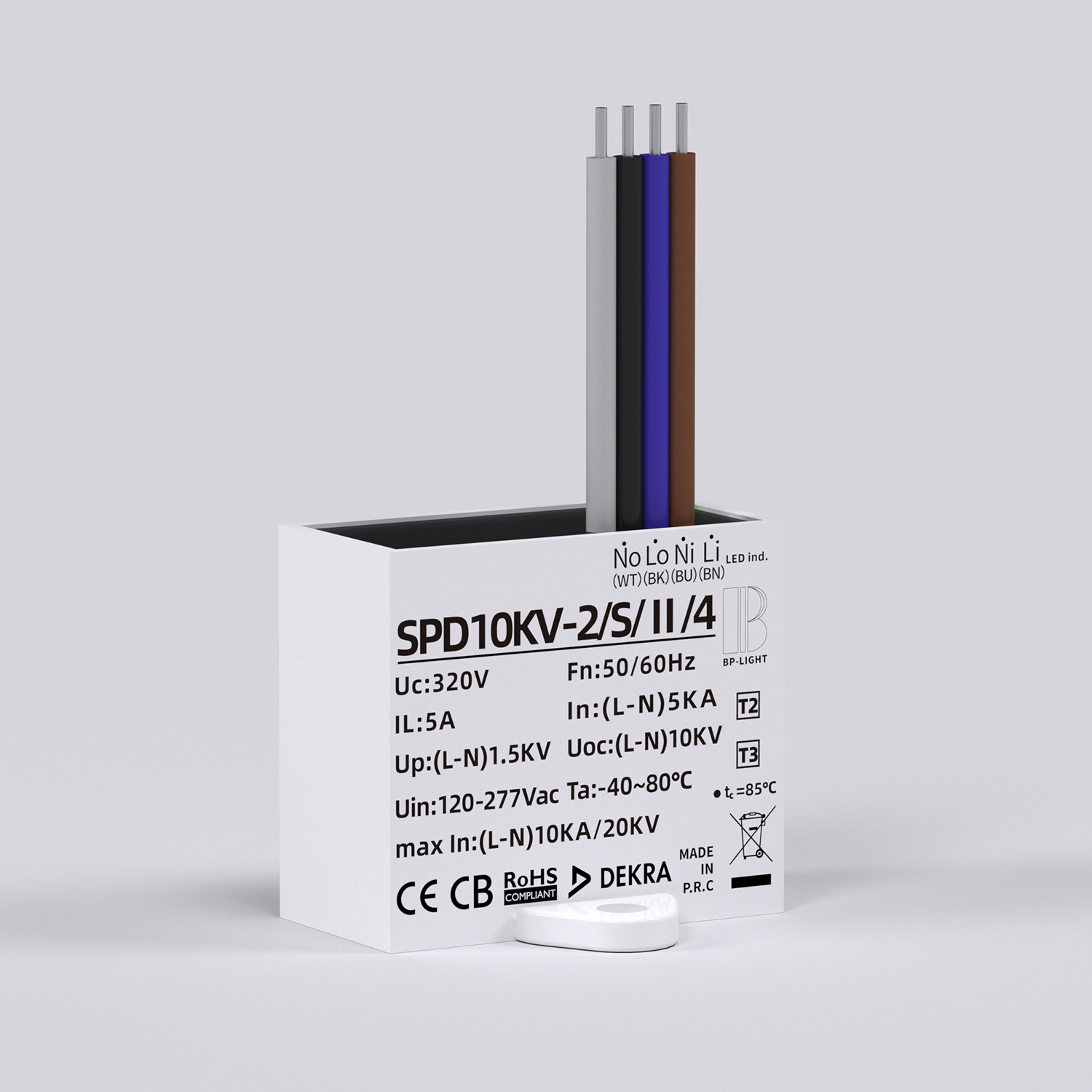

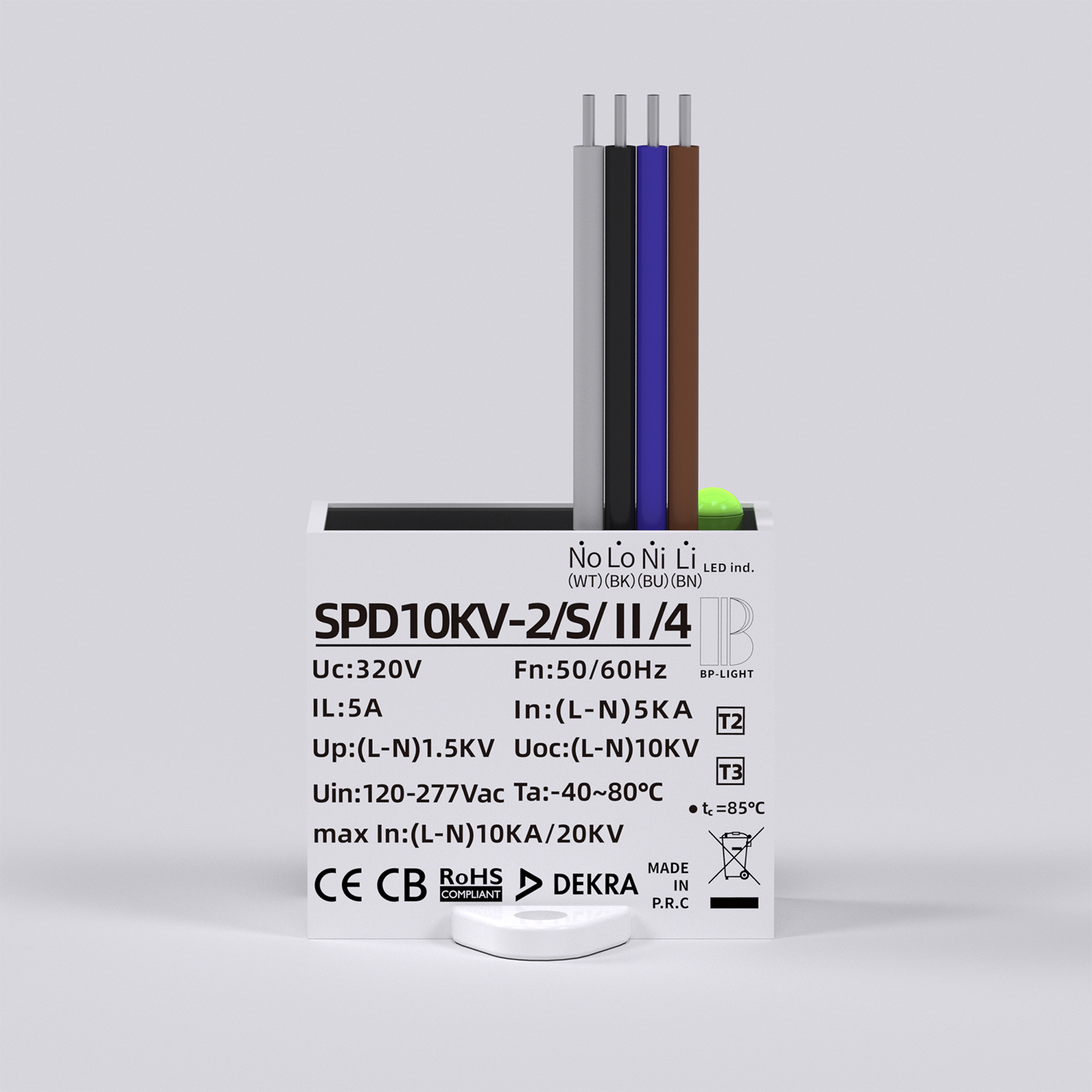

4-wire series connection, IP67 waterproof Class II LED SPD 10kV surge protector device
Brand:
BP
Model:
BP-SPD10KV-2/S/II/4
Applicable luminaires:
Class II luminaire
Certifications:
CB, CE, RoHS
Connection:
Parallel
IP Rating:
IP67
Max Discharge Current:
10KA
Nominal Discharge Current:
5KA
Max input voltage (Un):
220-240V
SPD Category:
SPD
Description
Contact Supplier
Description
10kV LED Class II surge protector, designed for protecting Class II luminaires, compliant with IEC 61643-11 and EN 61643-11 standards, supplied with CE and CB certificates, with 10kV / 5kA surge protection rating.
- 10KV /5KA
- type 2 /type 3
- IP67
- Class II
- CECEROHS
KEY FEATURES
✓Maximum continuous operating voltage (AC) Uc (L-N) V]：320
✓Nominal voltage AC 50-60 Hz - Un V]：230/400
✓Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
✓Nominal discharge current (8/20)- In (L-N) [kA]：5
✓Max Discharge Current (8/20) - Imax (L-N) [kA]：10
✓Rated current load - IL [A]：5
✓Voltage protection level at In - Up (L-N)[kV]：1.5
✓Open circuit Voltage(L-N)[kV]：10
✓Short-circuit Current rating-Isccr [A]:300
✓Response time tA (L-N) [ns]：≤25
✓TOV Ut 5s (LV systems, withstand) V]：337
✓TOV Ut 120min (HV systems, withstand) V]:442
✓Dynamic thermal disconnection：Yes
APPLICATIONS
✓Outdoor Road Lighting
✓Tunnel & Underground Traffic Lighting
✓Landscape Lighting & Outdoor Signage
✓Outdoor Lighting for Industrial Plants
✓Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
