Characters:

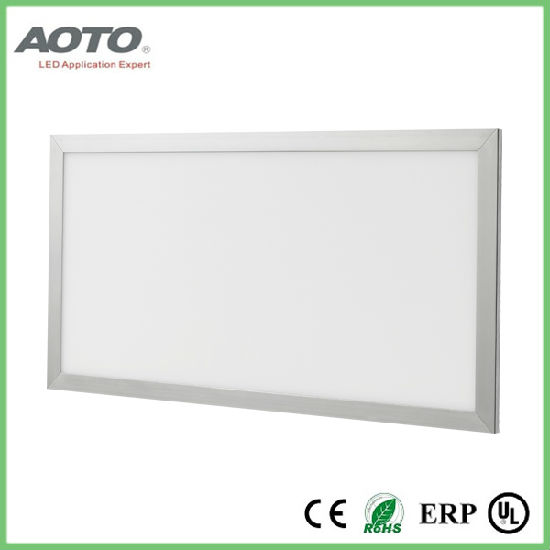

★ Ultra-thin, the thickness is 13mm, edge-lighting.
★ Optimum light uniformity and high color homogeneity
★ LED Source: high brigntness SMD 2835
★ Luminous efficiency: 85lm/W
★ Beam angle: 120dg
★ Lifespan: 50000hrs
★ Installation: Embeded, Suspended, Mounted.
★ Standards: CE, RoHS approved, UL/ DLC/ FCC are in applying.
★ Heat dissipation: Aluminum PCB and aluminum housing ensure excellent heat dissipation.
★ Optional dimming: Infrared,0-10v,DALI.
Application:
1. Commercial lighting: high-class stores, shopping malls, hotels, restaurants, airport.
2. Office lighting: Conference, Factories, offices.
3. Institution Buildings: schools,hospitals, pharmacy.
Item No. AT-SPL-S0306S3-040
Electrical Paremeters:
Power 40W
Input Voltage AC100-240V (50/60Hz)
LED style 192 pcs SMD 2835
output current 900mA
output voltage 42V
Power Factor ﹥0.9
Opticall Paremeters:
Luminous output 3200lm@3000K, 3400lm@4000K, 3400lm@6000K
Color Temp (CCT) 3000K/4000K/6000K
Color Rendering ﹥80
Beam Angle 120dg
Uniformity ﹥90%
Physical Parameter :
Material Aluminium+(Optical)PMMA
Lighting method Edge-lit
Power supply External driver (included)
Operation Temperature -20°C ~ +45°C
Storage Temperature -25°C ~ +55°C
Protect Level IP20
Certificate CE, RoHS
