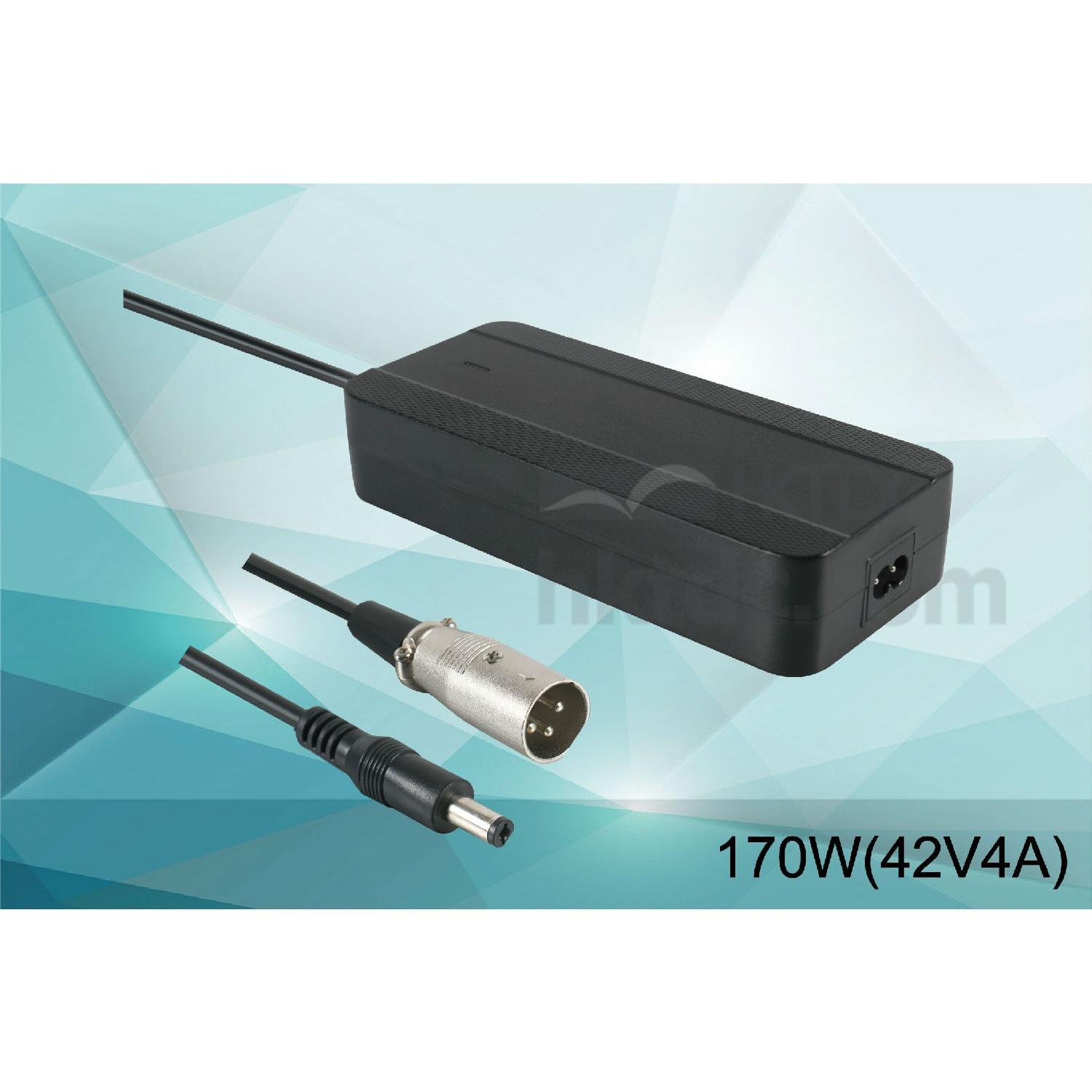

42V4A Li-ion Battery Charger
Production Lead Time:
14 day(s)
Model No.:
42V4A
Brand:
Modiary
Colour:
Black
Size:
179X80X38mm
Port:
Shenzhen
Type of Payment:
T/T in advance
Minimum Order Quantity:
500
Description
Contact Supplier
Description
Specifications36V Cleaning Equipment Charger 42V 4A
1.Pre-charge-CC-CV
2.LED
3.Reverse polarity protection
4.CE, GS, RoHS
Technical data
Max. Output power: 180W
Input voltage: 100-240V AC
Max. output voltage: 42V
Max. output current: 4A
Line frequency: 50-60Hz
Efficiency(at 100% load): >=80%
Ripple: <=1%*Vo
Temperature range: <65%
Protection
Short circuit protection
Over voltage protection
Over current protection
Reverse prevention
Pre-charging function
Environmental specification
Operation temp: -5C to 45C at maximum load
Storage temp: -20C to 70C
Humidity ≤ 93%
General specifiation
Dual-color indicator: Charging: red / fully charged or no load: green
Reliability specification
Safety approval
CB CE UL etc
1.Pre-charge-CC-CV
2.LED
3.Reverse polarity protection
4.CE, GS, RoHS
Technical data
Max. Output power: 180W
Input voltage: 100-240V AC
Max. output voltage: 42V
Max. output current: 4A
Line frequency: 50-60Hz
Efficiency(at 100% load): >=80%
Ripple: <=1%*Vo
Temperature range: <65%
Protection
Short circuit protection
Over voltage protection
Over current protection
Reverse prevention
Pre-charging function
Environmental specification
Operation temp: -5C to 45C at maximum load
Storage temp: -20C to 70C
Humidity ≤ 93%
General specifiation
Dual-color indicator: Charging: red / fully charged or no load: green
Reliability specification
Safety approval
CB CE UL etc
