Features:

• Wide range of AC input voltage 100 - 264V AC
• Suitable for medical equipment up to class BF
• 9V to 54V outputs, up to 48W
• Protection against: short circuit, over voltage, overload protection
• Medical safety standard, meets Energy Star VI CoC V5 Tier 2 (2016)

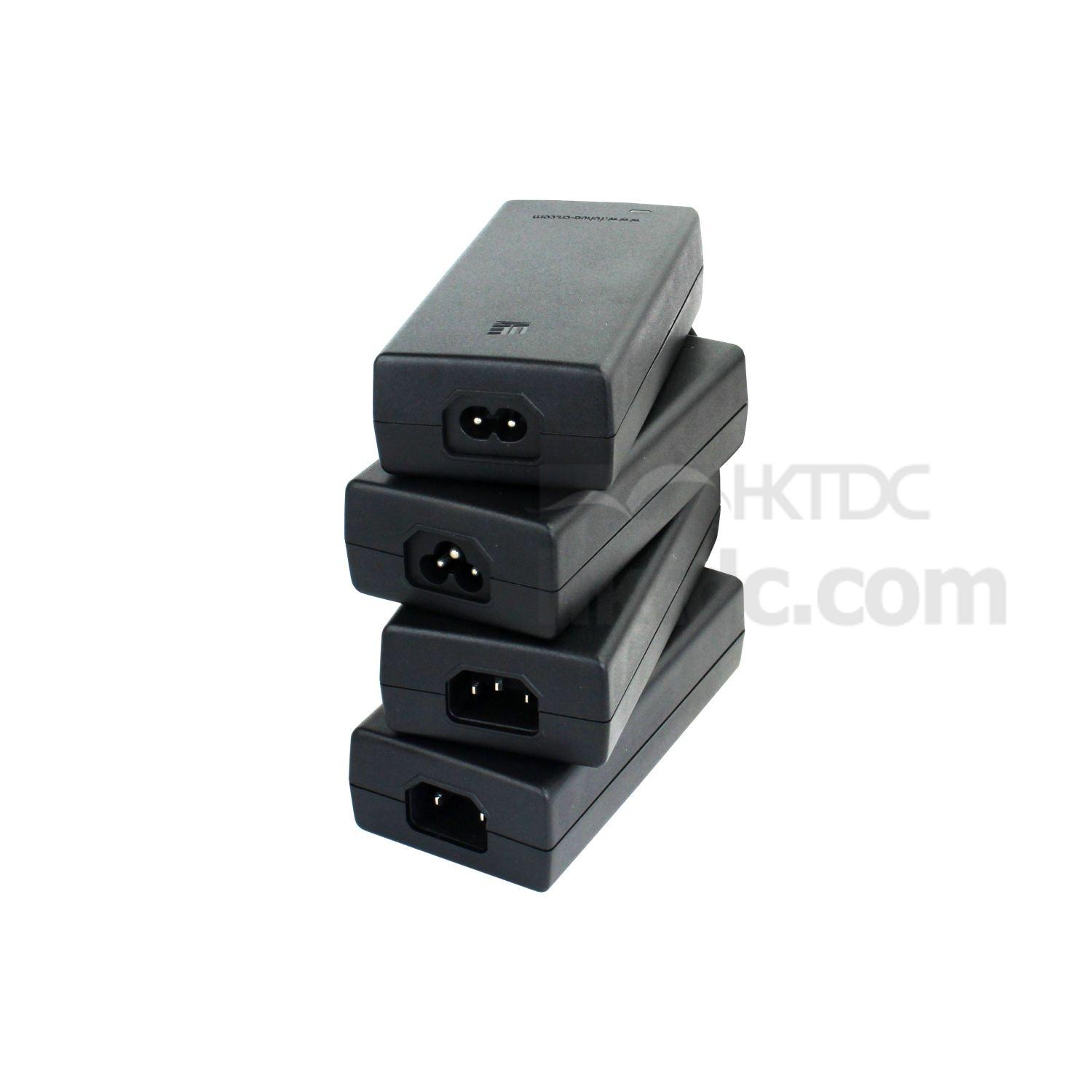

• 4 types of AC inlet

Electrical specifications:
Input voltage range: 100-264VAC
Frequency range: 50-60Hz
Input current: 1.1A at 90VAC
Standby power: 0.075W
Touch leakage current: Class I & Class II ≤50μA at 264VAC
MTBF: 190,000 hours at maximum load levels and an ambient temperature of 25°C (in correspondence with MIL-HDBK-217)

Environmental parameter:
Operating temperature: -10°C to 40°C
Storage temperature: -20°C to 70°C
Operating humidity: 10% to 90% RH
Storage humidity: 5% to 90% RH
Operating altitude: 3,048m

General:
Dimensions: 122 x 51 x 31.5mm
Weight: 300g
Isolation:
4,000VDC Input to output
2,000VDC Input to ground (Class I version only)

Safety approval:
cULus (ITE UL60950-1, UL62368 & medical ES60601-1), TUV-GS (ITE EN60950-1, EN62368-1& medical EN60601-1), CB report (ITE IEC60950-1, IEC62368-1& medical IEC60601-1), CE, CCC (ITE GB4943)
