4G LTE-A CAT7 Outdoor CPE 4 x 4 MIMO
Production Lead Time:
56 day(s)
Model No.:
AM6300
Brand:
Jaton
Colour:
Gray
Size:
250mm(L) x 250mm(W) x 75mm(D)
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
500
Modem Function:
Yes
Function:
Firewall, QoS, VPN, VOIP
Package:
Yes
Customised:
Yes
Type:
Wireless
Products Status:
Stock
Wireless Protocol:
802.11b, 802.11g, 802.11n, 802.11ac
Max. LAN Data Rate:
300 Megabit per second (Mbps)
LAN Ports:
1
WAN Ports:
1
Description
Contact Supplier
Description
- AirMaster 6300D is highly advanced TD-LTE CAT7 outdoor data unit specially designed to meet the most challenging demands of today’s high speed wireless backhaul and fixed wireless access deployments by the 4G service operators. The unit can support multiple TDD band operations. Multiple operator network support can also be provisioned on the unit to allow the deployment across entire country with different operators.
- AirMaster 6300D provides Gigabit PoE connection to connect user terminal device such as router or Wi-Fi AP products. The unit PoE interface can alsowork with standard PoE switches or router products. The product comes with PoE power adapter and mounting bracket accessories for quick self-installation.
- Cost effective & compact design with built-in LTE MIMO antennas.
- Compliant to 3GPP LTE Release 10
- Advanced 4x4 MIMO, DL & UL CA, and UL QAM64 support (CAT7)
- Router, bridge and by-pass networking, IPv4 & IPv6 and Multiple PDN support
- USIM card authentication support
- Secure Telnet, FTP, HTTP and TR069 OTA management support

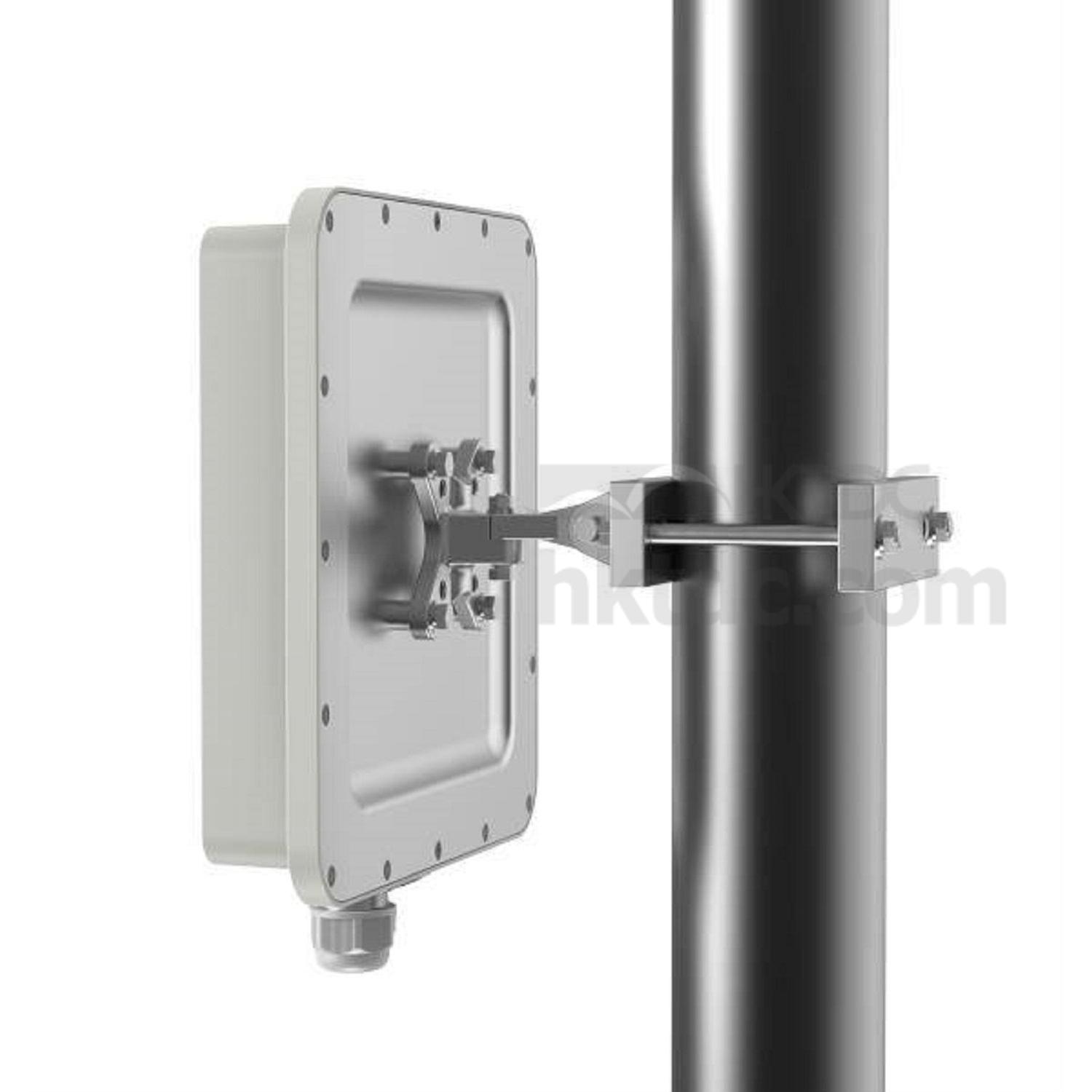

- 48V Gigabit PoE power supply and pole or wall mounting support
