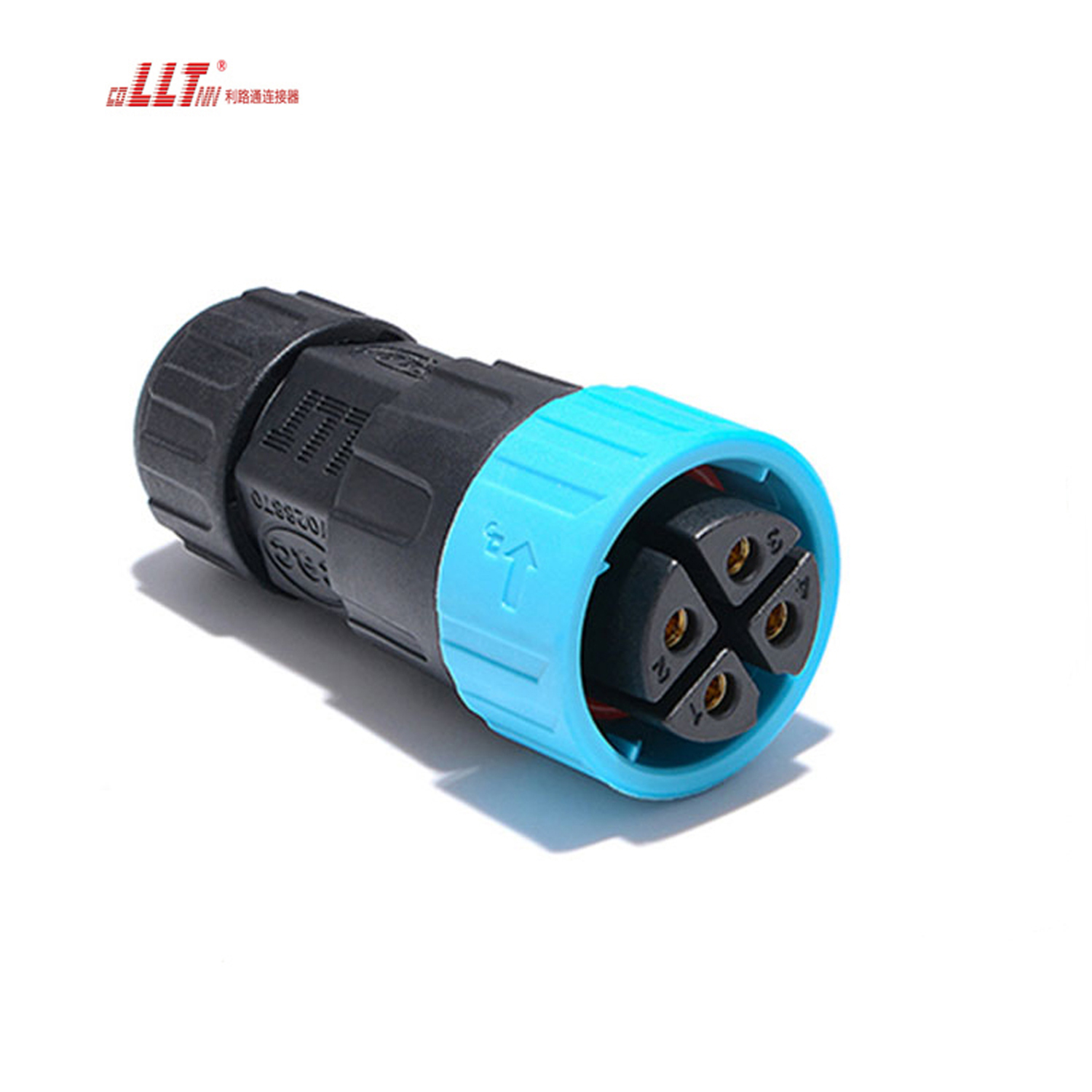

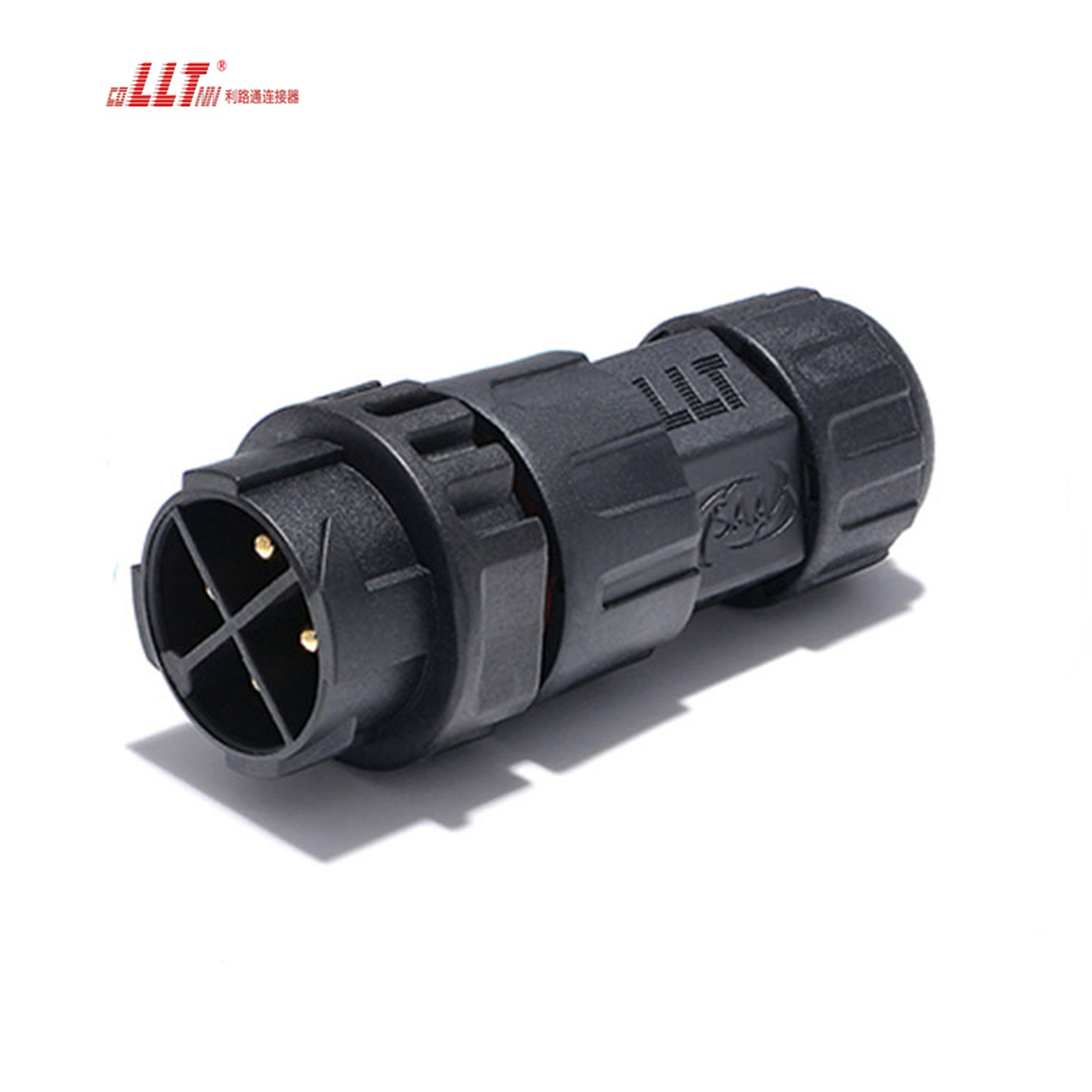

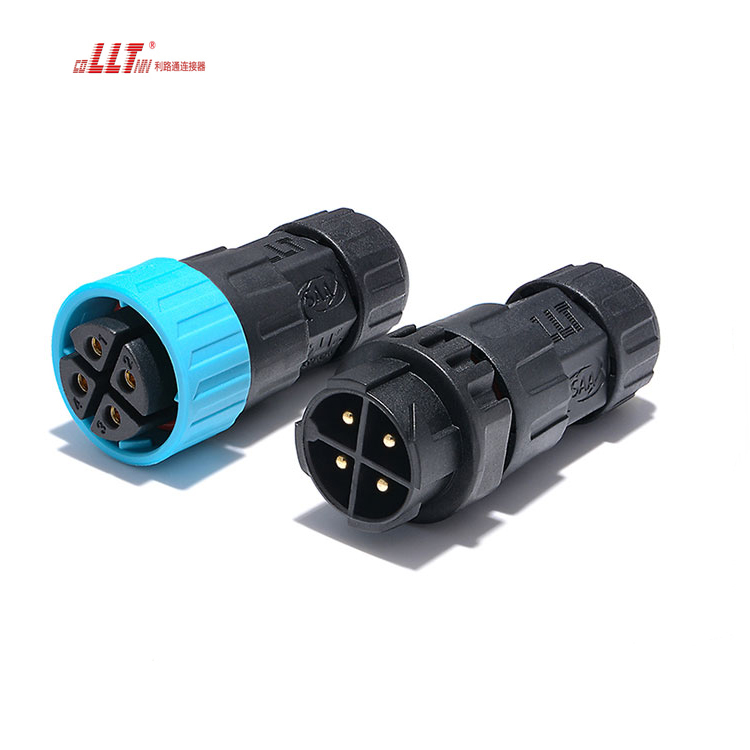

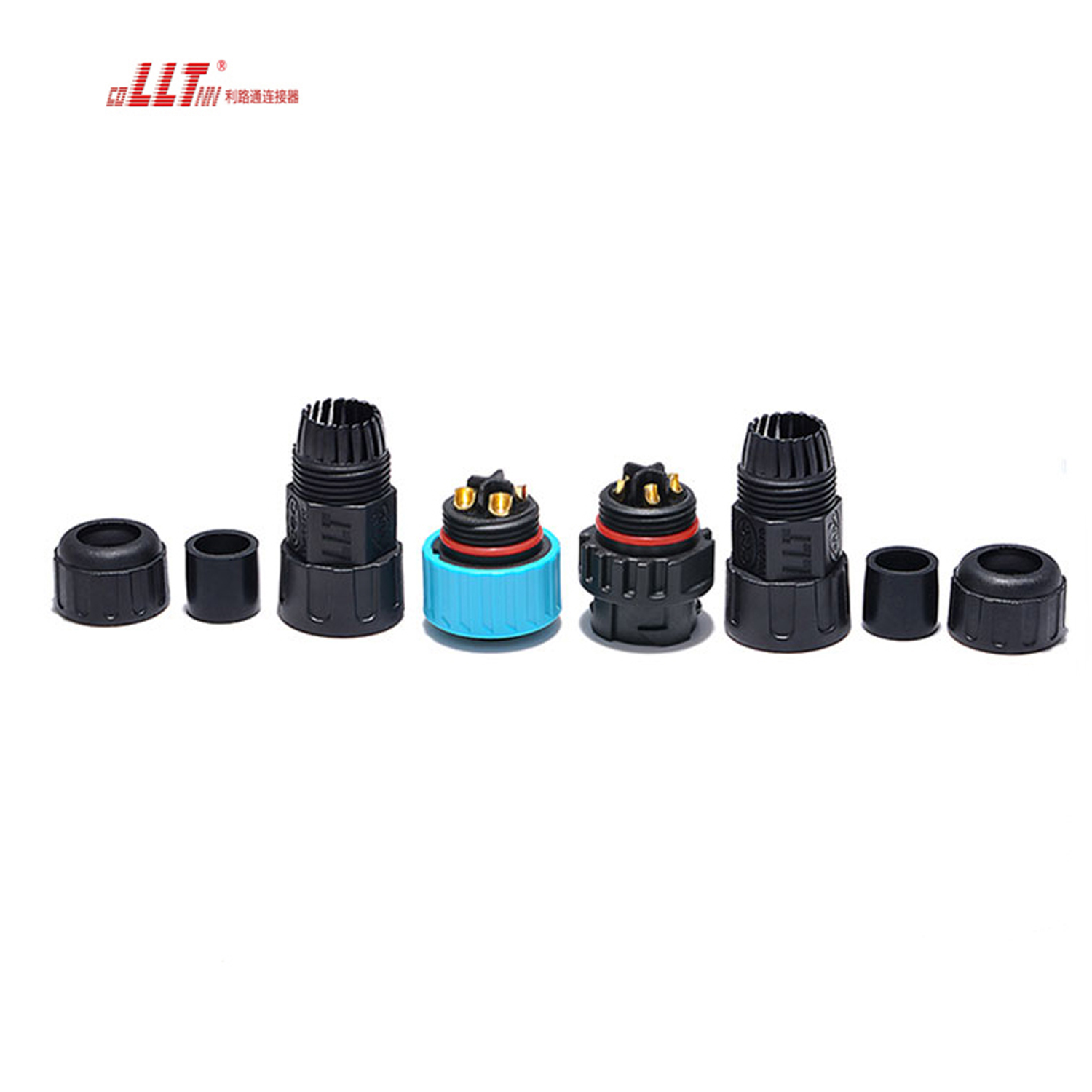

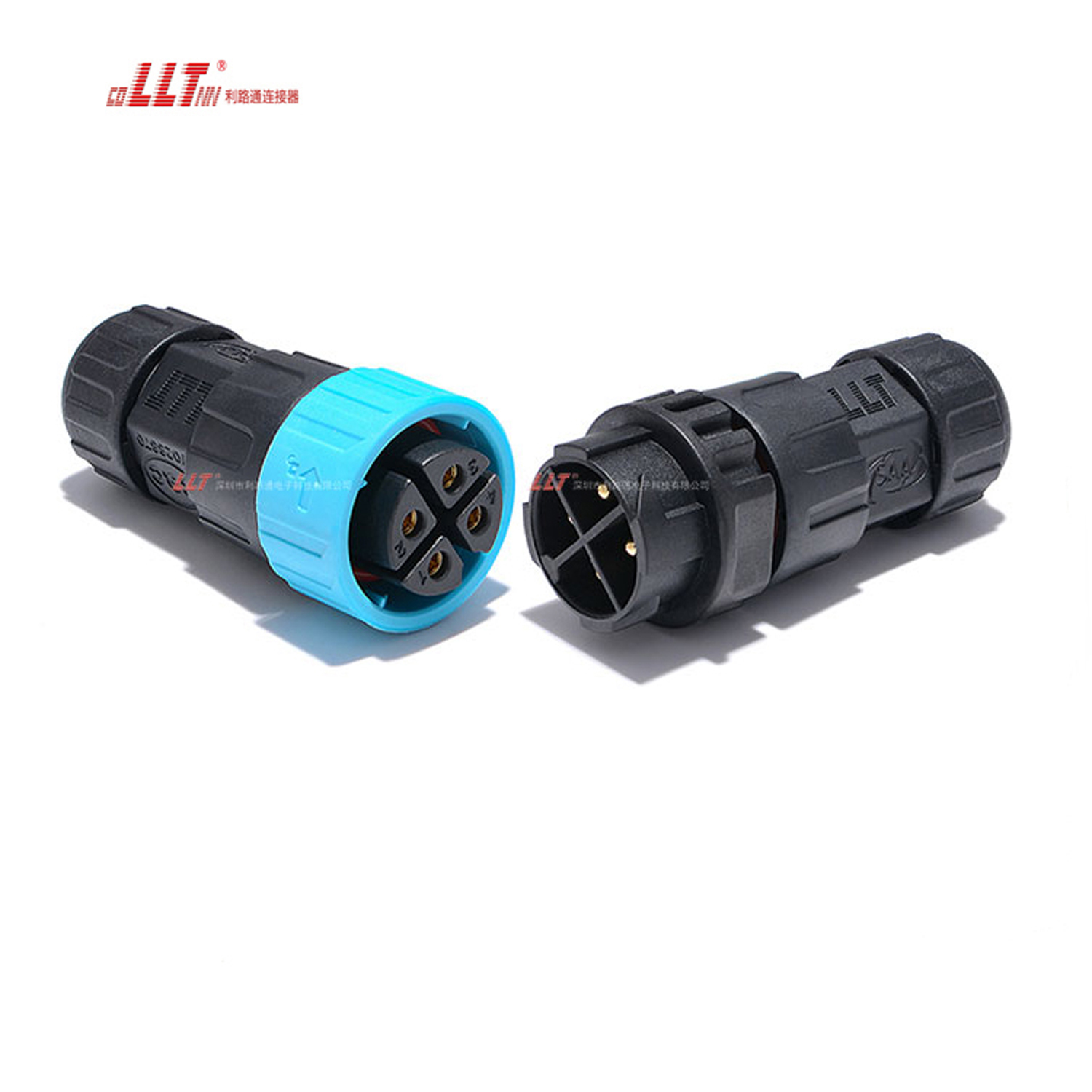

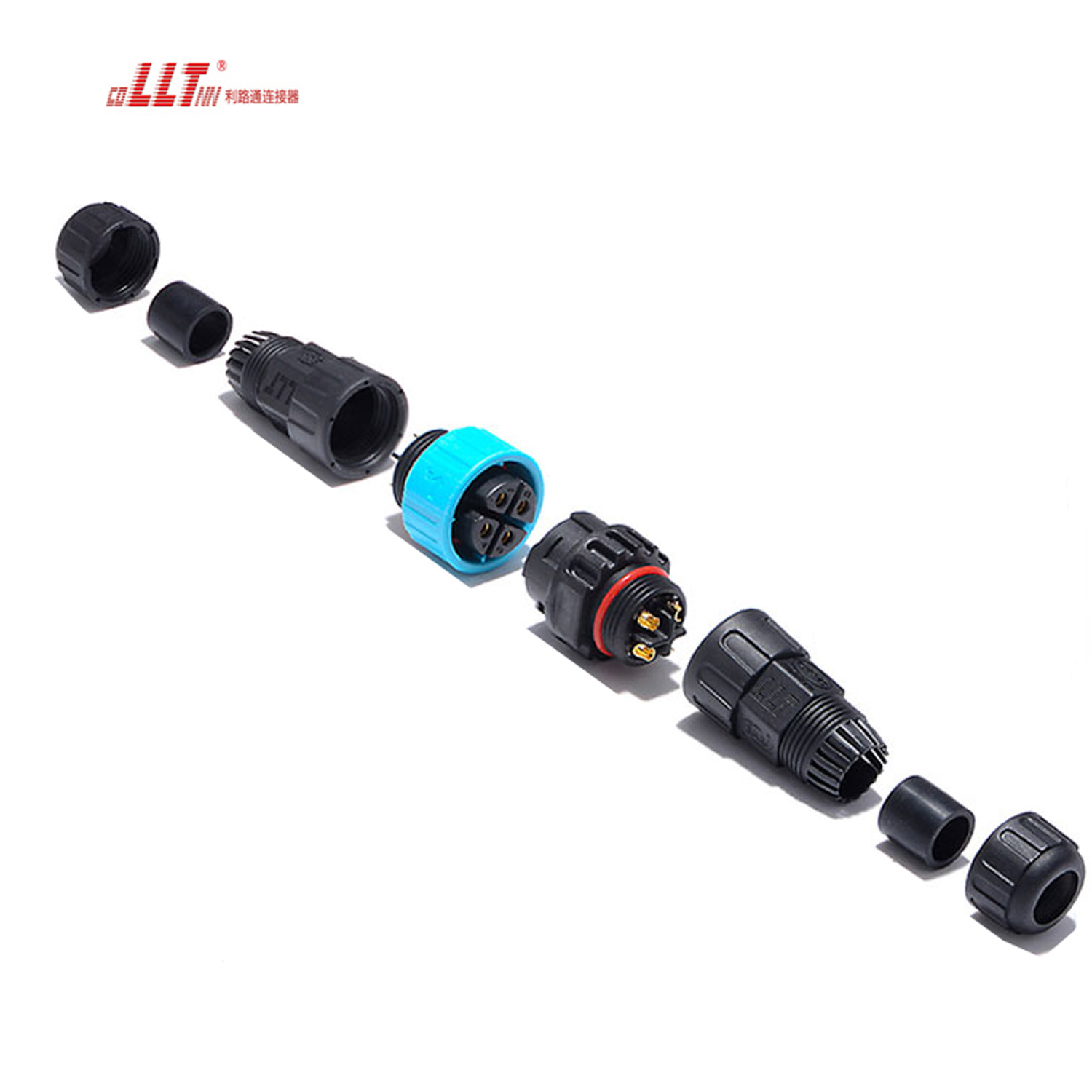

4pin Electrical Connector M25 IP68 Waterproof Connector 2 3 5 6 8 Pin Assembly Plastic Screw Wire Connector
US $2.50 - US $5.00
Production Lead Time:
7 day(s)
Shipping Method:
By express,By sea,By air
Brand:
LLT
Material:
Nylon(PA66)+GF 94V-0 1/16''
Rating :
600V/35A
Waterproof Rating:
IP68
Application:
LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technolgy and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .
Description
Contact Supplier
Description
Model number:LLT-M25-35004F1031+LLT-M25-35004F1041
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:35A
Voltage rating:600V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 6 and 8/20/24/2+6
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:35A
Voltage rating:600V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 6 and 8/20/24/2+6
3+8pin
Max Cable Range:13mm
Terminal attach wire:By solder
