5.0 inch LCD Display TFT LCD 1080*1920 Resolution 350 Brightness MIPI Interface

US $5.00 - US $10.00

Production Lead Time:

25 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech-lcd

Model No.:

MTF050FD42A-V1

Size:

5.0inch

Customised:

Yes

Description

Contact Supplier

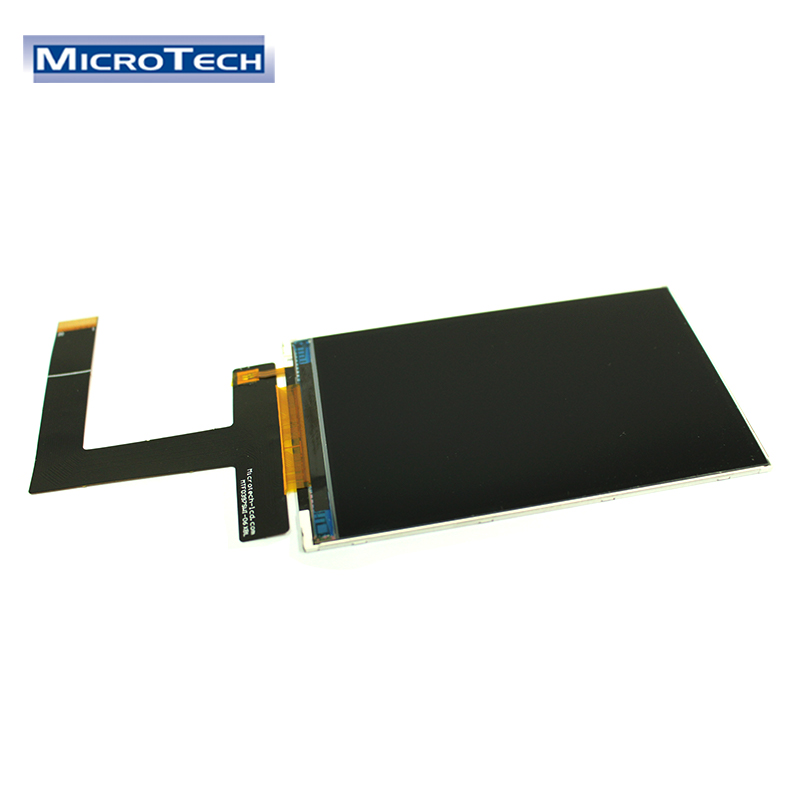

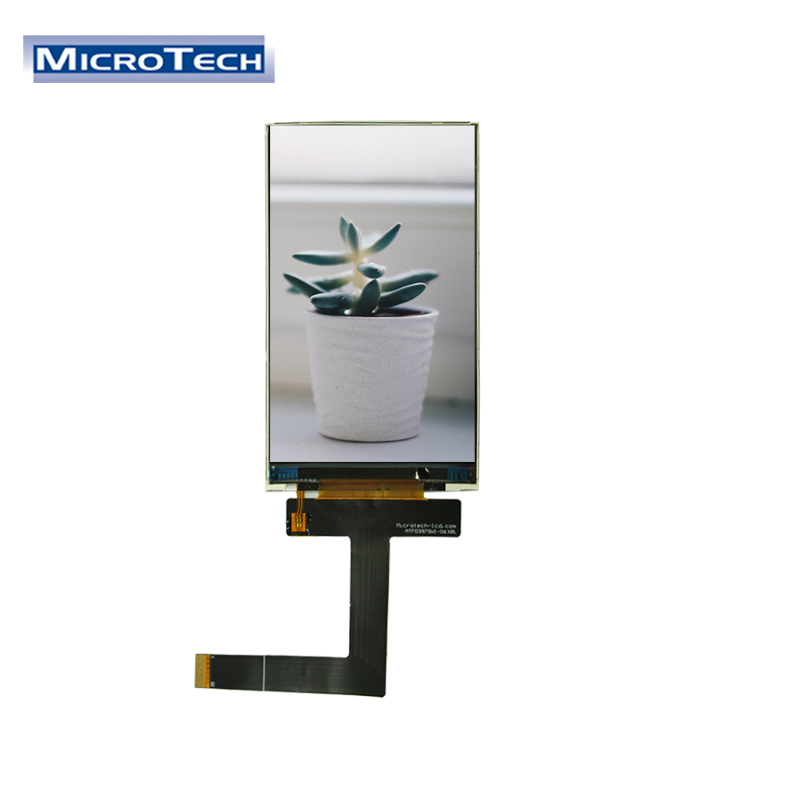

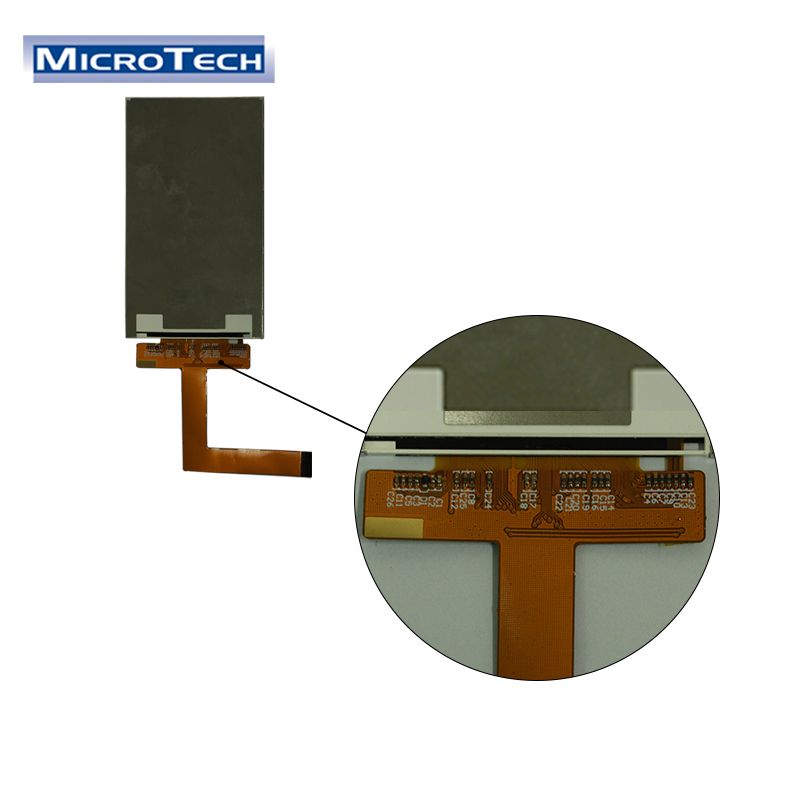

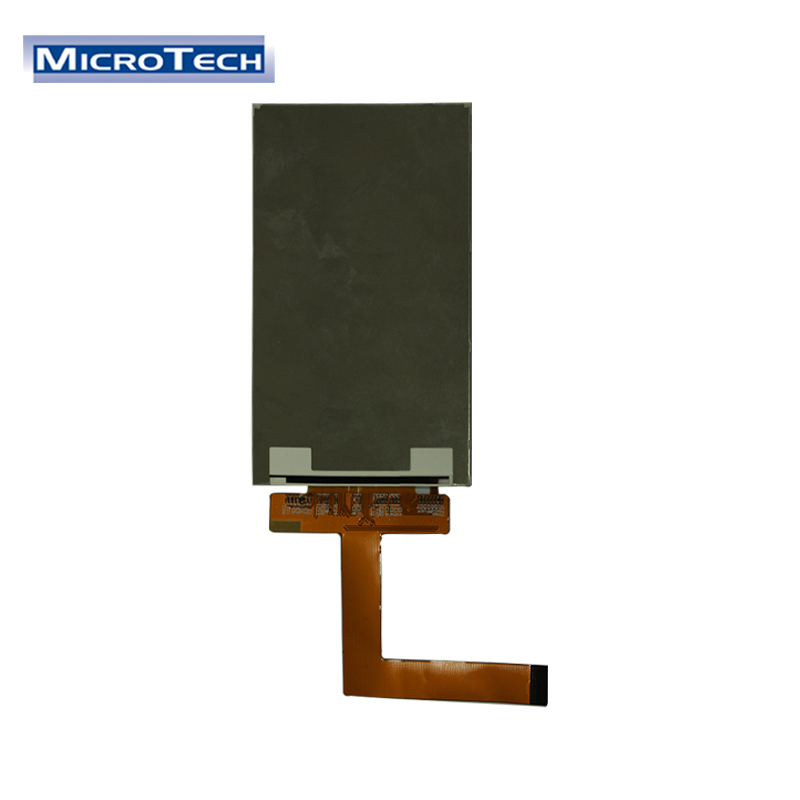

5.0 inch LCD Display TFT LCD 1080*1920 Resolution 350 Brightness MIPI Interface

Feature		Spec.
Display Spec.	Size	5.0 inch
	Resolution	1080(RGB)x 1920
	Technology Type	LTPS
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(mm)	0.0191(W)* 0.0573(H)
	Display Mode	Normally Black
	LCM Luminance	350 Cd/m2
	Viewing Direction	ALL

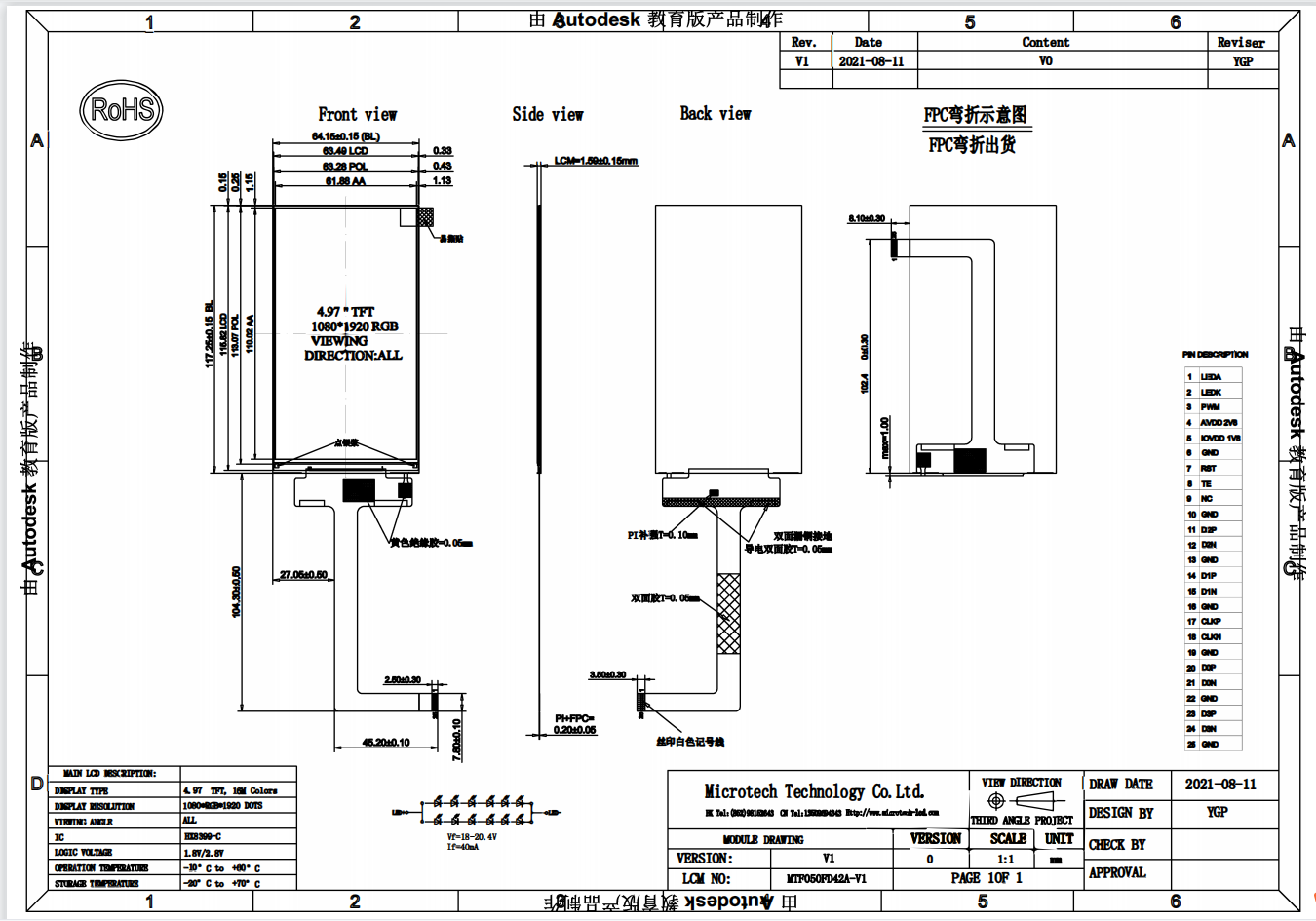

Mechanical Characteristics	Module (W x H x D) (mm)	64.15x117.26x1.59±0.10mm
	Active Area(mm)	61.88x110.02mm
	Matching Connection Type	FPC
Electrical Characteristics	LED Numbers	12LEDs
	TFT Interface	MIPI
	Display color	16.7M
	LCD Driver IC	HX8399-C
