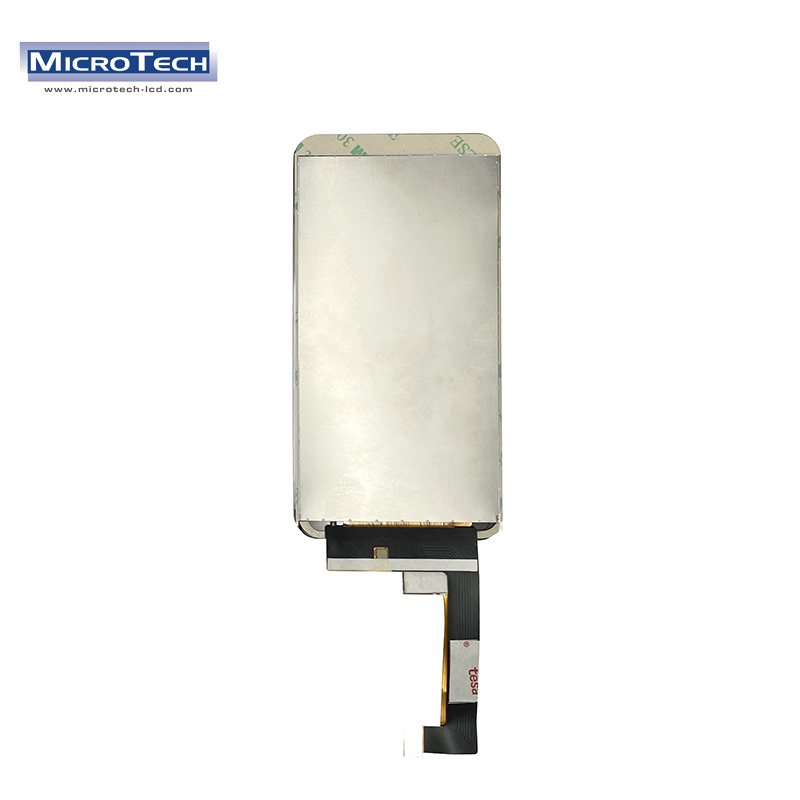

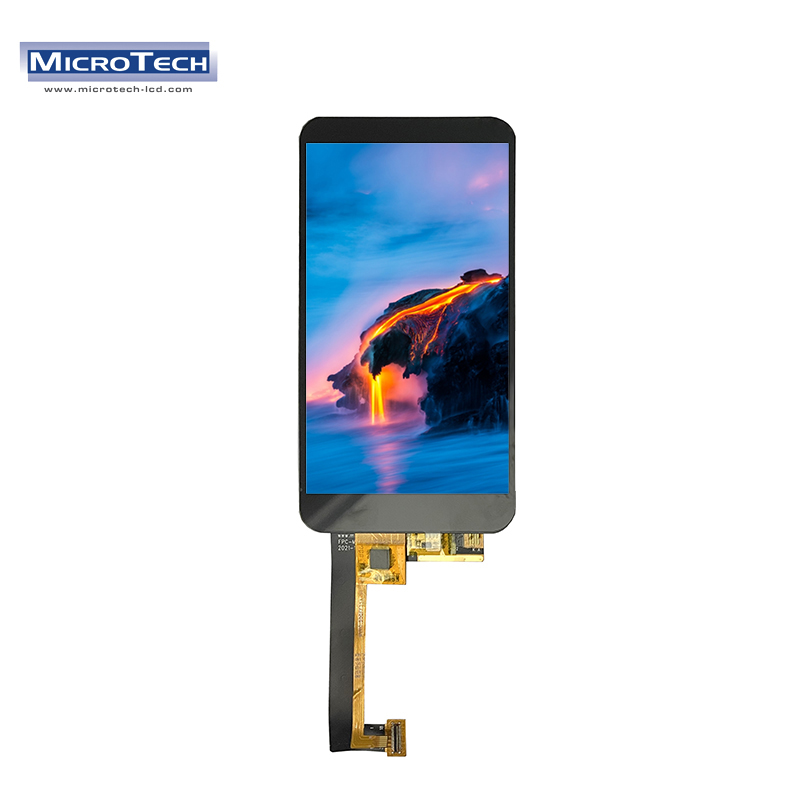

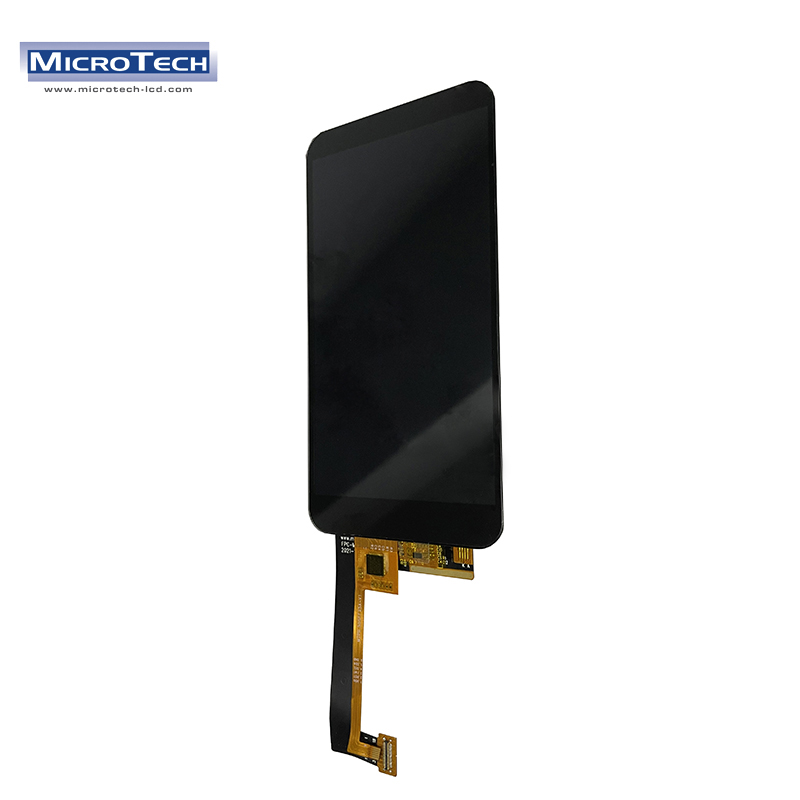

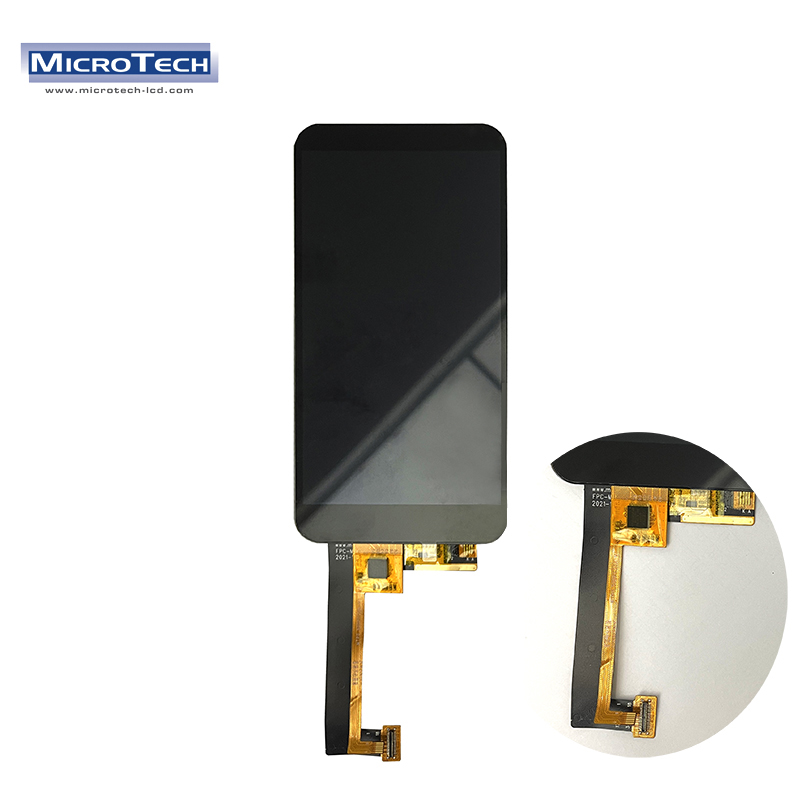

5.0 inch LCD Touch Screen 1080*1920 Full Fit Assembly IPS Full Viewing Angle MIPI Interface 4 Channels 1000 Brightness

US $20.00 - US $55.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTF050FD43A-V1

Customised:

Yes

Size:

5.0inch

Description

Contact Supplier

Feature		Spec
Display Spec.	Size	5.0 inch
	Resolution	1080(RGB)x1920
	Technology Type	LTPS
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(mm)	0.0191(W)* 0.0573(H)
	Display Mode	Normally Black
	LCM Luminance	1000 Cd/m2
	Viewing Direction	ALL

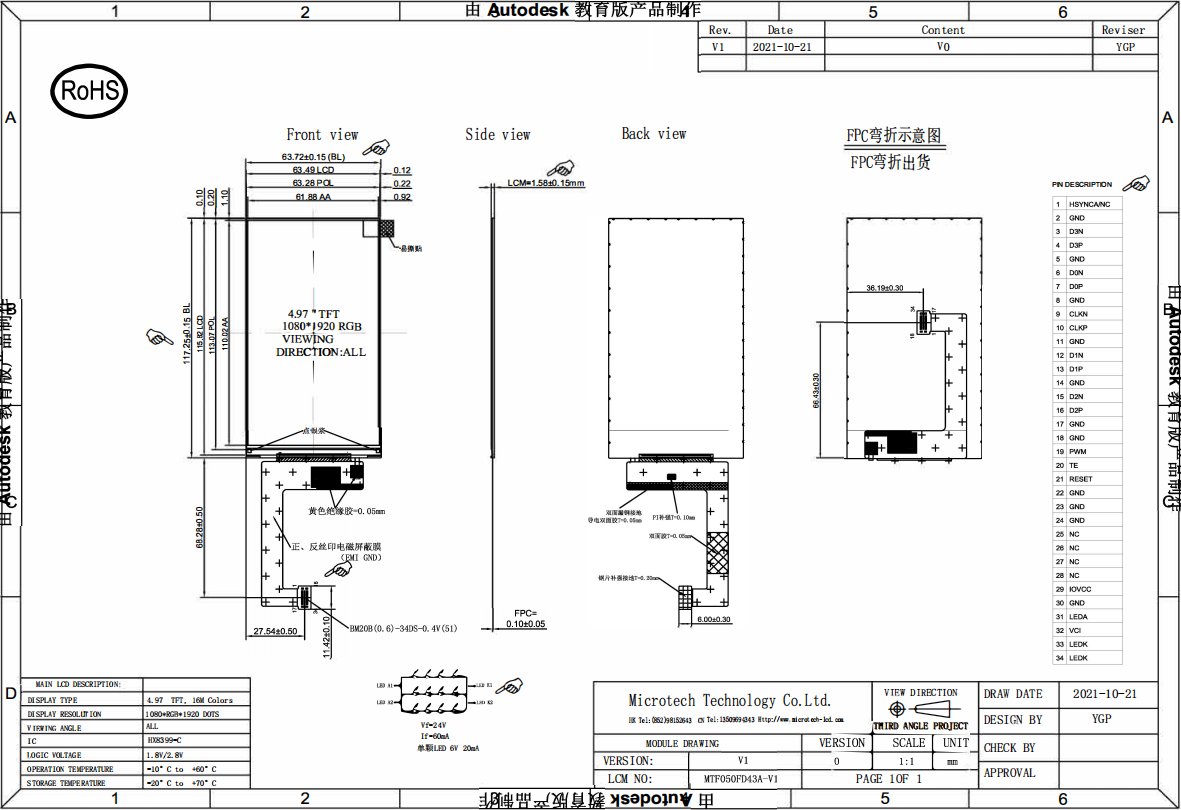

Mechanical Characteristics	Module (W x H x D) (mm)	63.72x117.25x1.58±0.10mm
	Active Area(mm)	61.88x110.02mm
	Matching Connection Type	FPC
Electrical Characteristics	LED Numbers	12LEDs
	TFT Interface	MIPI
	Display color	16.7M
	LCD Driver IC	HX8399-C

Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
