5.5 inch HD AMOLED 720*1280 MIPI interface Driver IC SH1386 with capacitive touch screen | Parts, Components & Electrical Supplies

Microtech Technology Co Ltd

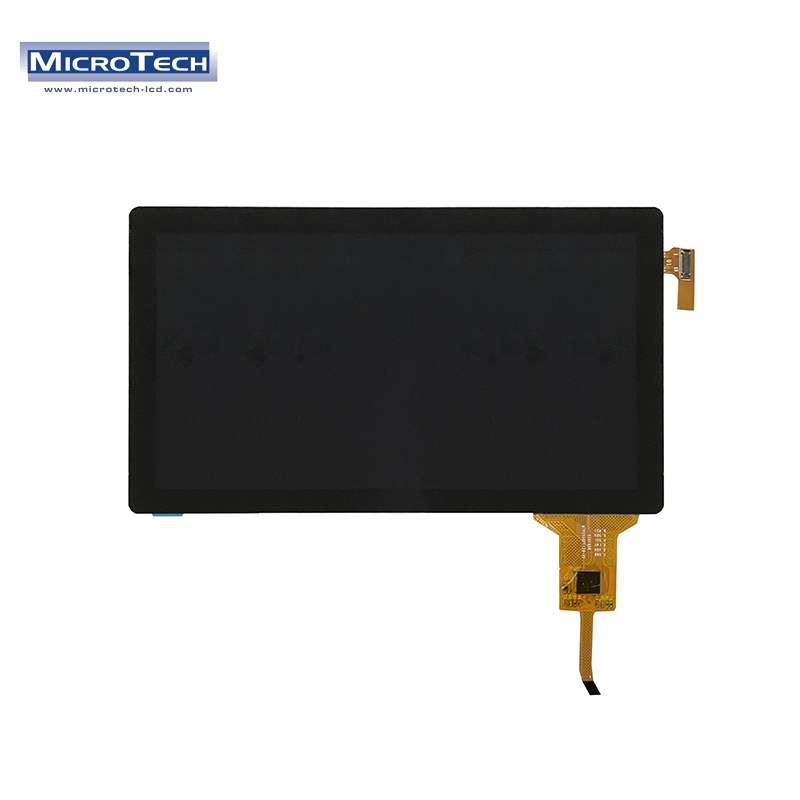

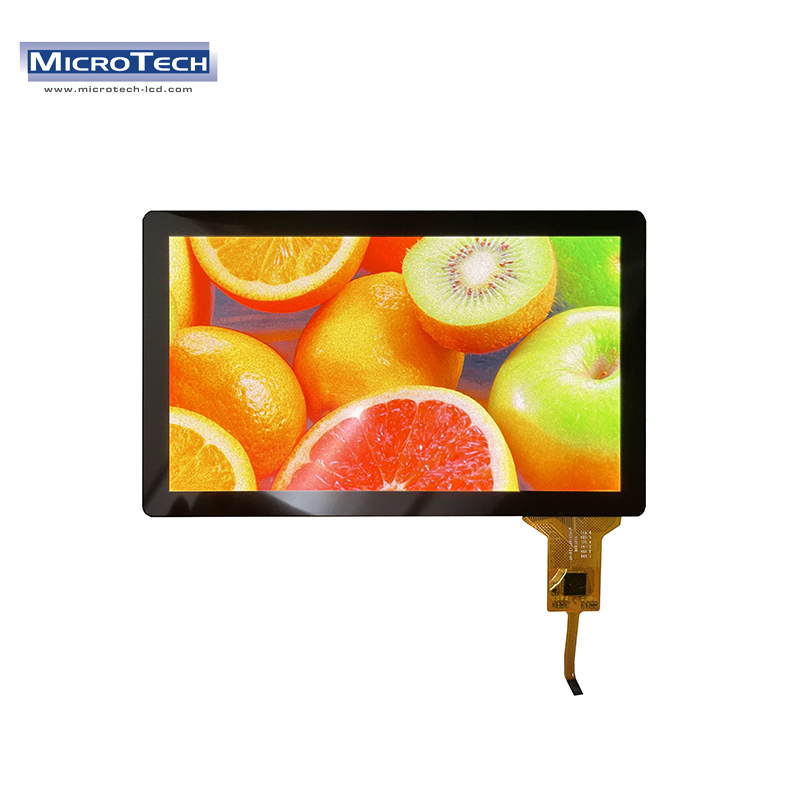

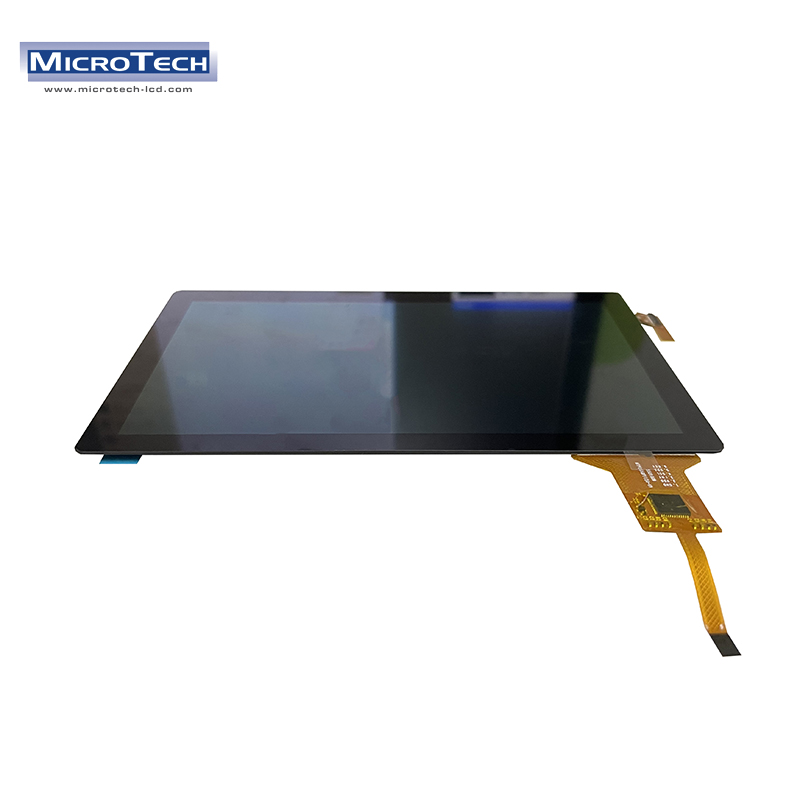

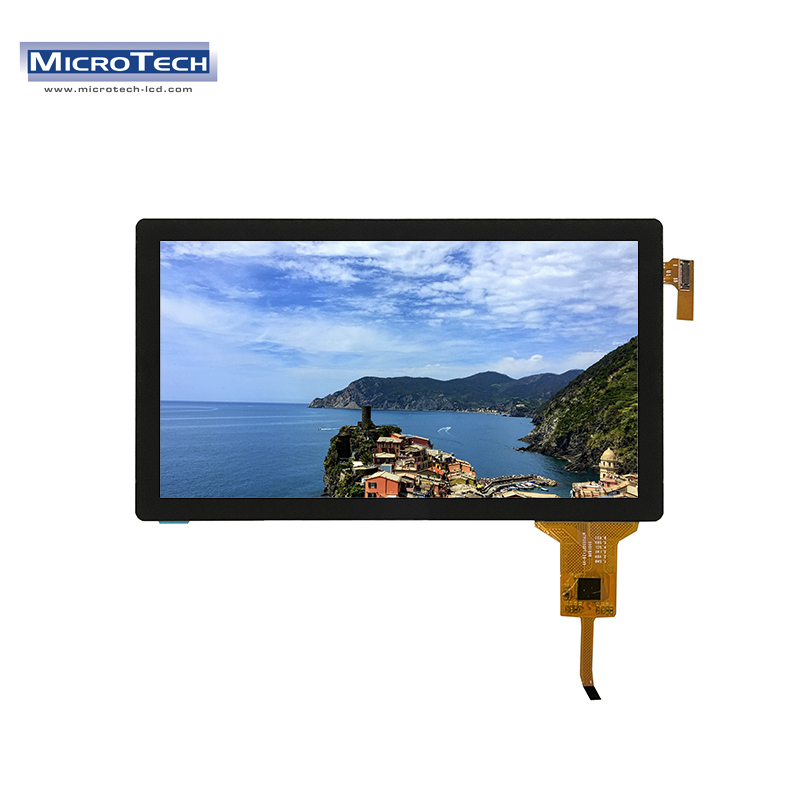

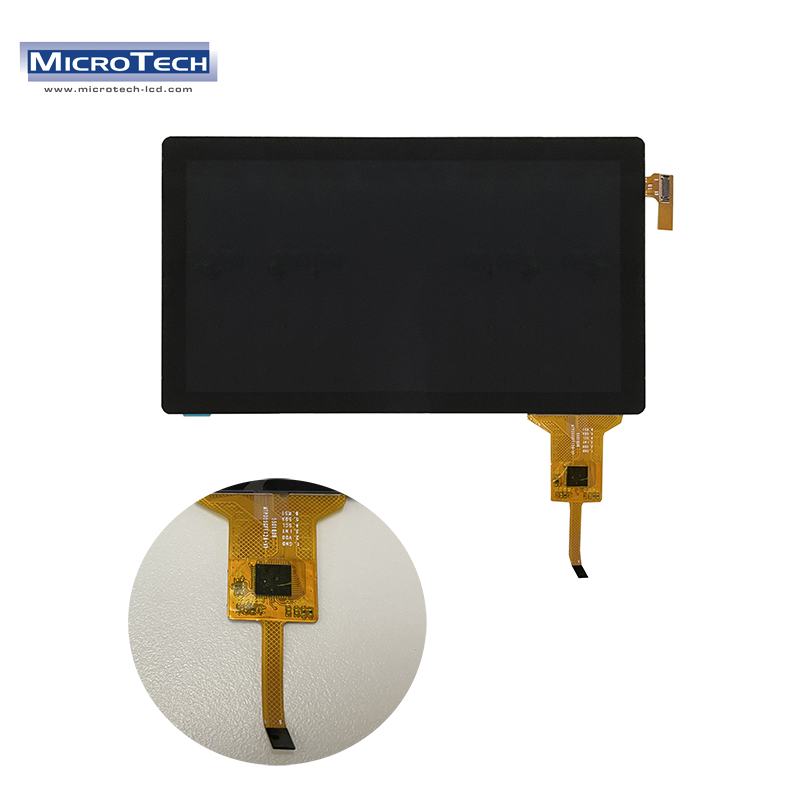

5.5 inch HD AMOLED 720*1280 MIPI interface Driver IC SH1386 with capacitive touch screen

US $40.00 - US $50.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTL055HD08A+TP

Customised:

Yes

Size:

5.5inch

Description

Contact Supplier

1) Display color：16.7M (RGB x 8bits)

2) Display format：5.5”HD(720RGBx1280)

3) Pixel arrangement：Real RGB arrangement

4) Interface：MIPI 4 lanes

5) Driver IC：SH1386 (Sino)

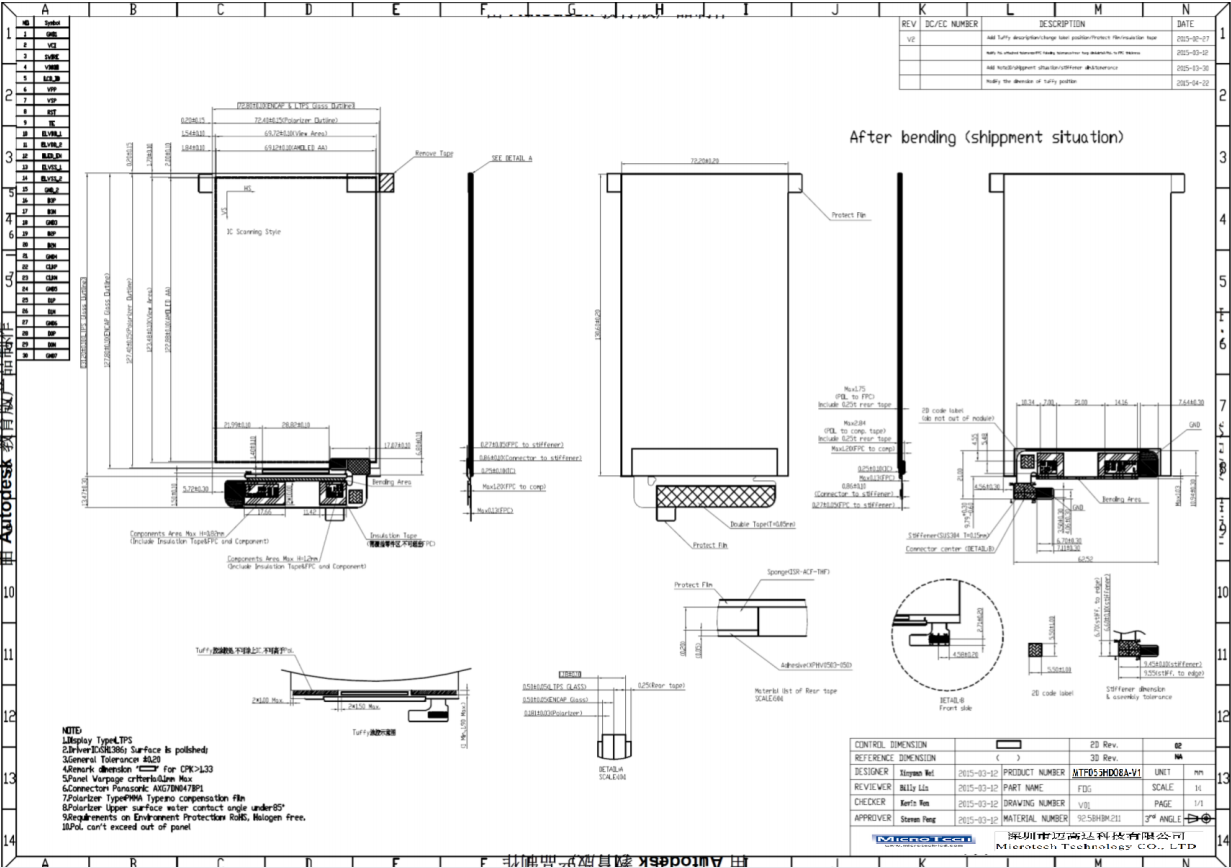

Item	Specification	unit
Dimension outline	72.80131.201.81	mm
LTPS Glass outline	72.80*131.20	mm
Encapsulation Glass outline	72.80*127.80	mm
Number of dots	720(W)x RGB x 1280(H)	dots
Active area	69.12*122.88	mm
Diagonal size	5.5	inch
Pixel pitch	32*96	Hm
Glass thickness (LTPS/encapsulation glass)	0.5/0.5	mm
Weight	26 (±10%)	g
