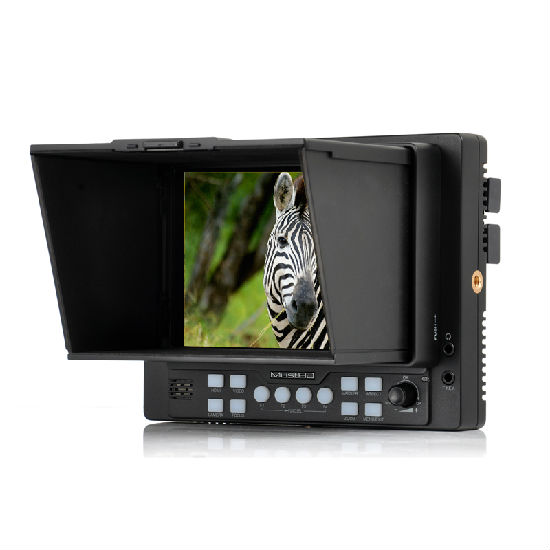

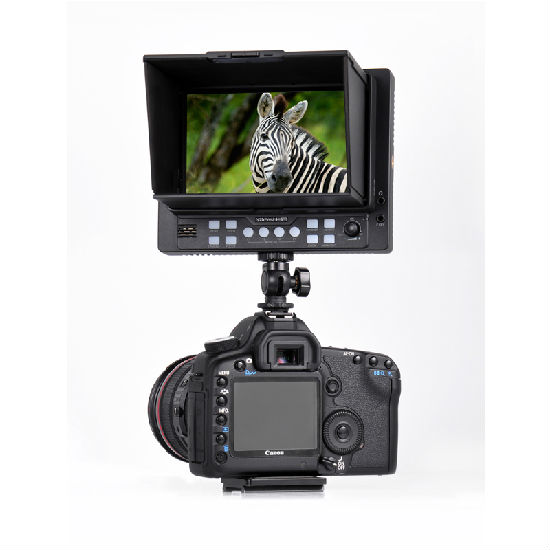

The MustHD 5.6-inch on-camera field monitor M601 for DSLR is designed to help photographers or film makers to get better focus and thus better pictures and videos with DSLR camera! The MustHD 5.6-inch On-camera Video-assist Field Monitor for DSLR presents crystal clear image of what you are shooting directly onto a large 1280*800 LCD screen, meaning you never have to fatigue your eyes to see any image again. Ideal for armatures as well as professionals who need to view images all day long! Make focusing, framing your picture and previewing quicker and clearer. Place the 5.6 inch monitor for your DSLR camera at varied angles without worrying about keeping your eyes level with the miniature in-built camera screen.

Major Features:

• 5.6" LCD, 1280 x 800
• Unique Sun-Hood
• HDMI Head Locker
• Camera Button
• Knob Control
• Tally
• Custom Preset Button
• Battery Plate (easy to lock)
• Focus Assist
• Fit Marker
• H/V Delay
• Aspect
• Over-scan
• Exposure
• False Color
• Black and White
• Blue only
• Pixel to Pixel
• Zoom
• Freeze

Specifications:

• LCD Size: 5.6 inches
• Resolution: 1280*800
• Pixel Pitch: 0.0945(H)x0.0945(W) mm
• Color Depth: 262 K (6bit)
• Viewing Angle: H: 170 degrees / V: 170 degrees
• Luminance of white: 300cd/㎡ (Center)
• Contrast Ratio: 500:1
• Display Area: 120.96 (H) x 75.60 (V)mm
• Input Connector:
• 1 x BNC - Video Input
• 1x HDMI - HDMI input
• 1x LAN(RJ45) - TALLY
• Output Connector:
• 1 x BNC Video output
• 1x HDMI HDMI output
• Input Signal:
• Analog: Video
• HDMI: 480i/480p/576i/576p/720p/1080i/1080p
• Audio Out: Analog Stereo (phone jack)
• Internal speaker: (Mixed Mono)
• Power: DC 6-20V
• Power Consumption (Approx): 8 Watts (typical)
• Operating Temperature: 0℃ to 45℃ (32℉ to 113℉)
• Storage Temperature: -20℃ to 60℃ (14℉ to 140℉)
• Main Body Dimension (mm/inch): 166x128x50.2 / 6.53x5.03x1.98
• Weight: 695g / 1.53lbs

Box contents:
1. Field monitor with sun-hood (detachable)
2. AC adaptor
3. User manual
4. F Key Cable Control
5. Shoe mount adaptor
6. Screws (for fixing the battery plate more tightly)
7. HDMI cable
8. Battery Plate-LP-E6
9. Battery Plate-F970 (optional)
10. Battery-D28S (optional)
11. Carry bag (optional)

Warranty: 2-years
