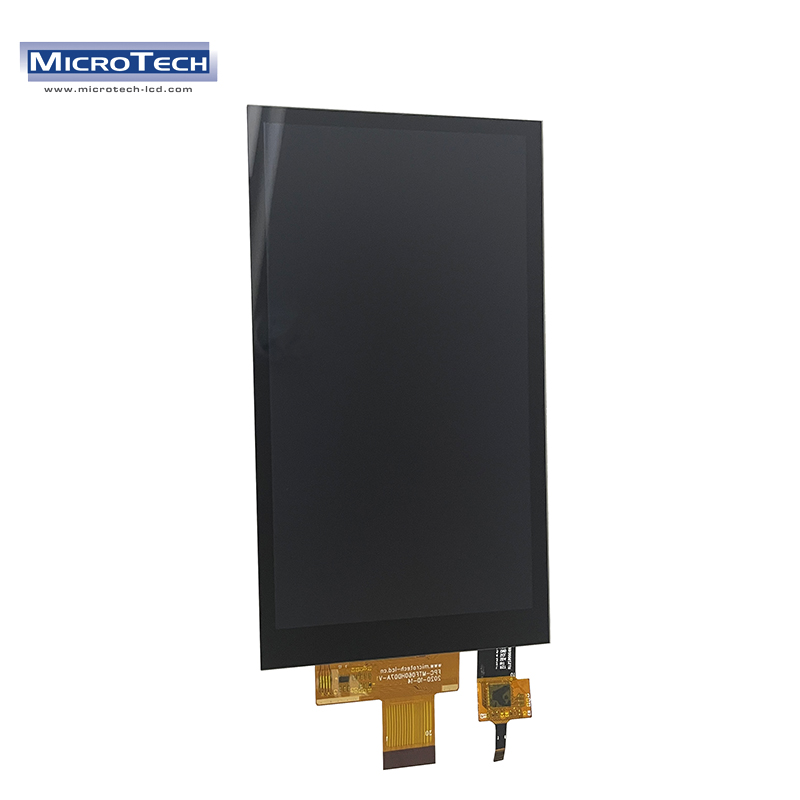

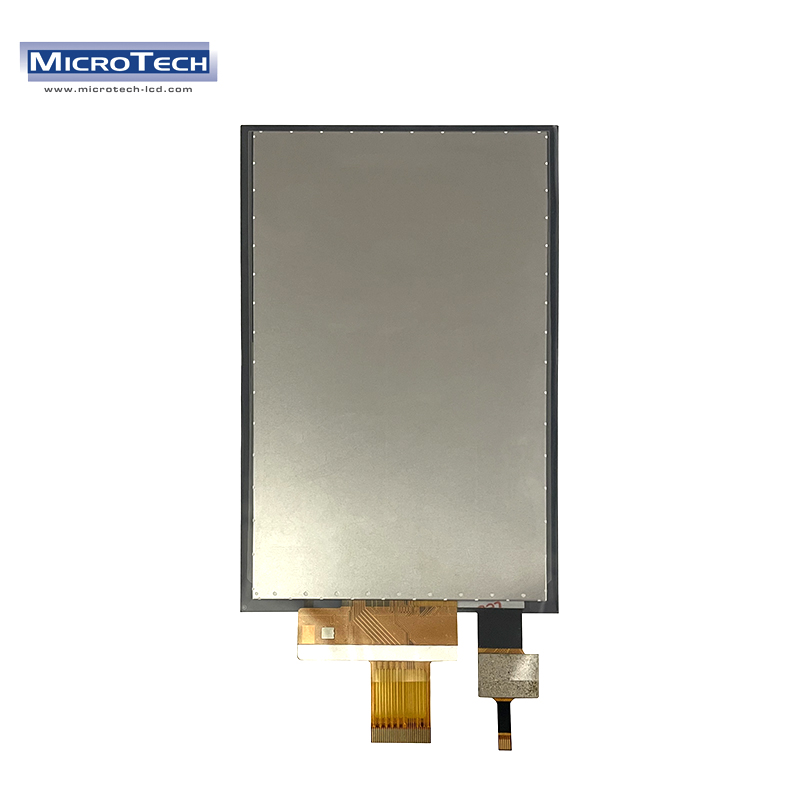

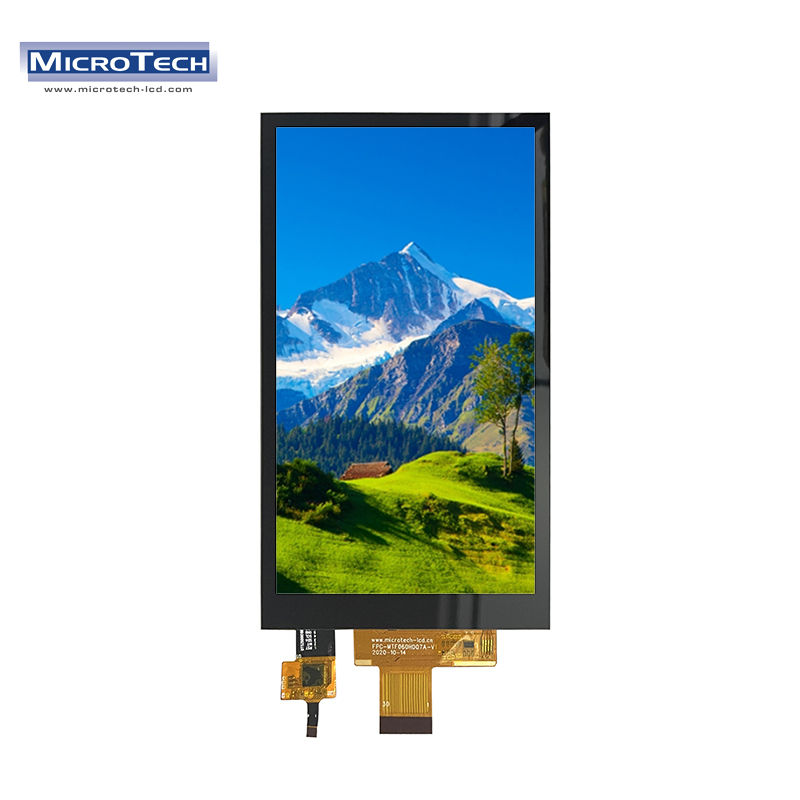

5.94 inch LCD Touch Screen IPS 720*1280 MIPI 4-Channel LCD TFT Assembly Module With CTP

US $26.00 - US $29.00

Production Lead Time:

25 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTF060HD07A-V1

Customised:

Yes

Size:

5.94

Description

Contact Supplier

Feature		Spec
Display Spec.	Size	5.94 inch
	Resolution	720(RGB) x 1280
	Technology Type	a-Si
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(mm)	0.10275(W)* 0.10275(H)
	Display Mode	Normally Black
	LCM Luminance	350 Cd/m2
	Viewing Direction	ALL

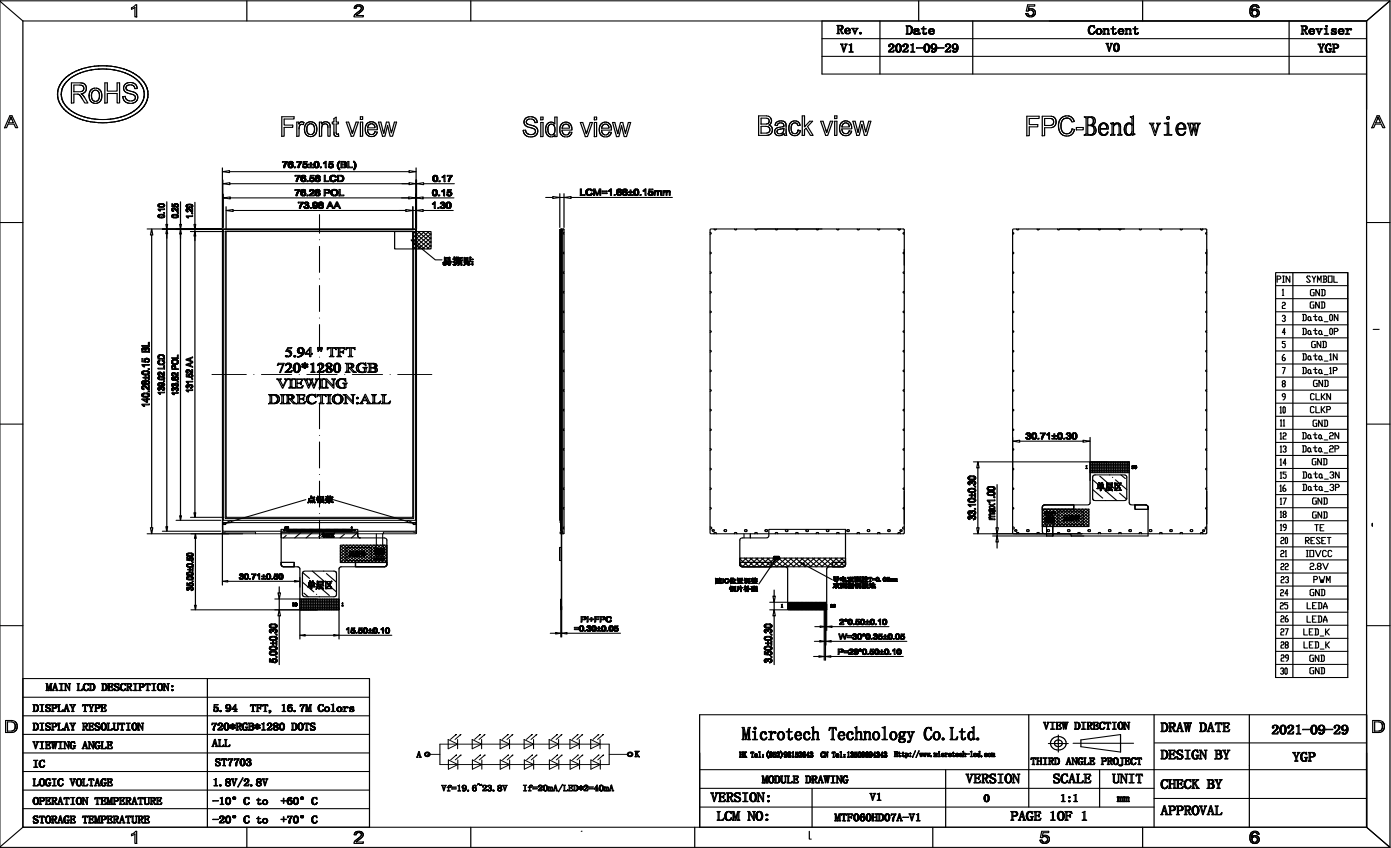

Mechanical Characteristics	LCM Module (W x H x D) (mm)	76.75x140.28x1.66±0.15mm
	Active Area(mm)	73.98x131.52mm
	Matching Connection Type	FPC
Electrical Characteristics	LED Numbers	14LEDs
	TFT Interface	MIPI
	Display color	16.7M
	LCD Driver IC	ST7703

Touch panel	CTP

Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
