5 Channel UPS 12V 24V for Nano Station M5 | Parts, Components & Electrical Supplies

Shenzhen Fining Electronics Co., Ltd.

5 Channel UPS 12V 24V for Nano Station M5

Production Lead Time:

20 day(s)

Model No.:

FNUPS002

Brand:

Fining

Colour:

Black

Size:

165*147*113mm

Port:

Shenzhen

Type of Payment:

Minimum Order Quantity:

500

Protection:

OverVoltage

Current Type:

Input Voltage:

100-240V AC

Input Frequency:

50/60Hz

Package:

Yes

Customised:

Yes

Type:

On-line

Weight:

2.6KGS

Output Voltage:

5V 9V 12V

Phase:

Single Phase

Application:

Security / Monitoring / Alarm

Description

Contact Supplier

Features

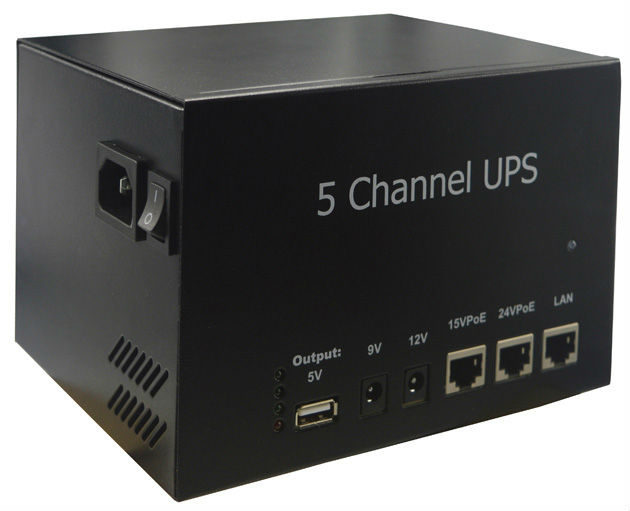

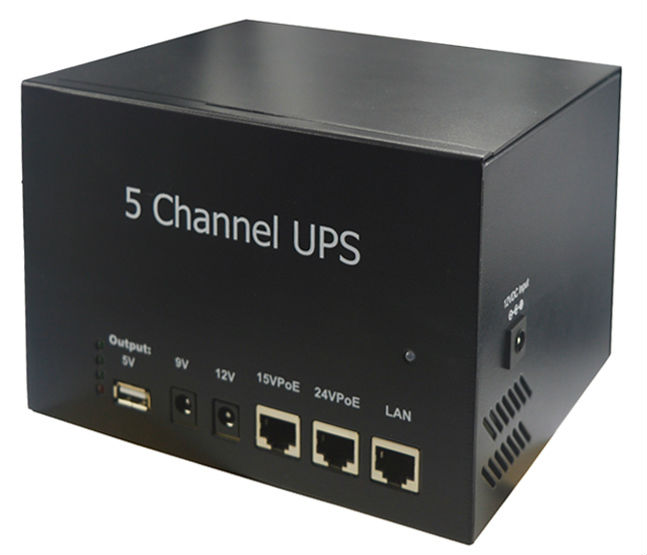

Can provide 5 channel DC outputs;
5V1A USB port, 9V1A DC jack, 12V1A DC jack, 15V PoE, 24V PoE;
Support both 100-240VAC input and 5-24VDC wide range input;

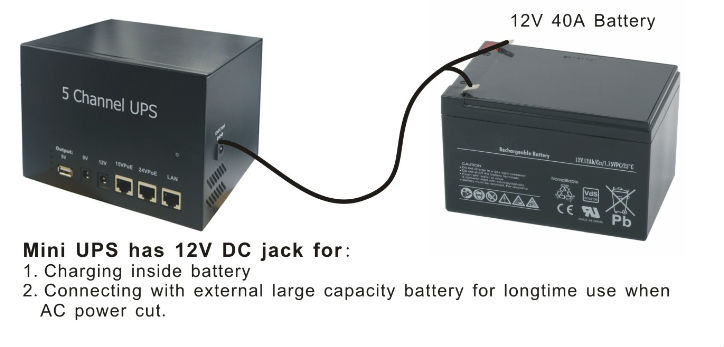

Typical DC input: 12VDC(connect external battery); optional: 5VDC (power bank) and 24VDC (solar panel);
High Quality Sealed Lead Acid Batteries
Advanced battery charge controller protects against overcharge and over discharge
LED indicator for battery capacity and charge status
Applications

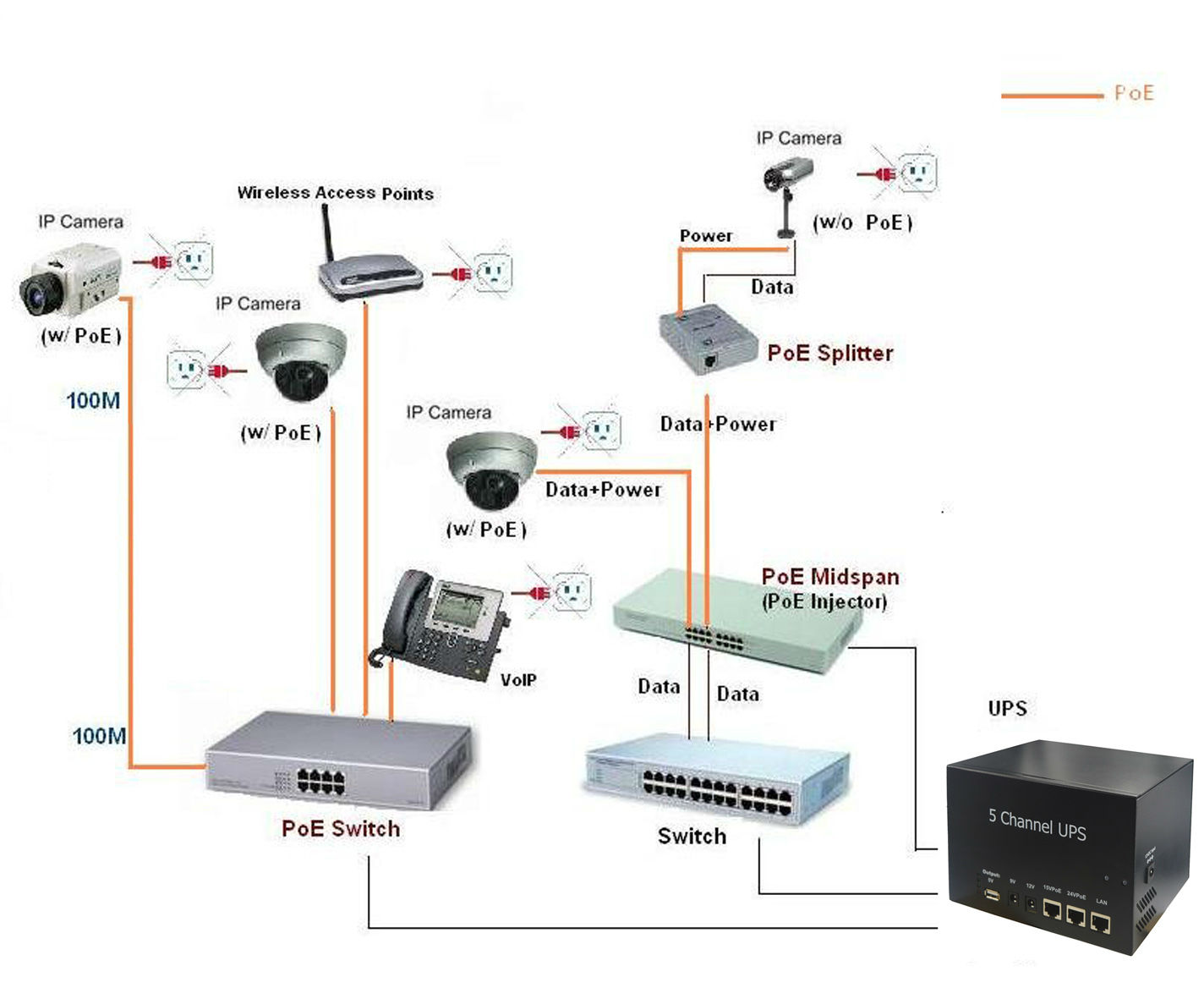

Wireless AP, Surveillance Cameras, nanostation 5, M5, bridge
Router, switch, cell phone, Remote Sensors, Backup Power Systems
The Fining multi-channnel UPS is designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure can provide 5 channel outputs, 5V/9V/12V/15V/24. Features include an advanced battery charge controller to protect against over-charging or over-discharging of the sealed lead acid batteries. When AC off, it still can provides 15V and 24V PoE output to wireless AP or CPE cards, sensors, inverters, etc. It can support both 100-240VAC input and 12VDC DC input. DC input source can be 12V additional battery. The recommended battery storage capacities includes 12V4.5AH and 12V7AH. A typical 250mW wireless access point with average power consumption of 3.5W will run 26 hours on a 7Ah battery at room temperature or 17 hours at -20 deg C.
