• Rear view camera system free operating voltage: DC 11-32V.
• 5" digital screen TFT LCD rear view monitor (high resolution), built-in day / night sensor for illumination of the control knobs.
• It features an on-screen menu for all settings: normal / mirror view, Reversing image delay, priority of reverse camera,automatic switch on (by reverse gear and or by direction lights)
• Rear View Camera Built in IR LED's Water resistance: IP66.

Product specification:
Waterproof rear view camera (model: DF-8083):

• Image Type: 1/3" Sharp Color CCD.
• Horizontal resolution: 420TV lines.
• Effective pixel: NTSC: 510 (H) x 492 (V); PAL: 500 (H) x 582(V).
• Usable illumination: 0lux (built in 18pcs IR LED's for picture support in the dark).
• Free viewing angle: 130°.
• Backup camera waterproof: IP68.
• Shockproof: 10G.
• Video output: 1.0Vp-p75Ω.
• Power supply: DC 12V from reversing monitor.
• Dimensions: 45(W) x 42(H) x 55(D) mm (without mounting).
• Weight: 186g.

5 inches digital screen rear view monitor (model: SP-527):

• 5" digital screen color rear view monitor with removable sun visor.
• Color system: PAL/NTSC.
• Display Resolution: 640(H) x 3RGB x 480(V) dot.
• Setting up the camera image normal or mirror.

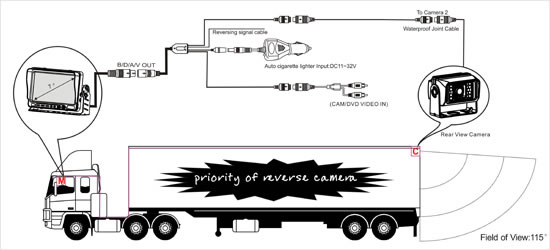

• With 2CH video input, set up the priority of reverse camera.
• Setting up the reversing image delay time: 0-30”.
• Wide view angle (CR>10): (up / down): 45/65 (left / right): 65/65.
• Brightness (cd/m2): 300.
• Contrast ratio: 500: 1.
• Back-light: single LED.
• Operating temperature: -20℃ to +50℃.
• Storage temperature: -30℃ to +80℃.
• Power supply: DC 11~32V.
• External dimensions: L x W x T (150 x 118 x 23)mm (without mounting).
• Weight approx: 279g.

Product accessories:

• Monitor bracket, 15m cable, electrical connecting cable,user manual,full function remote controller.
