500W Smart Battery Charger
Share this page
Brand:
tenpao
Model No.:
500W Smart Battery Charger
Description
Contact Supplier
Description

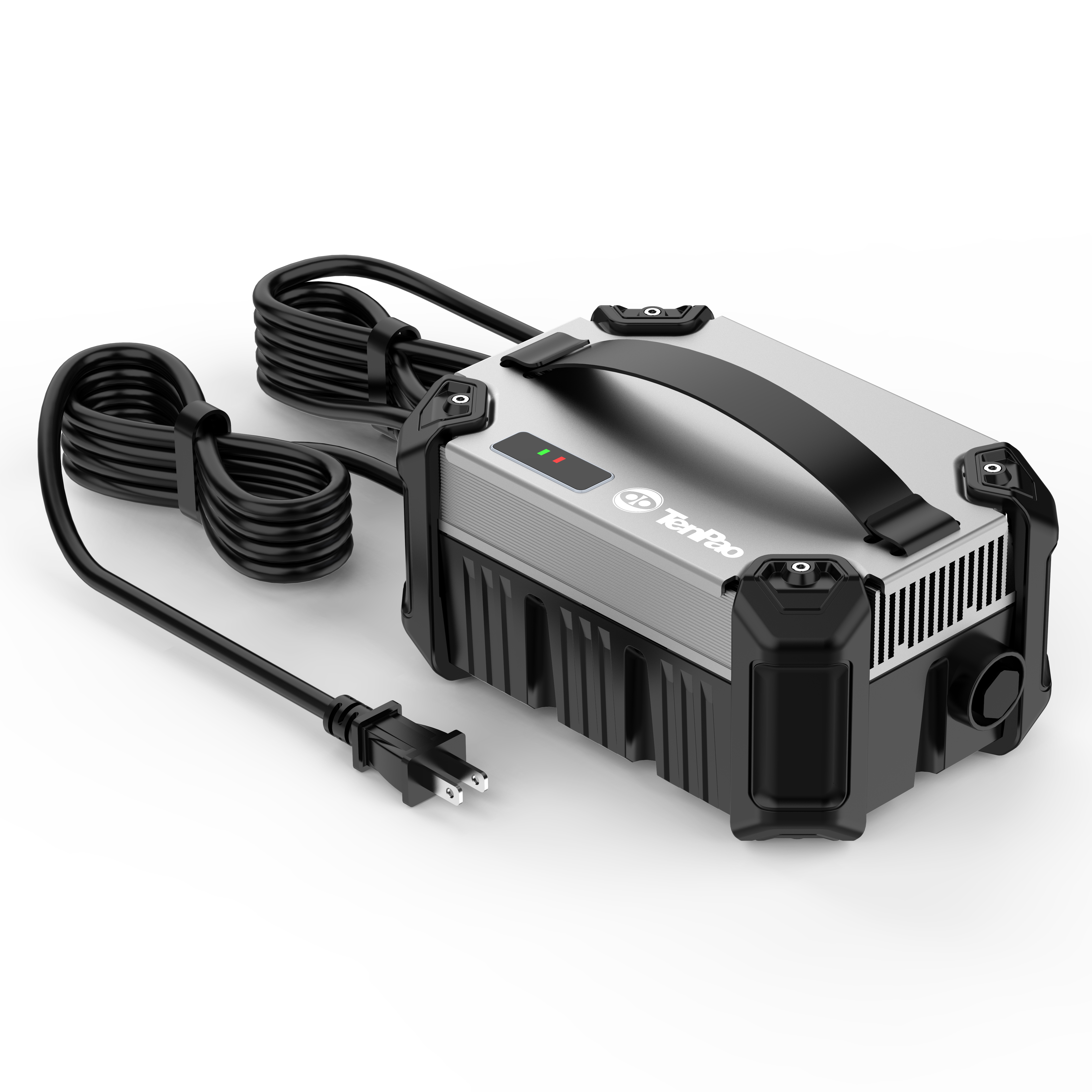

500W Smart Battery Charger

Product introduction:

High protection series smart charger adopts the design concept of automobile products, the professional waterproof design does not need to fill glue to reach IP65 protection grade, built-in DSP soft switch and digital communication technology, can quickly respond to control instructions, excellent performance in battery adaptability, can better match the battery charging curve, and achieve a safe and reliable effect.

Main feature:

Intelligent and efficient/Good heat dissipation/Small volume/Easy to carry/Wide range voltage/Flexible upgrade/Digital communication/IP65 Protection


 500Wunit
AC Input
Input voltage range90-264 Vac
AC current harmonics THD<5 %
Power factor>0.99
Efficiency> 93@Full load %
Max input current7 Aac
DC outputType 1Type 2
Output rated voltage60 (optional)Vdc
Output voltage rangeCV:20-60CV:30-88Vdc
Charging current accuracy≤5≤5%
Ripple≤750≤900mVp-p
Max charging current10A
Communication methodCAN/485, UART/user define
DimensionL198*W133*H97mm
