50W DIP Adjustable Driver Emergency LED Linear Lighting System with Track Rail Light
US $10.00 - US $20.00
Production Lead Time:
10 day(s)
Shipping Method:
DHL/UPS/FEDEX/TNT and other
产品型号:
T-line
Brand:
Coreshine
颜色:
White, Black
Size:
Width 67mm * Length 1147mm
Port:
Shenzhen
付款方式:
L/C,T/T,Western Union,MoneyGram
Voltage(V):
220-240V / 100-277V AC
Certification:
CE, EMC, FCC, GS, LVD, PSE, RoHS, SAA, UL, VDE
功率(瓦):
14W,18W,20W,35W,40W,50W,70W...
Warranty:
7 year
Base Type:
Linear
Light Source:
LED Bulb
Body Material:
Aluminum
Is Dimmable:
Yes
Power Source:
AC
Customized:
Yes
Application:

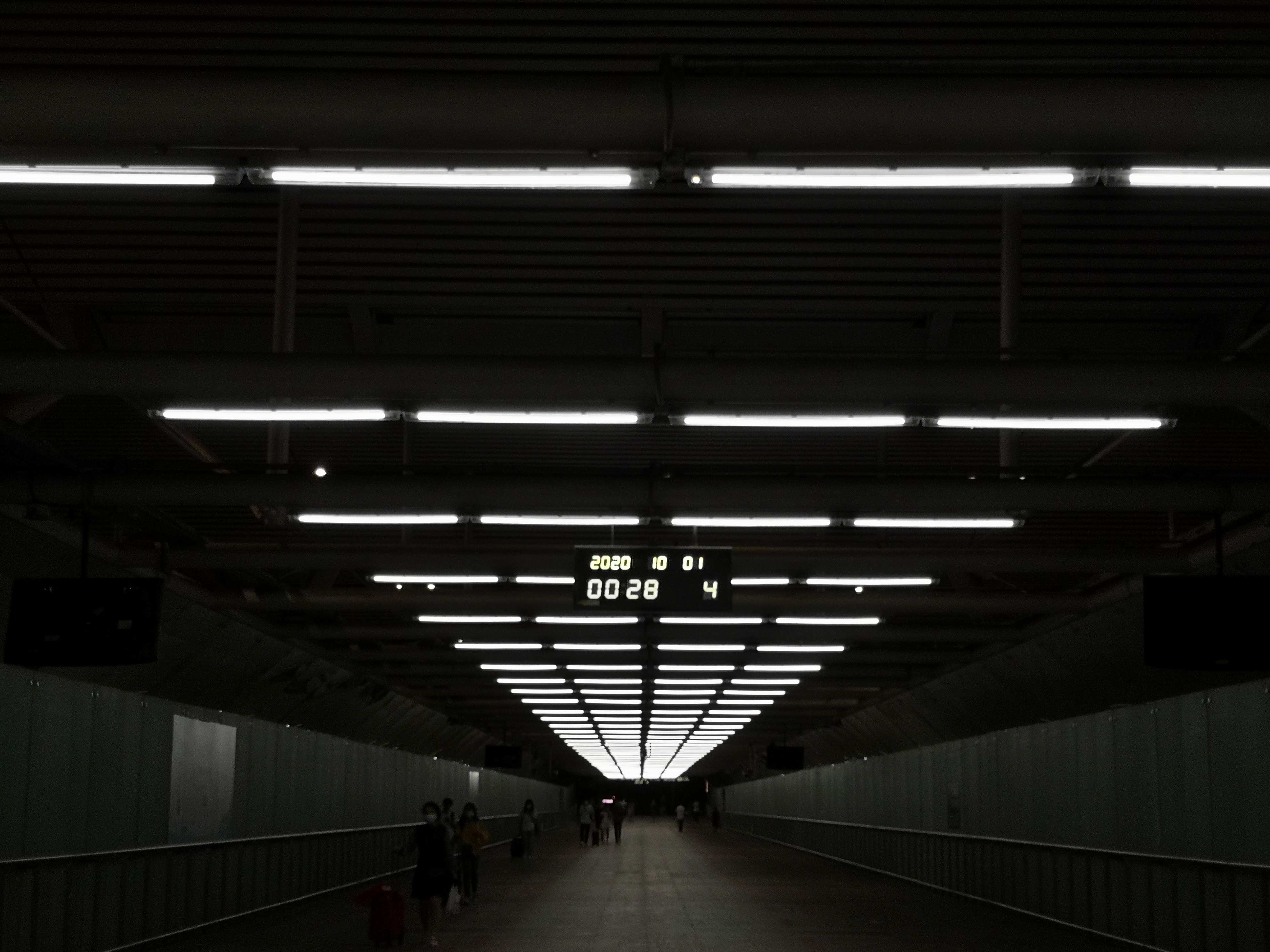

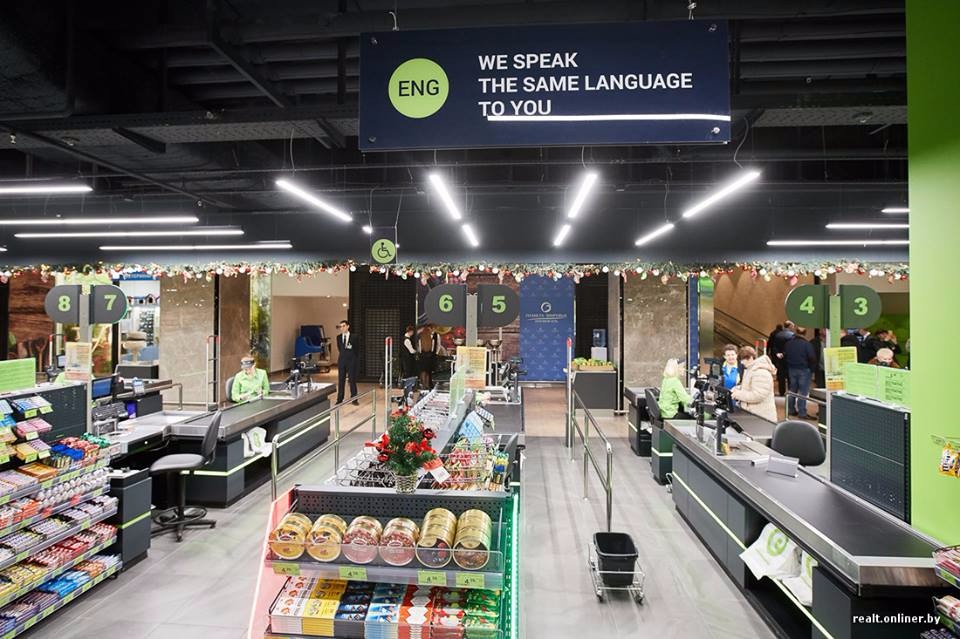

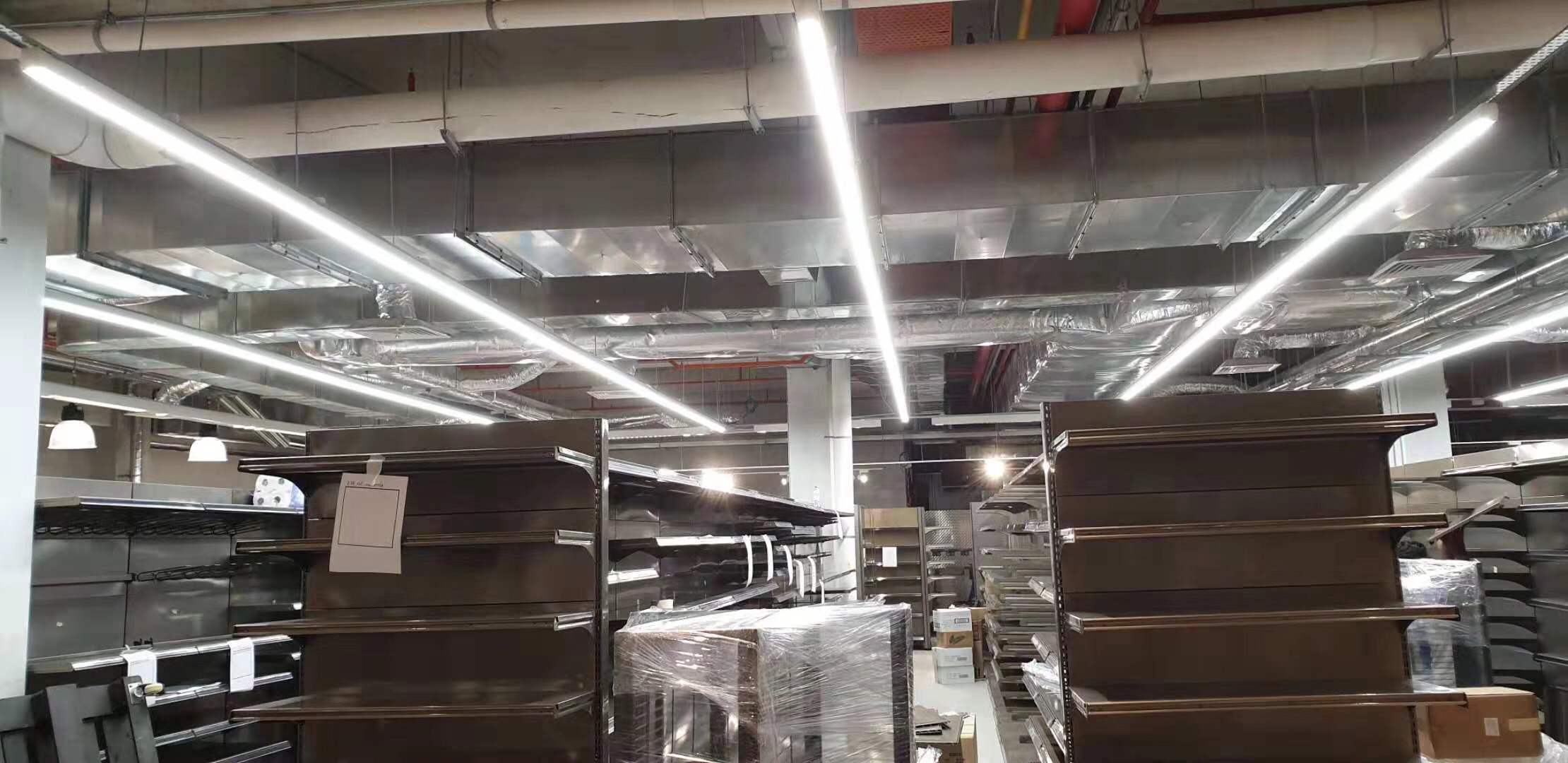

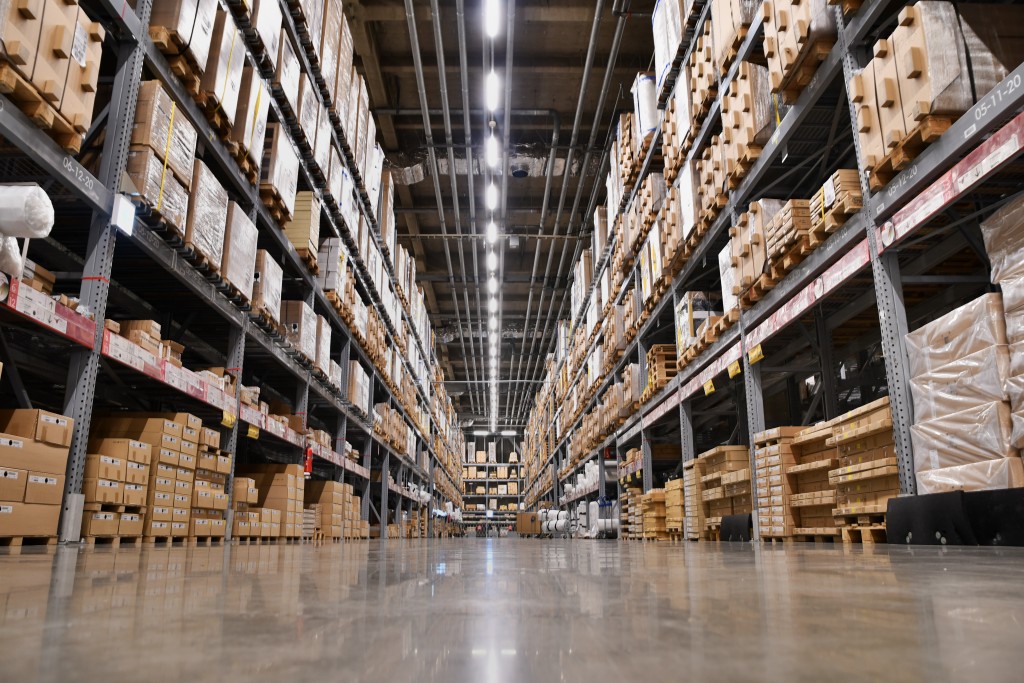

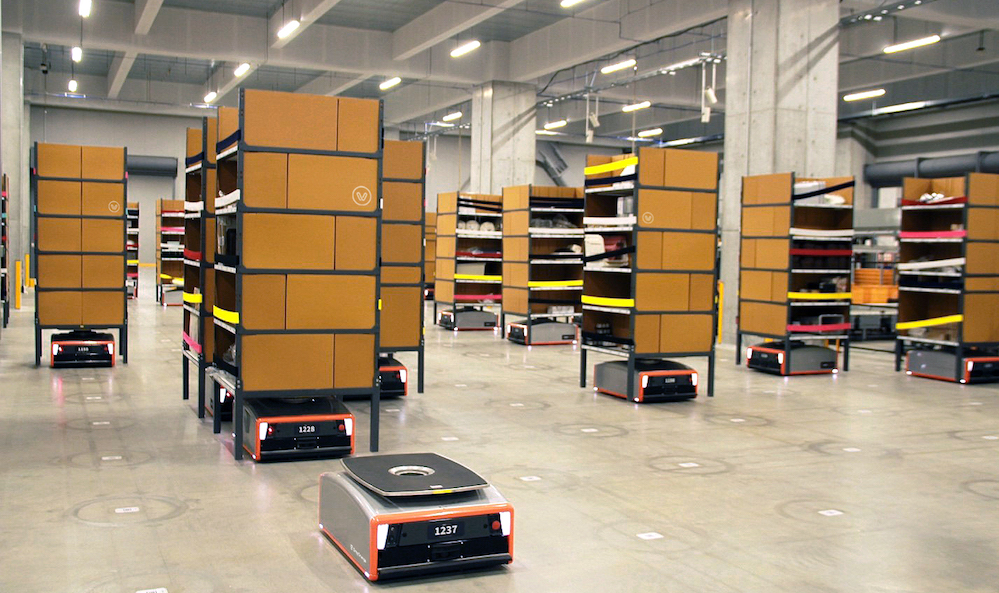

Supermarket, Warehouse, Workshop, Office, Car Parking Industrial etc.
CRI (Ra>):
80
UGR:
<19
Beam Angle:
25°;60°;90°;120°; Asymmetric; Double Asymmetric
CCT:
3000K/4000K/5000K/6000K
PF:
>0.95
THD:
<15%
Installation Method:
Chain, Cord, Rod, Surface mounted
Lumen:
2240lm-16000lm
Driver:
Flicker Driver / Non-flicker Driver
IP Rating:
IP20/IP54
Light Efficiency:
160lm/w
Function:
Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light
Working Temperature:
-20 - 65 ℃
Lifespan (hours):
50000
Description
Contact Supplier
Description
Product Details

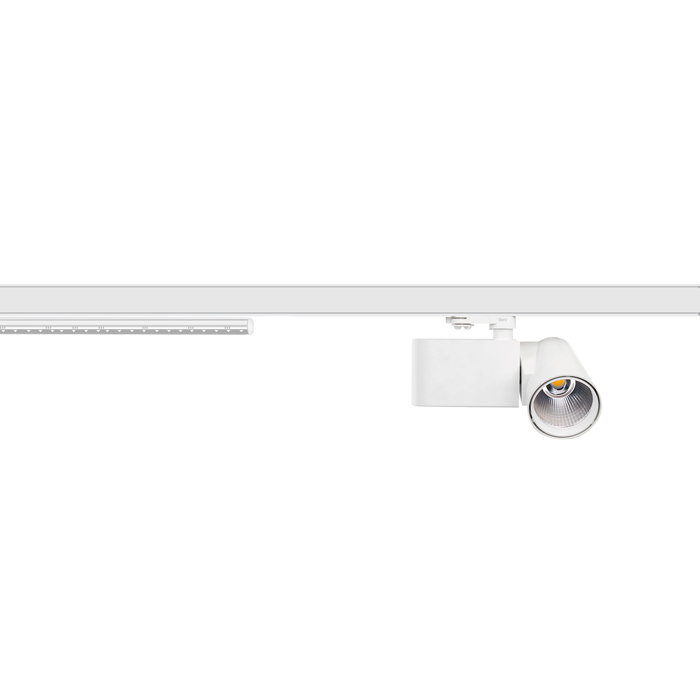

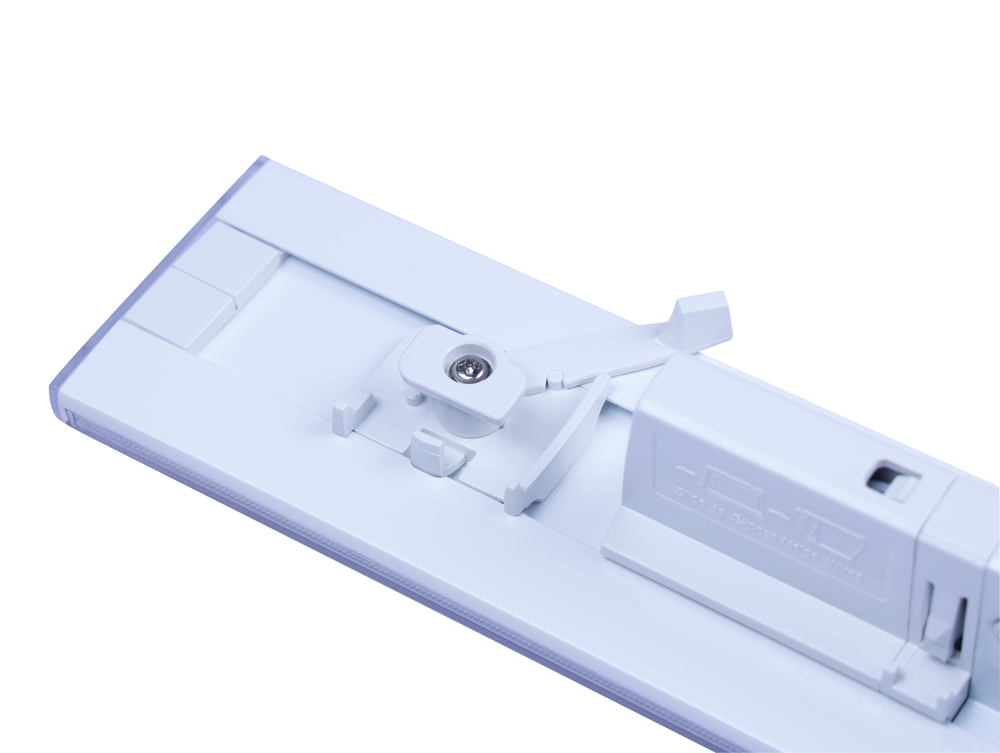

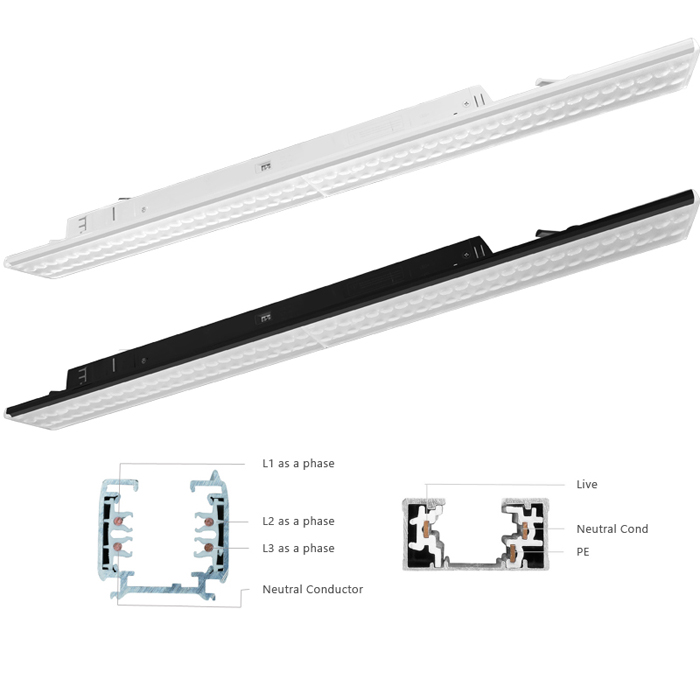

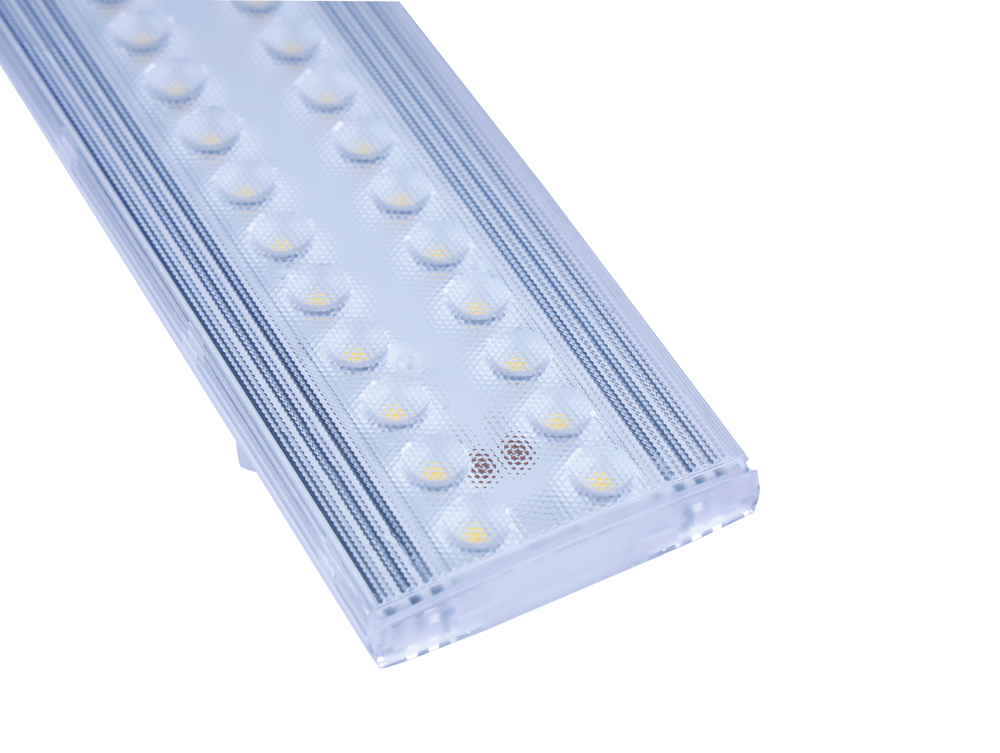

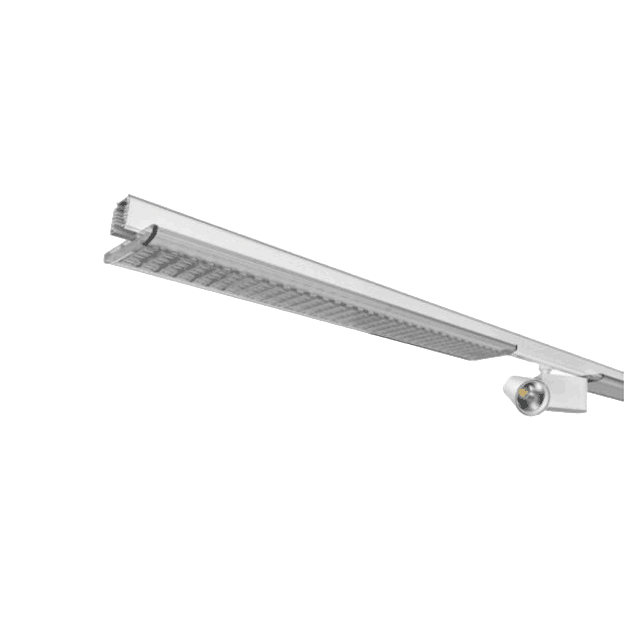

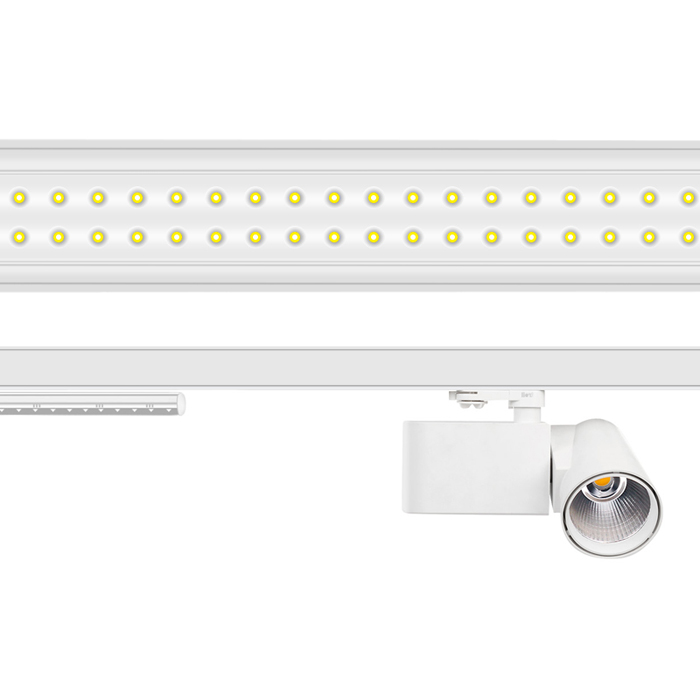

Coreshine T-LINE track linear is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.
- Cost-effective light-line solution for industrial, commercial and other applications
- Good quality of light with high lumen output to meet different requirements
- Easy to install, reducing time, labor, packaging waste and complexity
- Flexible solution Indirect Linear Lighting System is a new innovative solution for creating beautiful and efficient lighting.
Length | Power | Lumen | Code No. |
600mm | 14W | 2240lm | CTL-0614-X1X2-X3WH |
600mm | 20W | 3200lm | CTL-0620-X1X2-X3WH |
1200mm | 35W | 5600lm | CTL-1235-X1X2-X3WH |
1200mm | 50W | 8000lm | CTL-1250-X1X2-X3WH |
1500mm | 35W | 5600lm | CTL-1535-X1X2-X3WH |
1500mm | 50W | 8000lm | CTL-1550-X1X2-X3WH |
2400mm | 70W | 11200lm | CTL-2470-X1X2-X3WH |
2400mm | 100W | 16000lm | CTL-24100-X1X2-X3WH |
Why Choose Coreshine
CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.
- Established in 2005
- Located in Shenzhen
- Number of employees 200 staffs
- 13,000 square meter 9 floors of workshop + 1 floor of office
- Complete Industry Layout: R&D, Production, Marketing
- Our Goal: To be World Leader of Linear Lighting System
Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.
R&D
- Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
- Their average industry experience is more than 10 years.

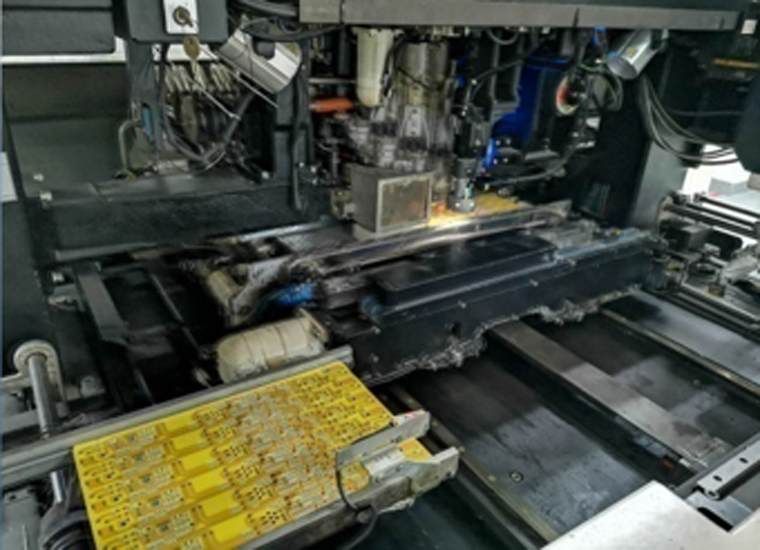

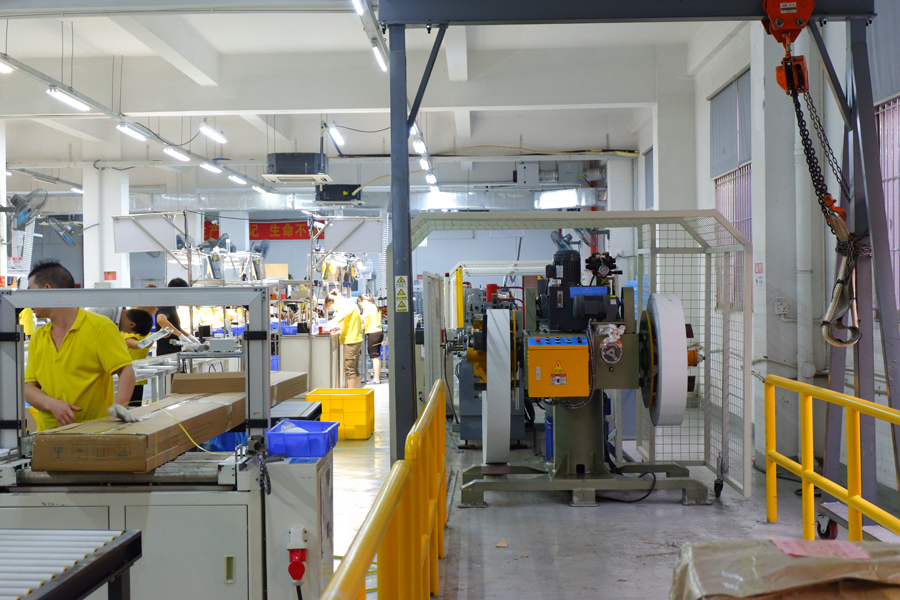

Production
- More than 95% of our accessories are made by ourselves.
- We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
- All our employees have professional training before going to work, and only 100% passed of the employees can be hired.
QC
- Our QC department consists of 11 people, all of them are very experienced in this field.
- They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.
