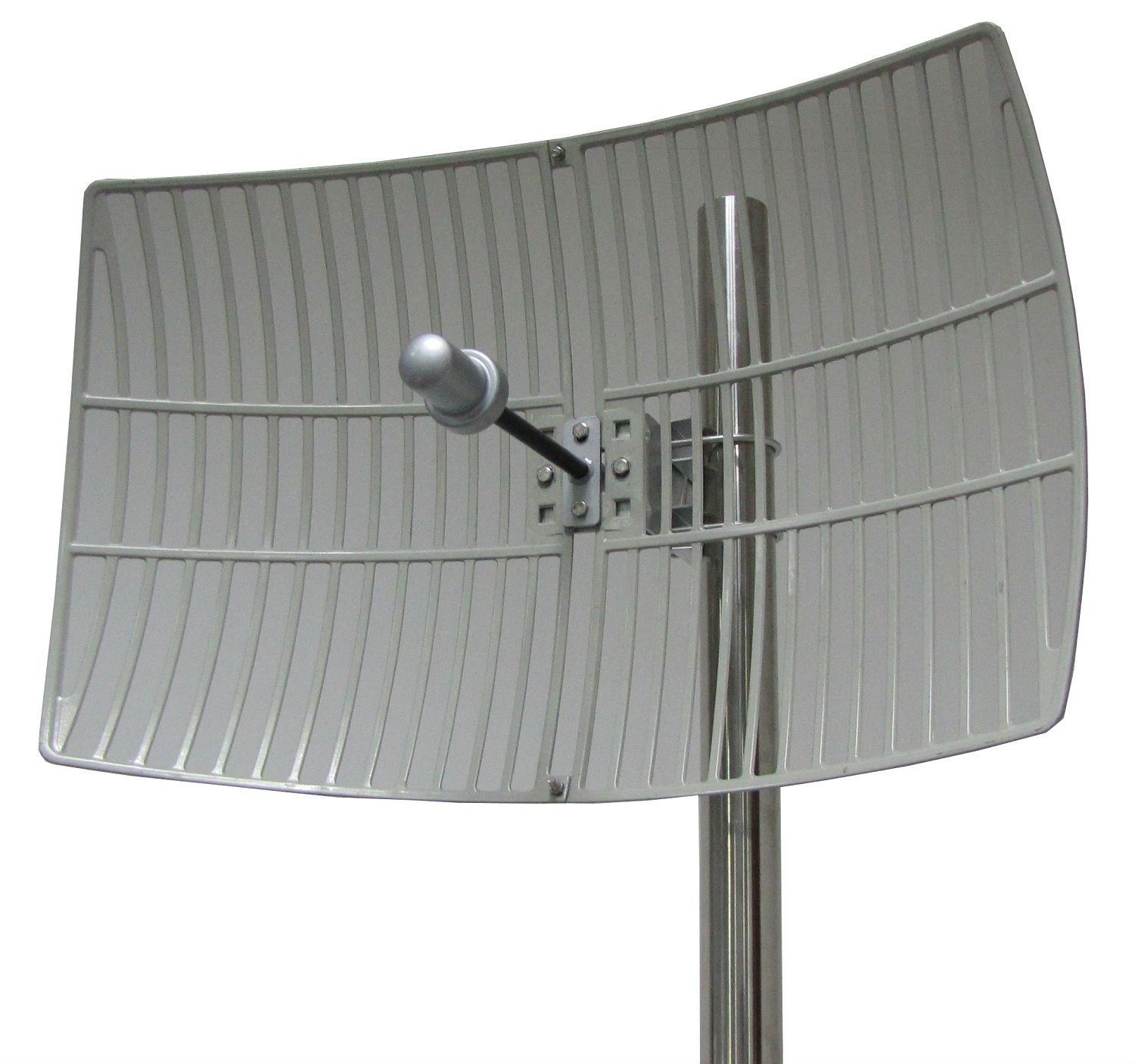

5100-5800MHz Grid Parabolic Antenna
Production Lead Time:
7 day(s)
Model No.:
SHD-D-515810-SP(B)
Brand:
SHD/OEM
Size:
400*600mm
Port:
Guangzhou, Shenzhen
Type of Payment:
100% before shipment by TT
Minimum Order Quantity:
50
Customised:
Yes
Description
Contact Supplier
Description

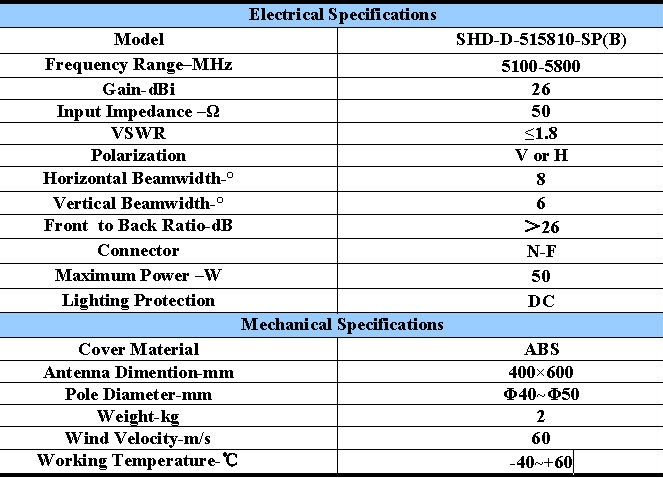

- Frequency Range–MHz: 5100-5800
- Gain-dBi: 26
- Input Impedance –Ω: 50
- VSWR: ≤1.8
- Polarization: V or H

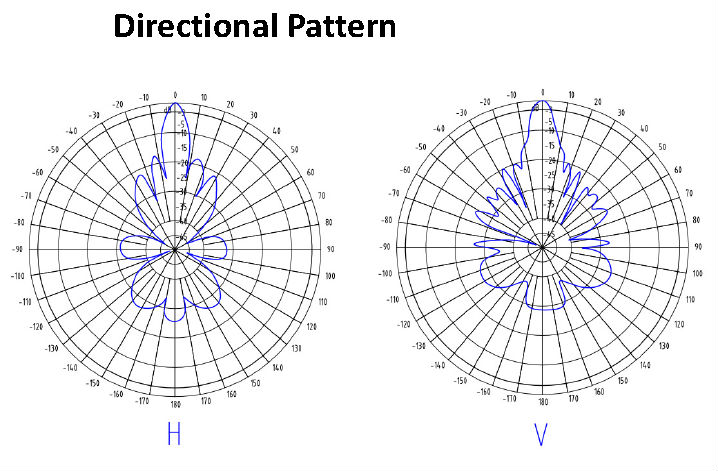

- Horizontal Beamwidth-°: 8
- Vertical Beamwidth-°: 6
- Front to Back Ratio-dB: >26
- Connector: N-F
- Maximum Power –W: 50
- Lighting Protection: DC
- Cover Material: ABS
- Antenna Dimension-mm: 400*600

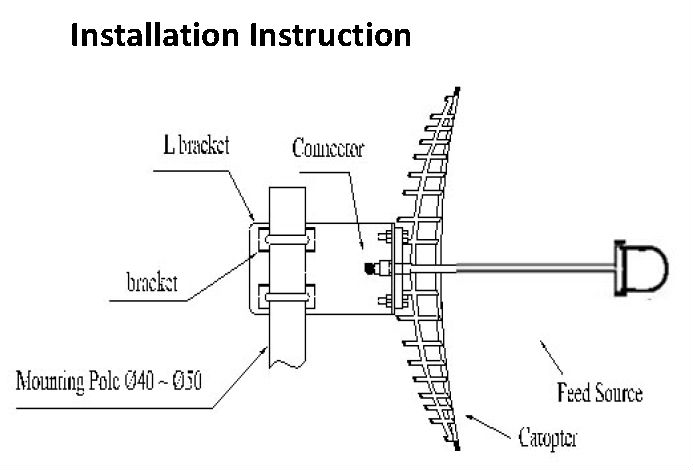

- Pole Diameter-mm: Φ40~Φ50
- Weight-kg: 2
- Wind Velocity-m/s: 60
- Working Temperature-℃: -40~+60
