55 mm cutout led down light 7w private design high-end products
US $4.75 - US $6.65
US $5.00 - US $7.00
Production Lead Time:
7-15 day(s)
Shipping Method:
AIR/ SEA
Brand:
KWT
Feature:
Patent Design
Including Bulbs:
Yes
Customised:
Yes
Is Dimmable:
Yes
Material:
Aluminum
Lighting Style:
Modern
Light Source:
LED
Pattern:
220-240v
Weight:
0.45kg
Size:
D65*H91mm
Model No.:
RC5507GB
Description
Contact Supplier
Description
Product Description:

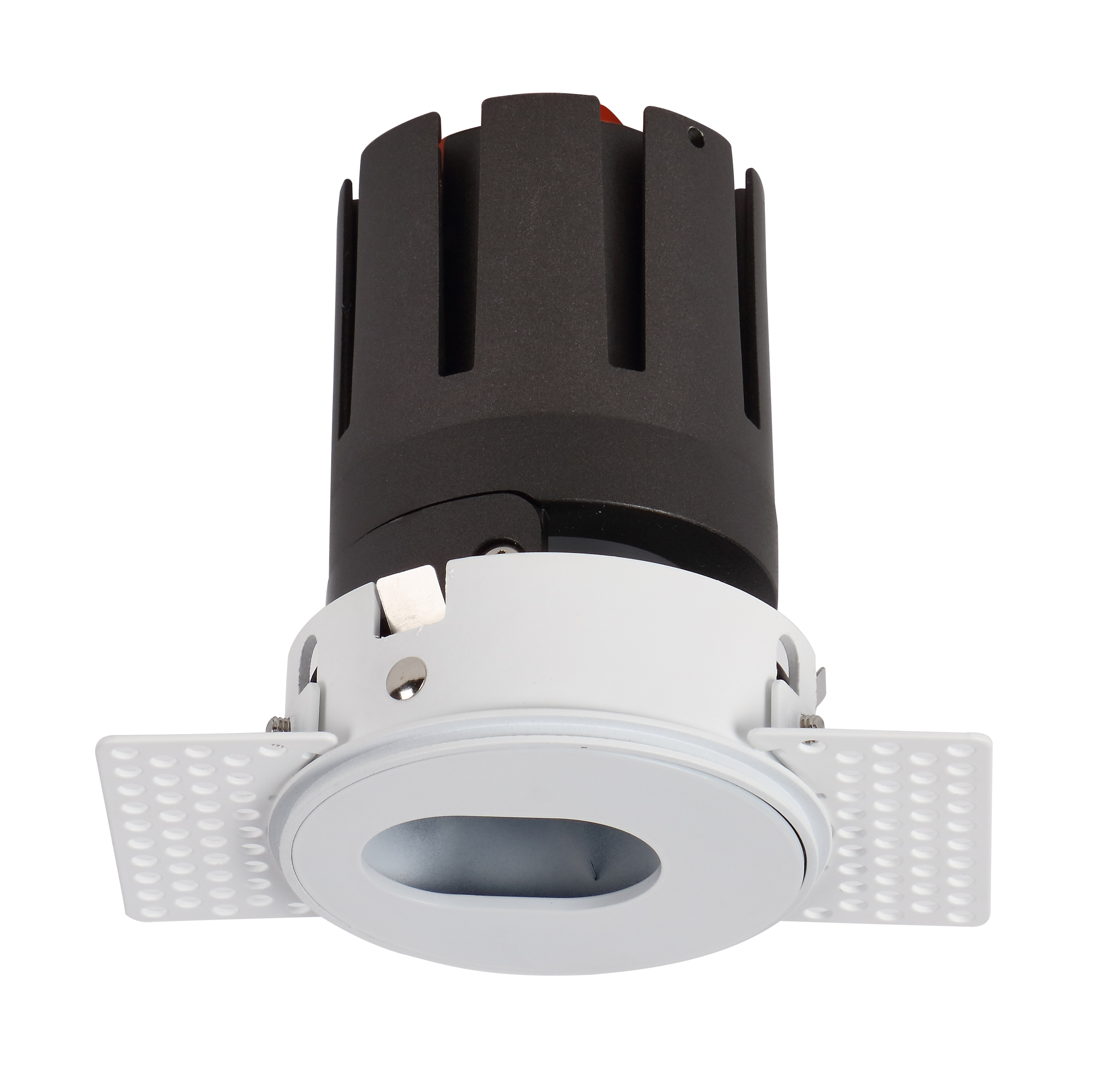

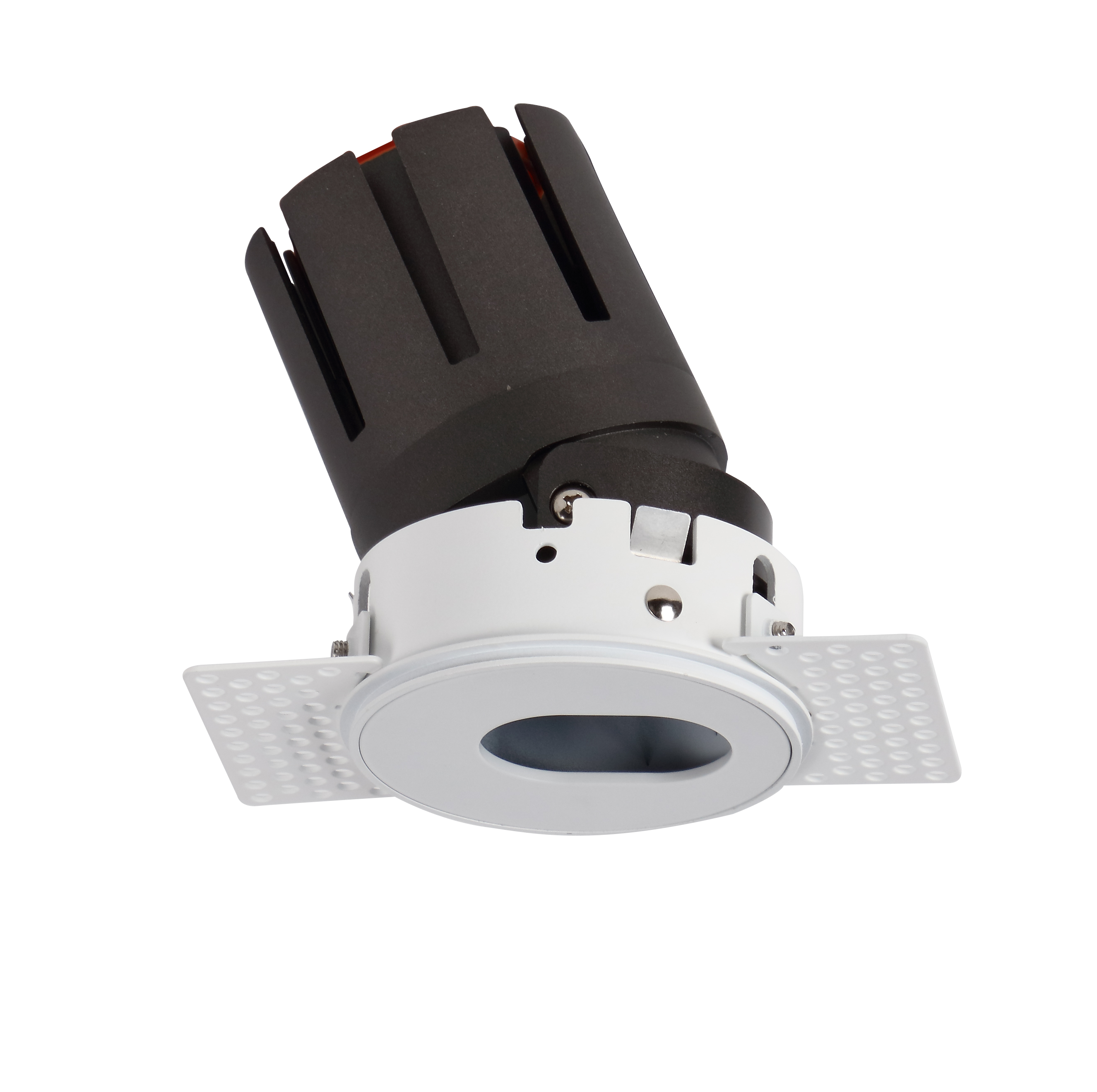

55 mm cutout led down light 7w private design high-end products
:RC5507GB originally researched and
developed by KWT.
COB CITIZEN chip, various beam angle 15°, 25°, 35°,50° for option brilliant
quality,
more than 0,000 hours life span
65mm diameter round face cover, use international top
anti-glare design with various free replacement accessories, non-
flflicker driver, triac dimmable and 1-10V dimmable to fifit different dimming
system, 5 years warranty
Details:
| Nominal wattag | 7W |
| Input | 100-240V/220-240V 50/60Hz |
| Output | 33VDC 210mA |
| Color temperature | 2700K/3000K/4000K |
| Color rendering index | ra>90 |
| Beam angle | 15°/25°/35°/50° |
| 2700k Luminous flflux | 15° 366lm/25° 457lm/35° 468lm/50° 433lm |
| 3000k Luminous flflux | 15° 391lm/25° 491lm/35° 501lm/50° 469lm |
| 4000k Luminous flflux | 15° 395lm/25° 513lm/35° 512lm/50° 482lm |
| Product color | white |
| Dimming | No Dim/Triac Dim/1-10V Dim |
| Cutout | 55mm |
| Ceiling specifification | 8-15mm thick |
| Type of protection | IP20 |
| Warranty | 5 YEARS |
| Operation temperature | -20 --- 50℃ |
Product features：
- High quality citizen cob led, CRI>90, SDCM<3
- Anti-glare design with various free replacement
accessories
-Universally adjustable, 0-30° in vertical, and 360°
in horizontal
- structure, easier to assemble, install and
disassemble, no damage to the ceiling flfloor
-Family structure appearance design to meet with the
uniform aesthetic requirement
- Long life,>50,000 hours, 5 years warranty
Packing Details :
| Product model | RC5507GB | |
| Packaging unit | Folding carton box | Shipping carton box |
| Packaging Qty | 1 pcs | 36 pcs |
Dimensions(Lx Wx H) | 85×125×110 mm | 280×400×480 mm |
| Volume | 1.36 dm³ | 53.76 dm³ |
| Gross weight | 0.45 kg | 16.32 kg |
Installation:
1.Open the hole in the ceiling
2.Connect the power lead with the terminal block of the led
driver (Picture two)
3.As shown in the following fifigure, the lamps mounted in
the mounting hole, and ensure string (Picture three)
Disclaimer
Subject to change without notice, Errors and omission excepted.
Always make sure to use the most recent release.
