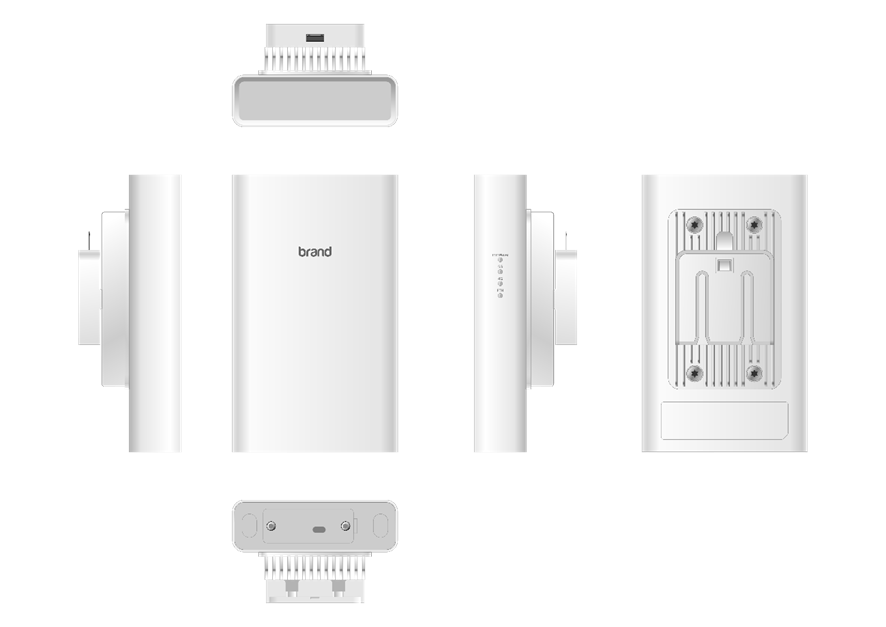

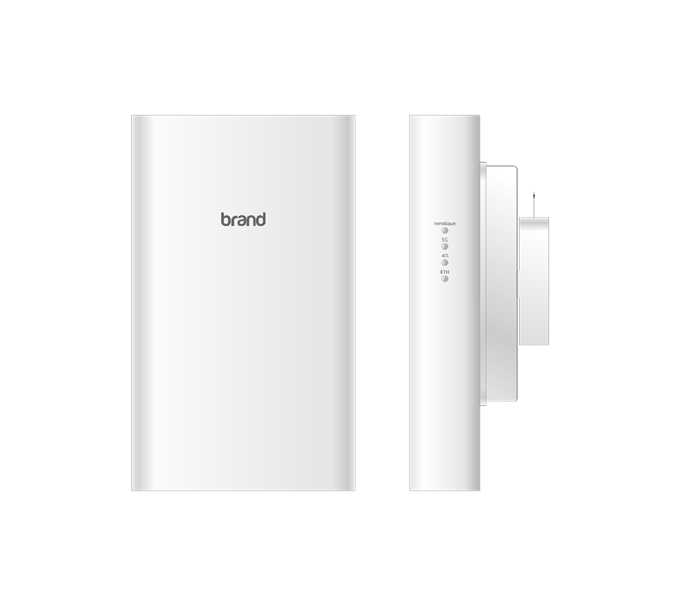

5G NR mmWave outdoor CPE
US $320.00 - US $350.00
Production Lead Time:
60 day(s)
Shipping Method:
by Sea or Air
Brand:
JATONTEC
Model No.:
JT9000
Application:
3GPP R16 Qualcomm X62/65 chipset
Customised:
Yes
Description
Certification & Document
Contact Supplier
Description
5G outdoor CPE is a high-speed packet access FWA product. It is a multi-mode wireless terminal for home broadband, Office and industrial park. You can connect the JT9000 with the RJ45 interface of indoor CPE or connect the CPE with a computer. In the service area of the 5G-mmWave/5G-Sub6/LTE/DC-HSPA+/HSPA+/HSPA/UMTS network, you can surf the Internet and send/receive emails cordlessly. The CPE is fast, reliable and easy to operate.
Information | Dimension | 186*111*35 mm |
Weight | About 850g | |
Color | White | |
Air Interface | Technical Standard | 5G mmWave NSA/SA 5G Sub6 SA/5G Sub6 NSA |
5G/LTE/DC-HSPA+/HSPA+/HSPA/UMTS | ||
Operating Frequency | 5G mmWave:257/N258 | |
5G sub6:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 | ||
LTE-FDD:B1/B3/B4/B5/B7/B8/B18/B19/B20/B28/B66 | ||
LTE-TDD:B34/B38/B39/B40/B41/B42 | ||
WCDMA:B1/B5/B8 | ||
Performance | 5G Peak Data Throughput(theoretical) | DL: BW 4x100MHz, up to 4.3Gbps (mmWave) UL: BW 2x100MHz, up to 2.3Gbps (mmWave) DL: BW 100MHz, up to 2.4Gbps (Sub6G) UL: BW 100MHz, up to 0.9Gbps (Sub6G) |
Hardware | Receive Diversity | Support |
MIMO | Support DL 4x4 MIMO | |
Internal Memory | 4Gb+4Gb | |
BB Chipset | Qualcomm SDX62 | |
ERIP | 5G mmWave: 36dBm/5G Sub6: 28dBm | |
BLE | Support (for device configure) | |
USIM | 1*4FF SIM (nano card) | |
Power consumption | <20W | |
Ethernet | 2.5GE LAN | |
Power | POE(nonstandard default) | |
LED | 5G mmWave Indication LED 5G network Indication LED 4G network Indication LED ETH status LED | |
USB | USB 2.0 micro (for Debug only) | |
Antenna | Internal Antenna:5G/4G*5, QTM547*1 | |
Buttons | Reset hole | |
ESD | ESD Protection circuit; 8kV contact / 10kV air discharge | |
Software | SW Update | Local Update/FOTA/WebUI |
IP-Passthrough | Support | |
IPv4/IPv6 | Support | |
UI | WebUI | |
Data Statistics | Support | |
Automatic APN Match | Support | |
SNTP/ HTTP/HTTPS | Support | |
APP | BLE APP Support | |
Install | Hole/Wall | |
Environment | Waterproof level | IP65 |
Operating Temperature | -40°C ~ +50°C | |
Storage Temperature | -40°C ~ +70°C | |
Humidity | 5%~ 95% |
