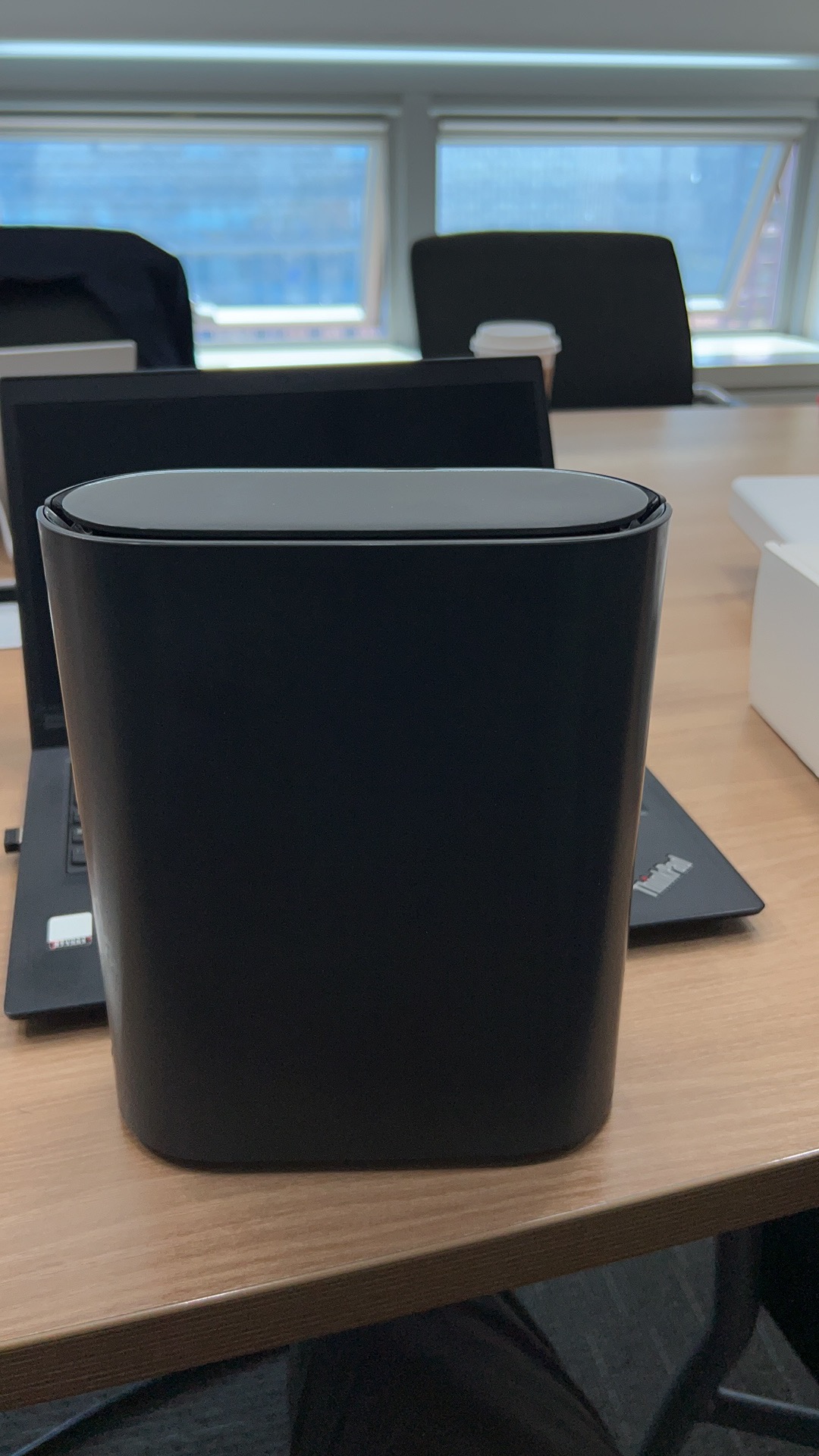

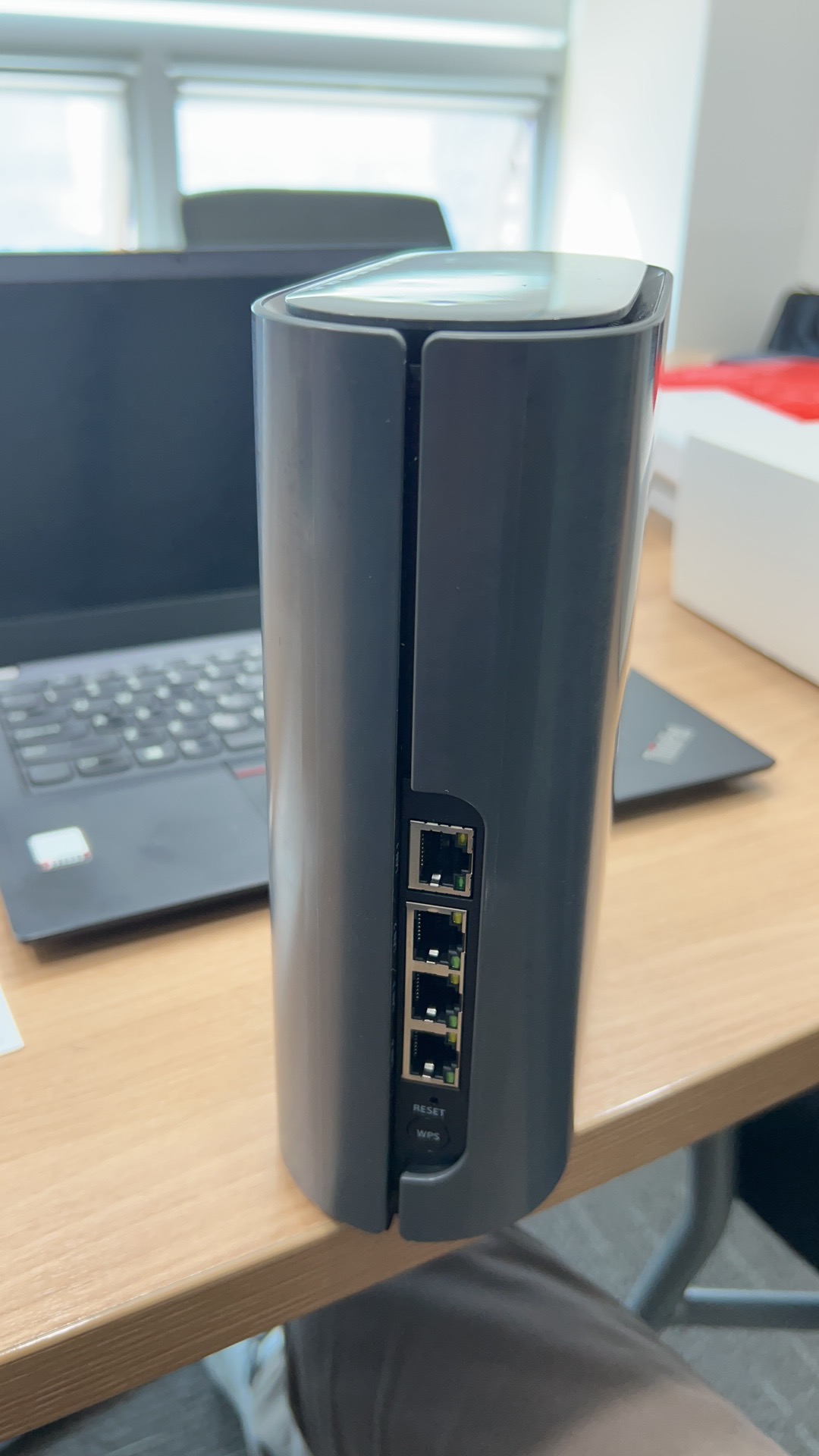

5G mmWave indoor CPE, n257/n258
US $399.00 - US $499.00
Production Lead Time:
60 day(s)
Shipping Method:
By Sea or Air
Application:
3GPP R16 5G NR mmWave
Brand:
JATONTEC
Model No.:
JT5100V
Customised:
Yes
Description
Contact Supplier
Description
| Technical Standard | Compatible with WCDMA, FDD-LTE,TDD-LTE,5G NR Sub-6GHz, 5G NR mmWave 802.11 a/b/g/n/ac/ax | |
| Frequency | mmW:N257/N258 5G NR Sub-6G: SA&NSA N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 LTE: FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 TDD: B34/B38/B39/B40/B41/B42/B43 WCDMA: B1/B5/B8 | |
| Bandwidth | mmWave: 50MHz/100MHz/200MHz 5G NR：TDD:100/90/80/70/60/50/40/20MHz FDD:50/40/20/10MHz4G LTE: 20MHz | |
| mmWave | SCS bandwidth | 120KHz |
| Total Bandwidth | DL: 800MHz / UL: 400MHz Max BW:200MHz/CC | |
| CA capability | DL:8CC (max 800MHz) UL:4CC (max 400MHz) | |
| MIMO | DL/UL： 2*2 MIMO | |
| NRDC/ENDC | refer to mmW combos sheet | |
| DL/UL modulation | 256QAM/64QAM | |
DL/UL Peak throughput | DL: FR1(100MHz)+FR2(800MHz) up to 10Gbps UL: FR1(100MHz)+FR2(400MHz) up to 3.38Gbps | |
