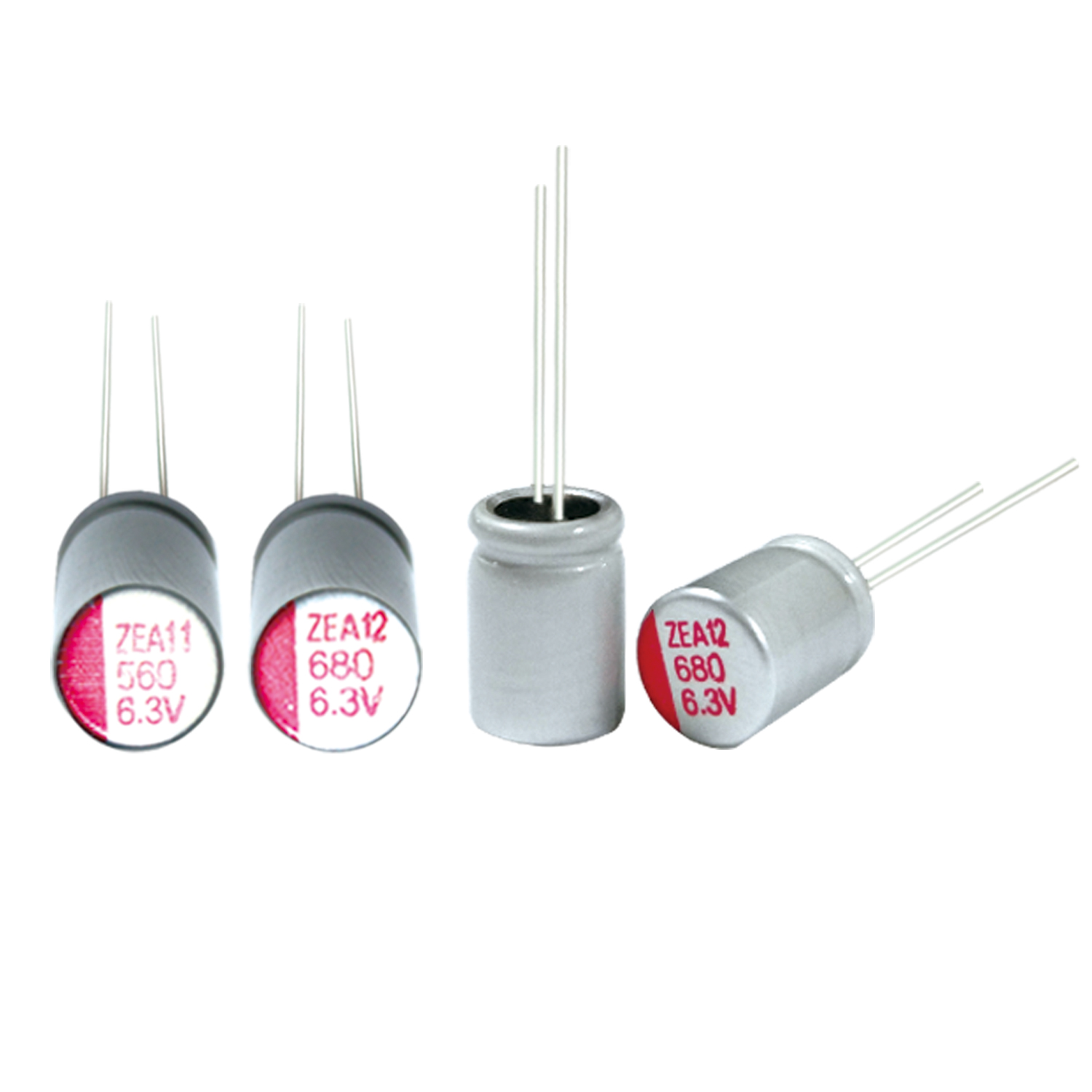

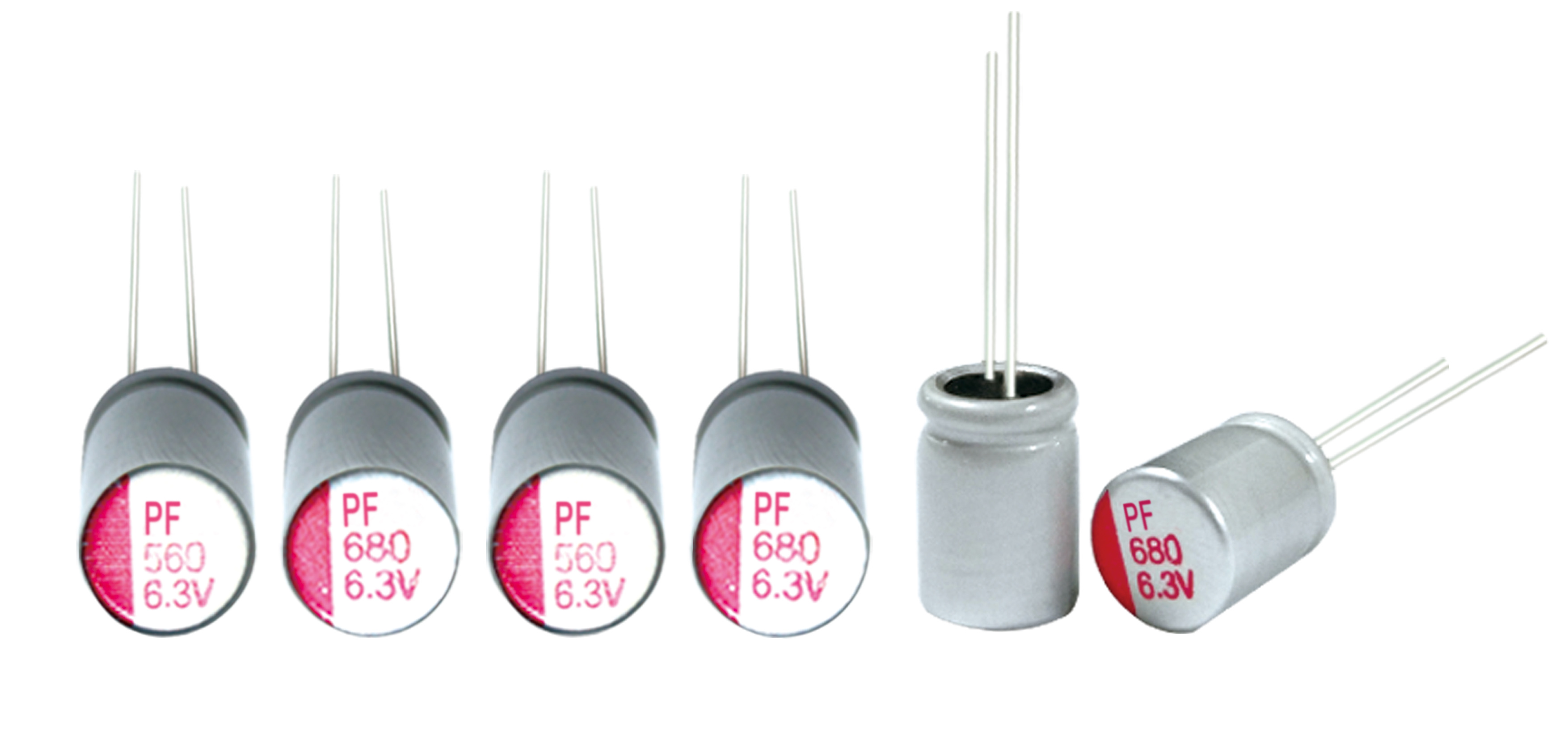

5MM Solid Capacitor
Model No.:
PF/PR/PW
Brand:
JH
Colour:
Green, Black, Gold, Purplish Blue
Size:
5*7~10*12
Port:
Shenzhen, Shanghai, Changsha
Type of Payment:
T/T, L/C
Minimum Order Quantity:
500,000 piece(s)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
- Rated Working Voltage Range
- 额定工作电压范围. 2.5V-16VDC
- Category
- Temperature Range
- 工作温度范围 -55~+125℃
- Capacitance Tolerance 静电容量允许偏差 ±20%(20℃,120HZ)
- Leakage Current 漏电流(2分钟) Leakage Current ≦0.2CV OR500uA whichever is greater （after 2 minutes ） 漏电流 ≦0.2CV或500uA 取较大值 （施加额定电压2分钟后） Working voltage 额定电压(V) 2.5 4 6.3 10 16
- DF 损失角之正切值 0.12 0.12 0.12 0.12 0.12
- Low Temperature Characteristics (Max impedance Ratio) 低温特性（阻抗比） Working voltage 额定电压(V) 2.5 4 6.3 10 16 100KHz
- Z(-25℃)/Z(+20℃) ≦1.25 ≦1.25 ≦1.25 ≦1.25 ≦1.25
- Z(-55℃)/Z(+20℃) ≦1.25 ≦1.25 ≦1.25 ≦1.25 ≦1.25
