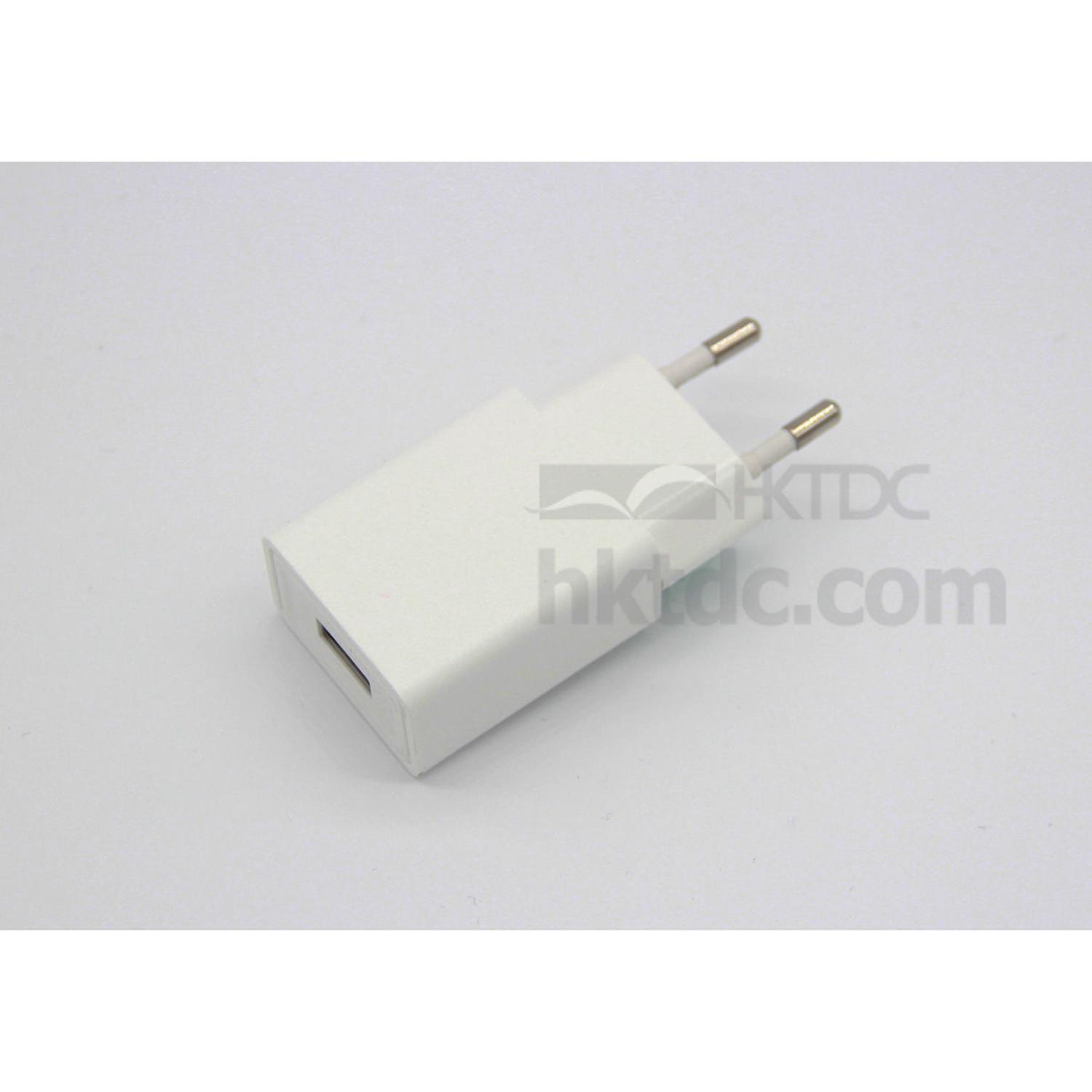

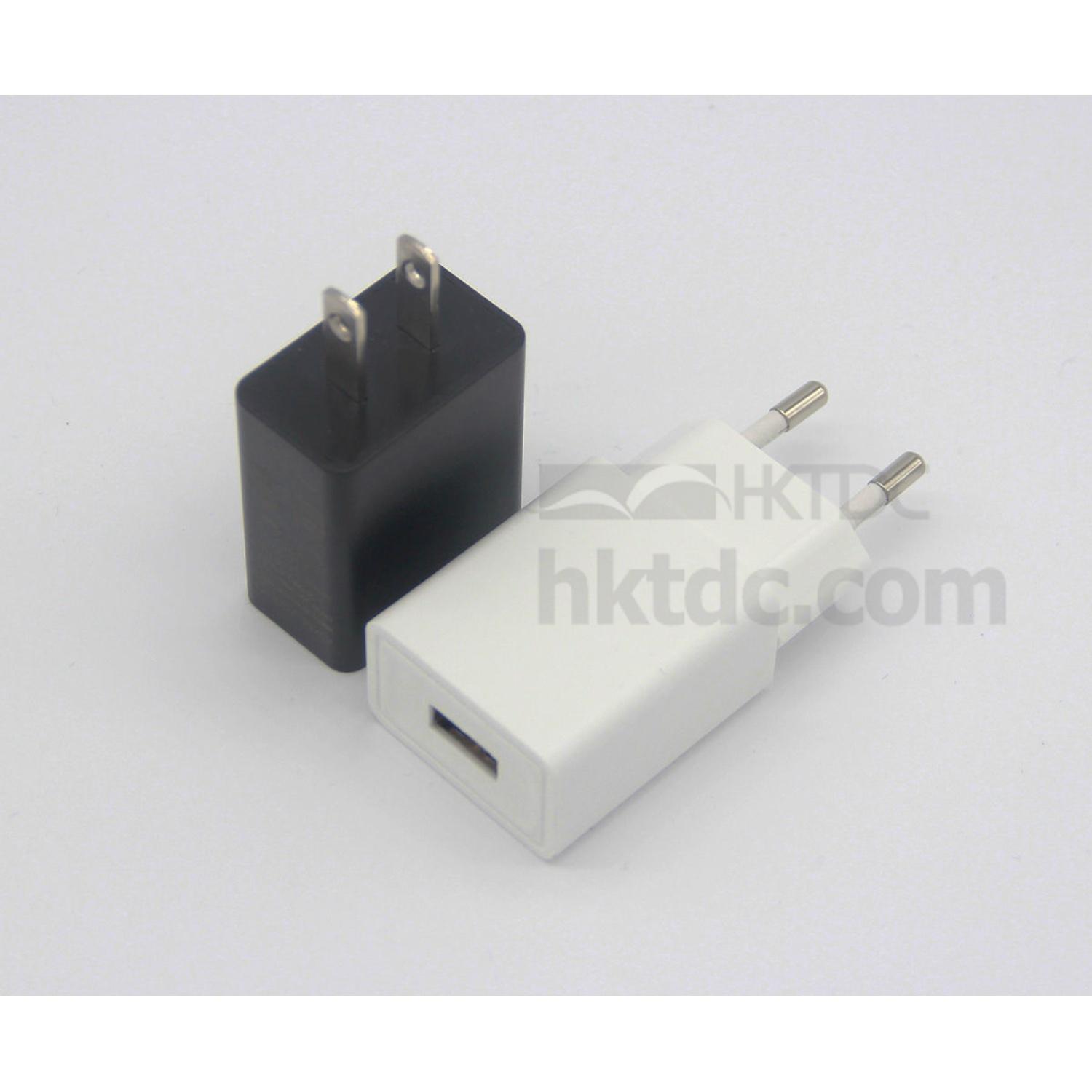

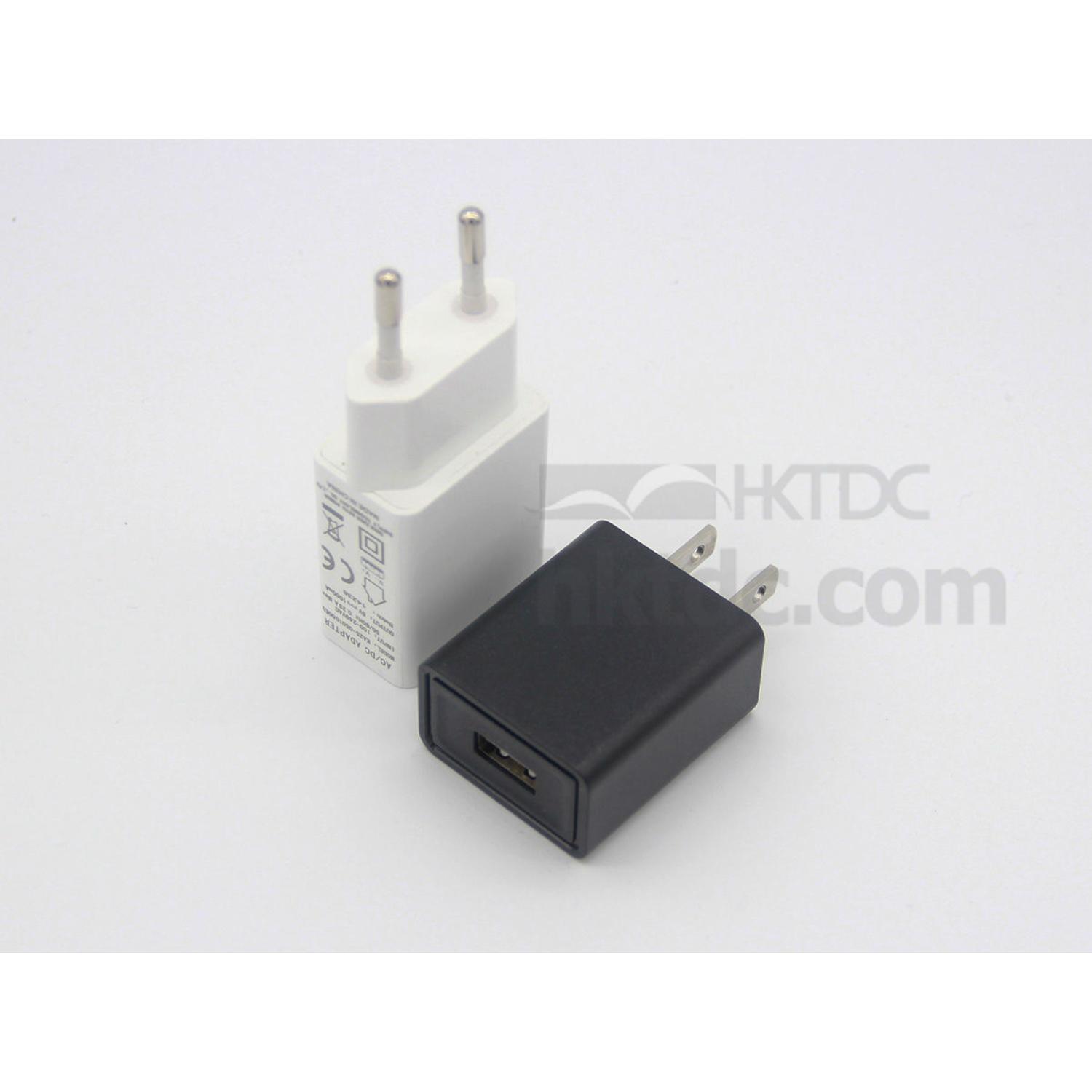

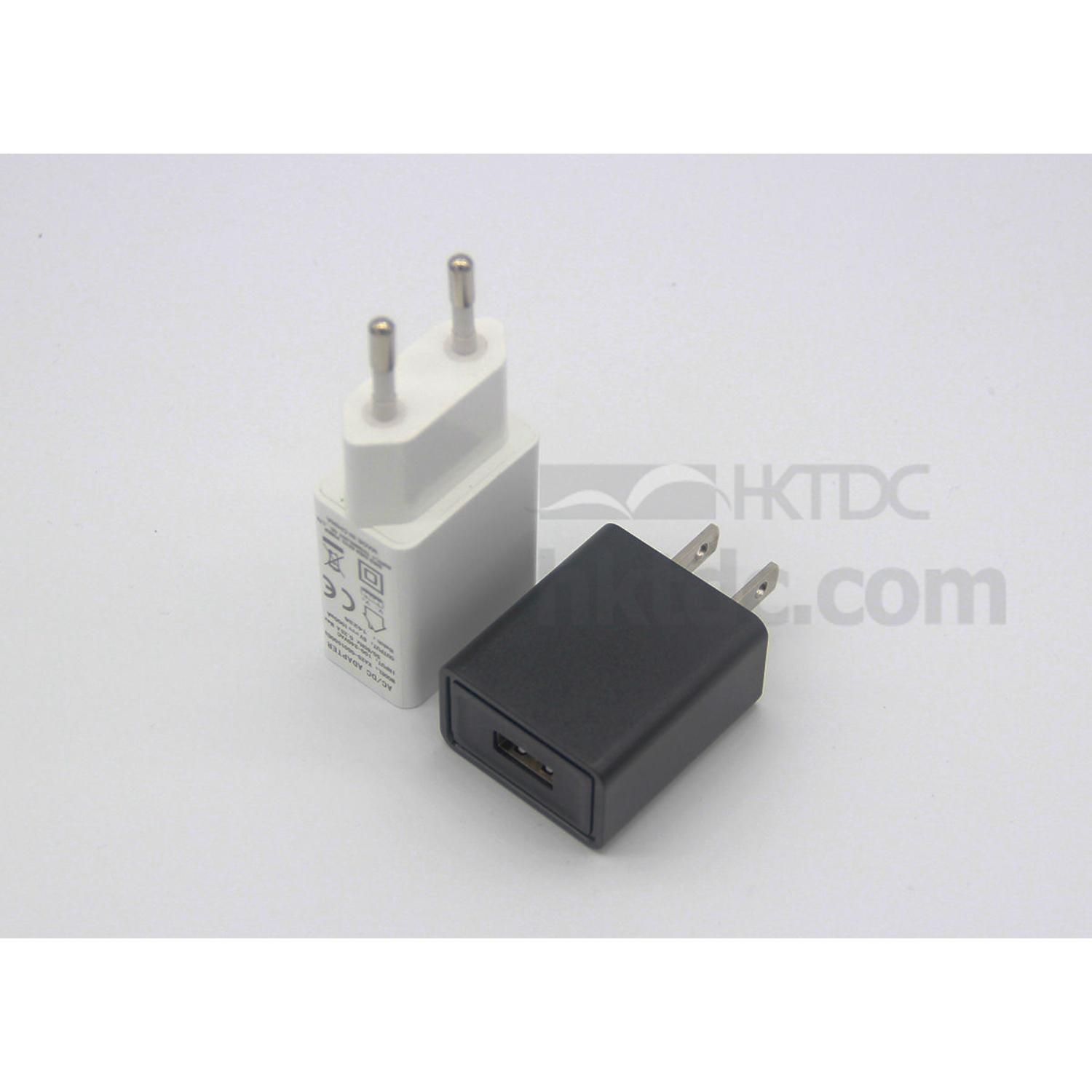

5V 1A/2A EU Plug USB Charger for Phones
Share this page
Model No.:
KA25
Brand:
OEM/ODM
Colour:
Black, White, Blue, Pink
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
1,000
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
Specifications:
  • Input voltage: 100-240V AC (Range: 90-264V AC)
  • Input current: 0.35A maximum
  • Frequency: 50/60Hz (Frequency range: 47-63Hz)
  • Output voltage: 5V
  • Output current range: 0.1-2A
  • Ripple and noise: 150mV maximum
  • Power consumption at no load: 0.1W maximum
  • Conversion efficiency: >73%
  • Voltage regulation/load regulation: ±5%
  • CC/CV
  • Hi-pot test: 3000V AC/ 1 min/ 5mA
  • Leakage current: 0.25mA maximum at 240V AC
  • With over-current, over-voltage, over-temperature and short-circuit protection function
  • Operating temperature: 0 to 40°C
  • Safety standards: UL/ EN60950/ GB4943
  • EMC standards: EN55022 class B/FCC Part 15 class B, EN55024/A1:2001/EN61000
Applications:
  • Wireless communication electronics
  • Network hardware
  • Personal digital
  • Audio and video devices
  • Medical equipment
  • Home appliances
