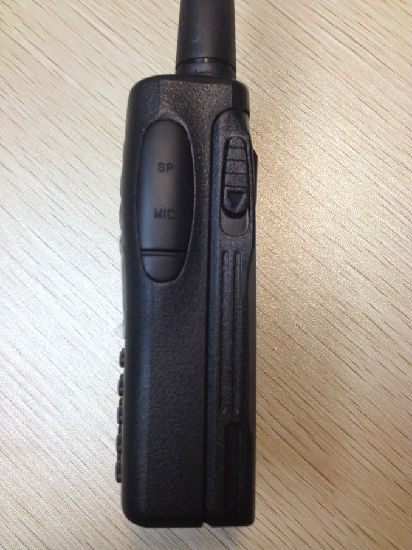

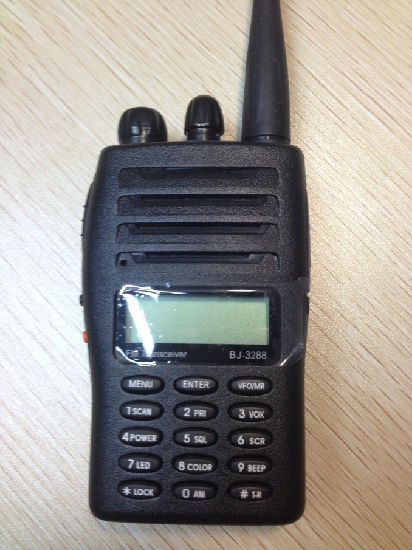

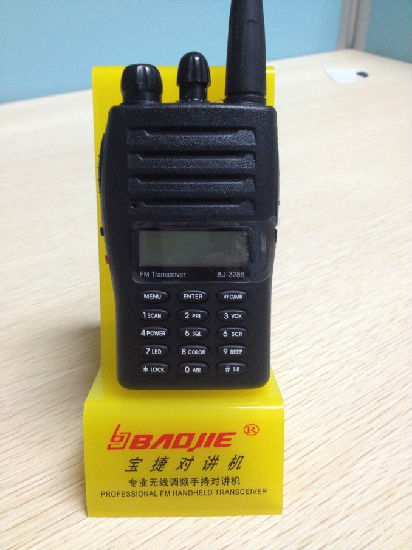

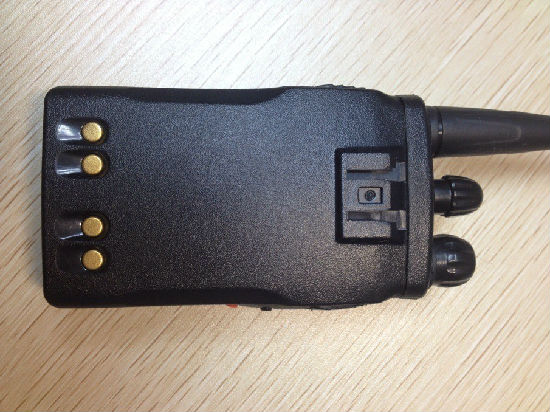

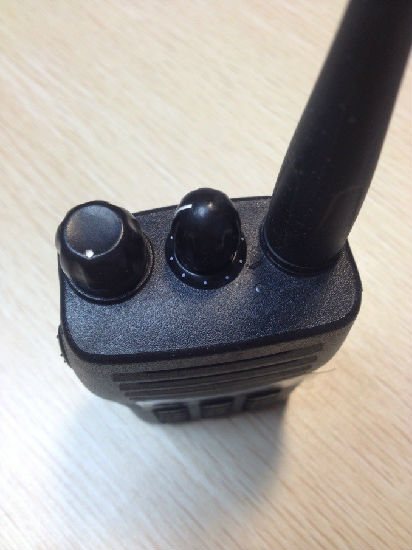

5W 5-8KM Two Way Radio BaoJie
Model No.:
BJ-3288
Brand:
BAOJIE
Colour:
Black
Size:
100 x 55 x 32mm
Port:
Quanzhou, Xiamen
Type of Payment:
PayPal, T/T, Western Union
Minimum Order Quantity:
100
Description
Contact Supplier
Description
1.Handheld Transceiver 5W walkie talkie mini walkie talkie
2.VHF 5W/UHF 4W output
3.128 channel memory
4.Ani code
5.Programmable
Handheld Transceiver 5W BJ-3288 walkie talkie mini walkie talkie
Features:
1. Three-color LCD backlight display
2. 128 memory frequency channels
3. Built-in VOX
4. Scan function
5. Emergency alarm
6. PC programmable
7. Wide/Narrow bandwidth selectable
8. Keypad lock
9. Ani function(optional)
10. Scrambler(optional)
11. VOX function
12. Squelch level selectable
13. Beep function
14. Setting QT
15. Setting offset frequency
16. Offset frequency selectable
17. Frequency step s electable
Specifications
General Specifications
Frequency Range VHF:136-174MHz 230-260MHz UHF:350-390MHz 400-470MHz 440-512MHz
Memory Channels 128
Channel Spacing 25/12.5kHz
Working Mode Co-channel or Dis-channel Simplex
Voltage DC 7.2V
Battery 1200mAh(Li-ion)
Average battery life(at 5/5/90 duty cycle with battery saver ) About 15 hrs
Frequency Stability ±2.5PPM
Operating Temperature -20°C/+50°C
Antenna Impedance 50Ω
Dimensions (H×W×D)(mm) (W/Battery,W/o Antenna) 100mm × 55mm × 32mm
Weight about 220g
Transmitter
Power Output VHF 5W/UHF 4W
Maximum Deviation ≤5kHz
Audio Distortion ≤3%
Modulation Characteristic +3dB—-3dB
Adjacent Channel Power ≥65dB
Spurious Radiation ≤7.5μW
Occupied Bandwidth ≤16kHz
S/N 40/34dB
Receiver
RF Sensitivity <0.2μV
Audio Distortion ≤3%
Audio Response +2dB—-10dB
Adjacent Channel Selectivity ≥60dB
Intermodulation Rejection ≥60dB
Spurious Response ≥60dB
Block Characteristic ≥85dB
S/N 40/34dB
2.VHF 5W/UHF 4W output
3.128 channel memory
4.Ani code
5.Programmable
Handheld Transceiver 5W BJ-3288 walkie talkie mini walkie talkie
Features:
1. Three-color LCD backlight display
2. 128 memory frequency channels
3. Built-in VOX
4. Scan function
5. Emergency alarm
6. PC programmable
7. Wide/Narrow bandwidth selectable
8. Keypad lock
9. Ani function(optional)
10. Scrambler(optional)
11. VOX function
12. Squelch level selectable
13. Beep function
14. Setting QT
15. Setting offset frequency
16. Offset frequency selectable
17. Frequency step s electable
Specifications
General Specifications
Frequency Range VHF:136-174MHz 230-260MHz UHF:350-390MHz 400-470MHz 440-512MHz
Memory Channels 128
Channel Spacing 25/12.5kHz
Working Mode Co-channel or Dis-channel Simplex
Voltage DC 7.2V
Battery 1200mAh(Li-ion)
Average battery life(at 5/5/90 duty cycle with battery saver ) About 15 hrs
Frequency Stability ±2.5PPM
Operating Temperature -20°C/+50°C
Antenna Impedance 50Ω
Dimensions (H×W×D)(mm) (W/Battery,W/o Antenna) 100mm × 55mm × 32mm
Weight about 220g
Transmitter
Power Output VHF 5W/UHF 4W
Maximum Deviation ≤5kHz
Audio Distortion ≤3%
Modulation Characteristic +3dB—-3dB
Adjacent Channel Power ≥65dB
Spurious Radiation ≤7.5μW
Occupied Bandwidth ≤16kHz
S/N 40/34dB
Receiver
RF Sensitivity <0.2μV
Audio Distortion ≤3%
Audio Response +2dB—-10dB
Adjacent Channel Selectivity ≥60dB
Intermodulation Rejection ≥60dB
Spurious Response ≥60dB
Block Characteristic ≥85dB
S/N 40/34dB
