6-12W, 100-240Vac, Constant current LED Driver in small case
US $2.25 - US $2.52
US $2.50 - US $2.80
Production Lead Time:
7-35 day(s)
Shipping Method:
By sea, by air, by train, by courier
Application:
LED Luminaires
Brand:
SINOBASE
Feature:
Wide range of voltage input 100-240Vac
Material:
Plastic case
Light Source:
LED
Power Source:
AC Power
Description
Certification & Document
Contact Supplier
Description

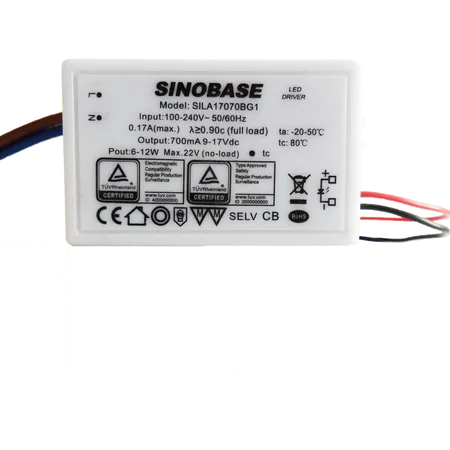

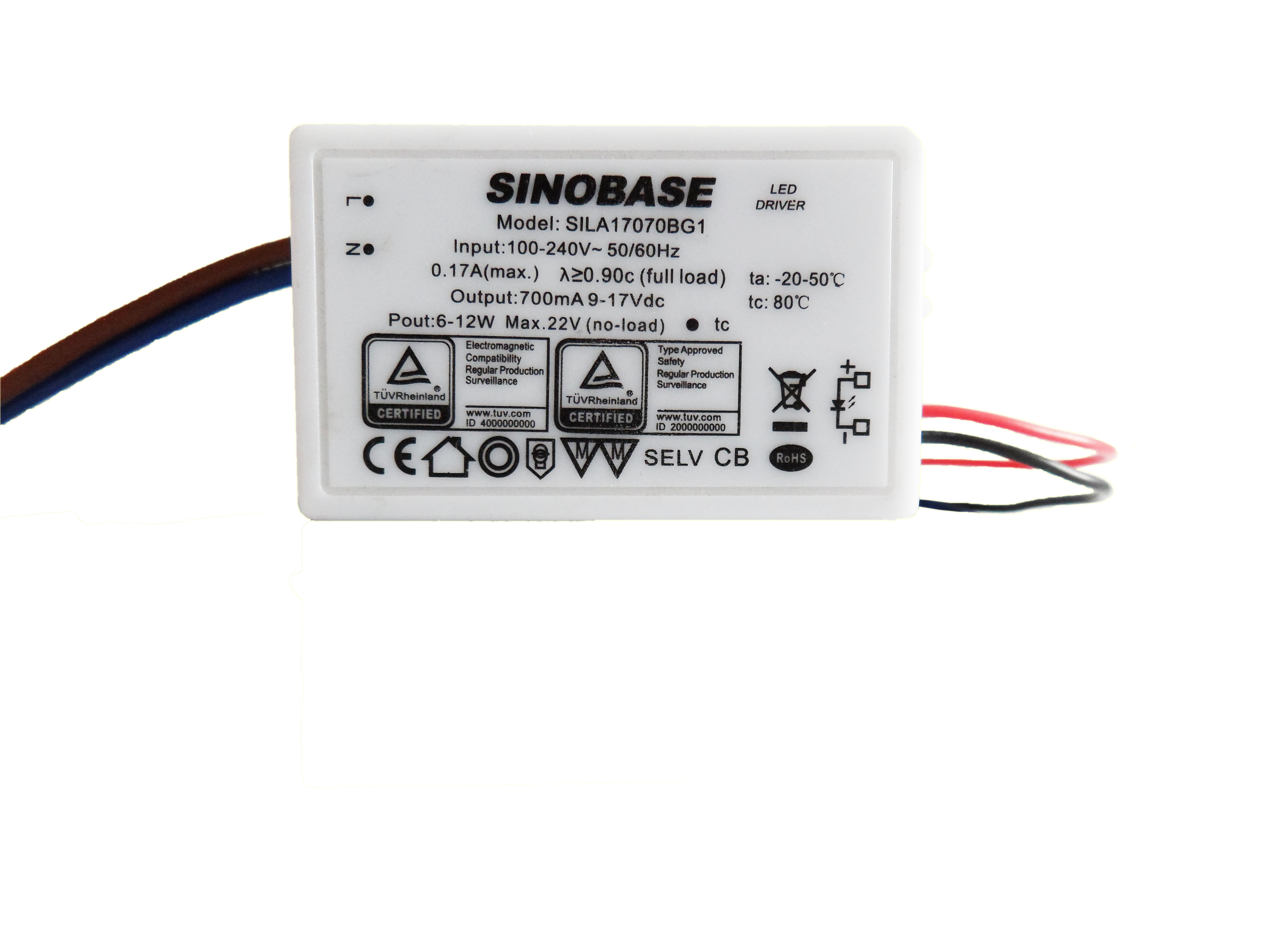

Small-sized water-proof LED driver (SinoBase) 6-12W, 100-240Vac
With boardly input volatage and 50,000Hrs lifetime
Optional for water-proof version
Features:
· Design in small size to fit your lamp；
· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；
· A wide range of input voltage 100-240Vac;
Specification：
| Power | Model | U_in(Vac) | U_out(Vdc) | Rated I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
6-12W | SILA60020BG1 | 100-240V～50/60Hz | 30-60 | 0.2 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA48025BG1 | 100-240V～50/60Hz | 24-48 | 0.25 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA40030BG1 | 100-240V～50/60Hz | 20-40 | 0.3 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA34035BG1 | 100-240V～50/60Hz | 17-34 | 0.35 | -20-50 | 80 | 11.9 | 69*35*23.5 |
6-12W | SILA30040BG1 | 100-240V～50/60Hz | 15-30 | 0.4 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA27045BG1 | 100-240V～50/60Hz | 13-27 | 0.45 | -20-50 | 80 | 12.15 | 69*35*23.5 |
6-12W | SILA24050BG1 | 100-240V～50/60Hz | 12-24 | 0.5 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA22055BG1 | 100-240V～50/60Hz | 11-22 | 0.55 | -20-50 | 80 | 12.1 | 69*35*23.5 |
6-12W | SILA20060BG1 | 100-240V～50/60Hz | 10-20 | 0.6 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA18065BG1 | 100-240V～50/60Hz | 9-18 | 0.65 | -20-50 | 80 | 11.7 | 69*35*23.5 |
6-12W | SILA17070BG1 | 100-240V～50/60Hz | 8-17 | 0.17 | -20-50 | 80 | 11.9 | 69*35*23.5 |
P.S.:
* The current step is 50mA, contact us for the specs outside of above tables.
* Option for glue potting or not as per you demand.
Certification：TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：
Design for all applicable LED luminaries, such as wall lamp, garden lamp, recessed light, bollards and other available LED luminaries, etc...
