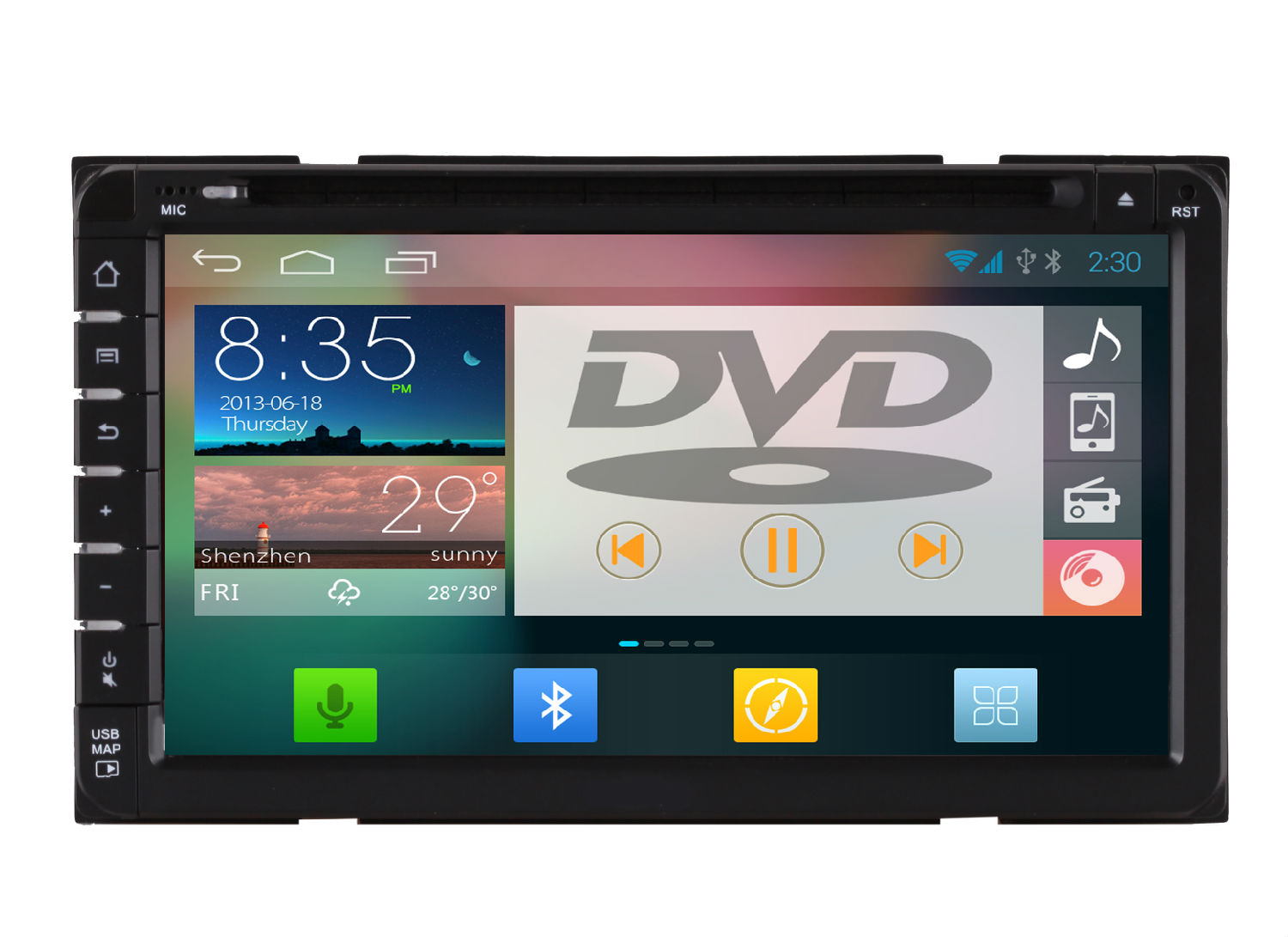

6.95 inch Universal Double Din Android 4.2 Multimedia System HD Touch Screen 3G Internet GPS DVD OBD
Production Lead Time:
14 day(s)
Weight:
2.8kg
Output Power:
4*45W
Model No.:
CPC4056A
Colour:
Piano Black
Size:
(L)178*(W)160*(H)101mm
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
50 unit
Material:
Metal & Plastic
Placement:
In-Dash
Voltage:
12V
Digital Media Format:
CD
Features:
Bluetooth, Built-in GPS, CD Player, Rechargeable, MP3 Players, Radio Tuner, Touch Screen, TV, Miracast,WiFi
Display Size:
7"
Car Maker:
All
On-screen display Language:
Chinese (Simplified), Chinese (Traditional), English, Russian, Thai, Ukrainian
Resolution:
800*480
Description
Contact Supplier
Description
Main Features
1.ARM CORTEX A9 CPU with 1GB Frequency .
2.8 Band EQ setting
3.Advance 3D Hardware Acceleration.
4.Advance Android 4.2 OS.
5.GPU output True 720HD resolution, Support 1080P movie format.
6.Allows Software Upgrades of Through SD card.
7.Support CANBUS, Displaying CANBUS information on TFT Screen.
8.Car Grade Standard Materials, Passed -20 to +70 degrees (-4~+150 ℉ ) temperature testing.
9.Programmable Steering Control's Functions For Most Cars.
10.iPhone Connectivity Through External adaptor For Audio Playback and On Screen Controls.
11.3G and WiFi Connectivity Enable
12.Support External Mouse and Keyboard.
13. Support Miracast (optional)
14. Support Steel wheeling control
15. Support Bluetooth phone call, download contactor list, music stream
14. Optional functions includes: Rear Camera, OBDⅡ,DTV,DVR,Miracast,3G,4G(*4G function requires an MOQ ).
Specification Parameter
Hardware:
-Working Voltage: 10.8-16V
-Memory Current: <6MA
-Platform: CSR PRIMAⅡ
-CPU: CSR PRIMAⅡ ContexA9
-CPU Frequency: 1GHz
-RAM: DDR3 1GB
-Storage: 8GB eMMC
-Resolution: 800*480
-Screen Brightness: 600cd/m2
-Touch Screen: Capactive touch screen
-Multi-touch: 10 point
-Handwriting: Support
-DVD IC: MT1389
-DVD Loader: Foryou car specifications DL-31
-Laser Head: HOP-1200XH(HITACHI)
-Navigation CPU processor: CSRG3001
-DSP Chip: BD37033
-Radio Tuner IC: NXP TEF6850
-DTV Chip: Siano SMS1184
-Game Function: Support wired Gamepad
-Built-in Cooling Fan: no
-Work Temperature: -20~+70°
-Mobile HDD: Support 1TB
