6-Layer Bare PCB

Production Lead Time:

5 day(s)

Model No.:

PCB board

Brand:

HCC

Colour:

Green

Size:

23' x 35'; board thickness: 1.6mm

Port:

Shenzhen

Type of Payment:

T/T, L/C at sight

Minimum Order Quantity:

Description

Contact Supplier

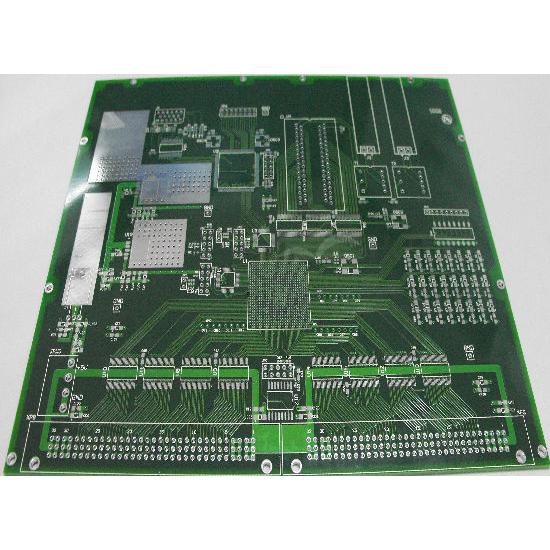

Demonstrated here is a bare printed circuit board coming with six layers. All parts are delicately attached in place for excellent performance. This bare PCB is a great choice for various kinds of electronic appliances.

FR4, TG 135 standard.
Layer: 6-layer.
Material: FR4, KB manufacturer.
Surface finish: Lead free HASL.
Min. through hole: 0.1mm (4 mil).
Min. line width: 0.075 (3 mil).
Min. line space: 0.1mm (4 mil).
E-test report.
Standard: IPC-600-II.
