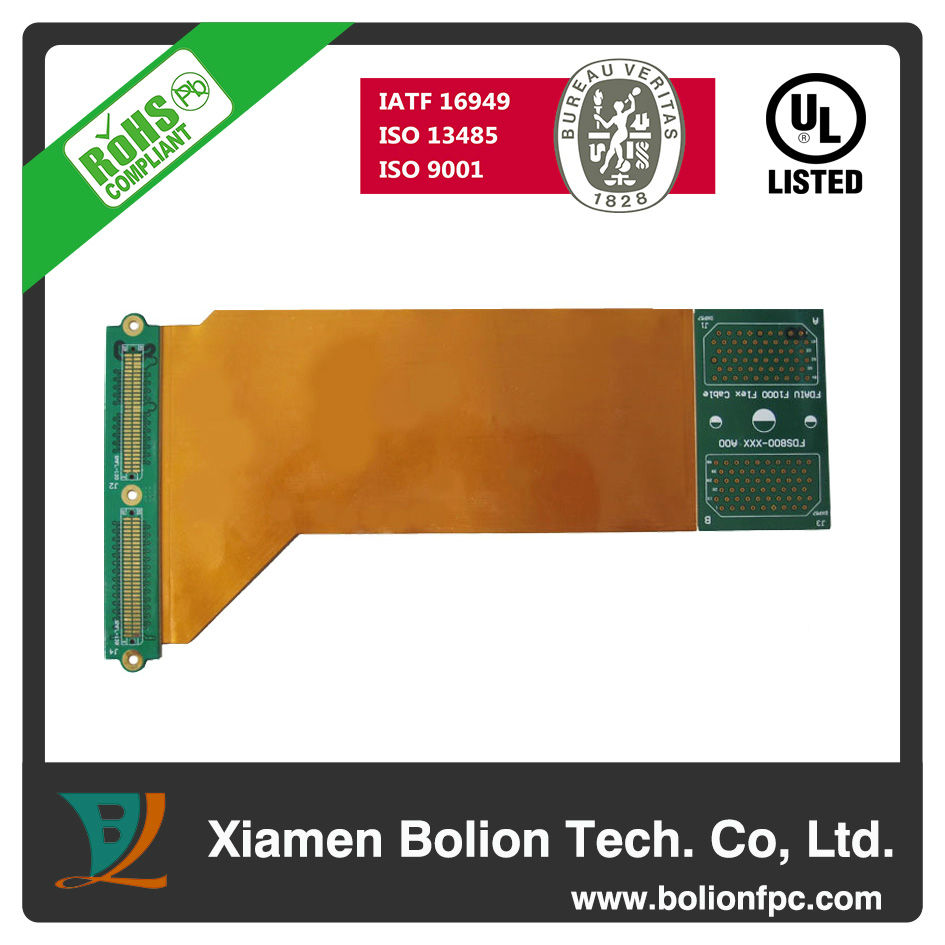

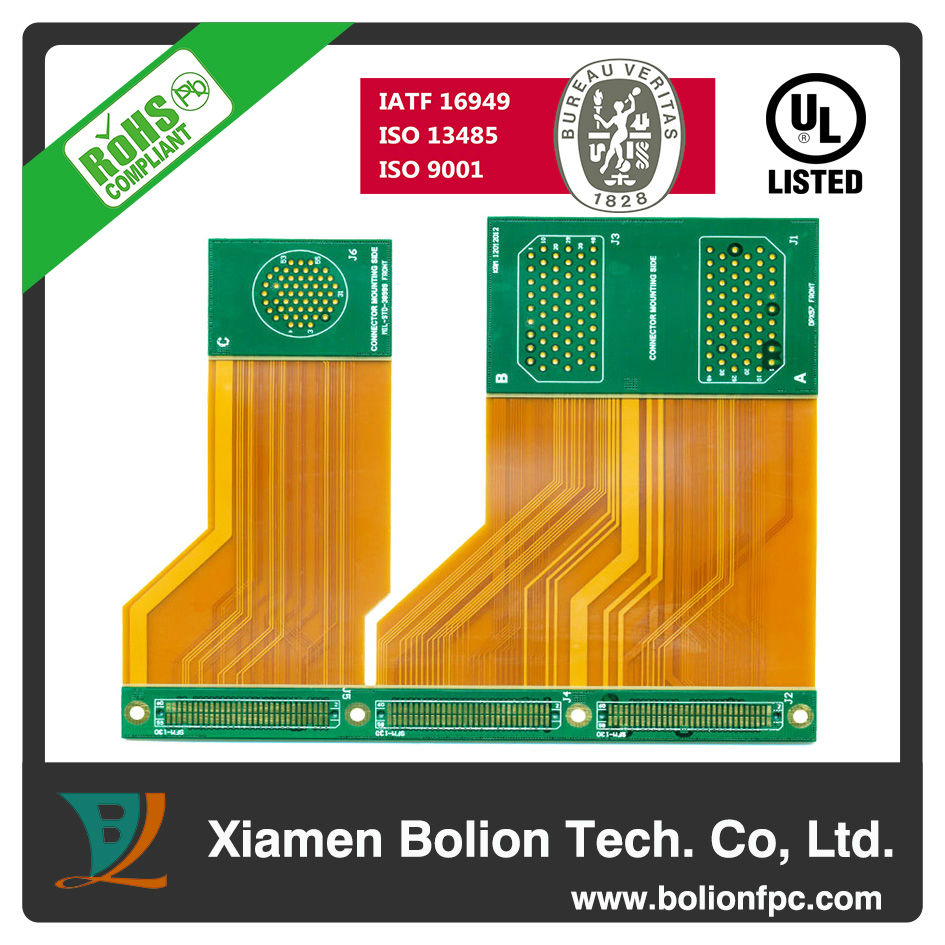

6 Layer High Quality Rigid-Flex PCB

Production Lead Time:

15 day(s)

Model No.:

R9680

Brand:

No Brand

Colour:

Green+Orange

Size:

162 x 132mm

Package:

Yes

Customised:

Yes

Board Thickness:

1.6mm

Min. Line Spacing:

0.3

Min. Line Width:

0.3

Base Material:

Polyimide+FR4

Copper Thickness:

1OZ/0.5OZ/0.5OZ/0.5OZ/0.5OZ/1OZ

Number of Layers:

6-Layer

Min. Hole Size:

0.3

Surface Finishing:

ENIG:Au: 0.03-0.09um,Ni:2-6um

Through Hole Type:

Pin Tthrough Hole PCB

Description

Contact Supplier

This rigid-flex printed circuit board uses polyimide and FR4 base material and has a 6 layer construction. It is a pin through hole type PCB and has ENIG (Au: 0.03 to 0.1um, Ni: 3 to 5um) surface treatment. The rigid-flex PCB has 0.3mm line width/space and is suitable for a wide variety of applications.

Base material: 0.5oz Cu/0.55mm FR-4, 0.5oz Cu/0.8mil ADH/1mil.
Line width/space: 0.3/0.3mm.
PI cover layer: green oil/0.5mil PI/0.6mil.
ADH surface treatment: ENIG (Au: 0.03 to 0.1um, Ni: 3 to 5um).
Outline tolerance: ±0.3mm.
Cover layer tolerance: ±0.3mm.
Suitable for a wide variety of applications.
