-Newest LED module industrial high bay light/flood light
-Integrated radiator shell,
Made of aluminum alloy by die-casting, light weight, strong intensity and with special surface treatment, Ease of use for over 10 years.
-High quality PC glass
thickness 6mm(explosion-proof), The attenuation of the transmittance do not exceed 5% within 10 years.
-High quality light source
The used LED lamp heads include OSRAM Duris E5, OSLON SSL series, Luminous Flux about is 140 ~160LM/W CRI>75
-Long life driver
Isolation design, top level components used, low temperature, the expected life not less than 60000 hours, can operate at minus 40 Celsius.

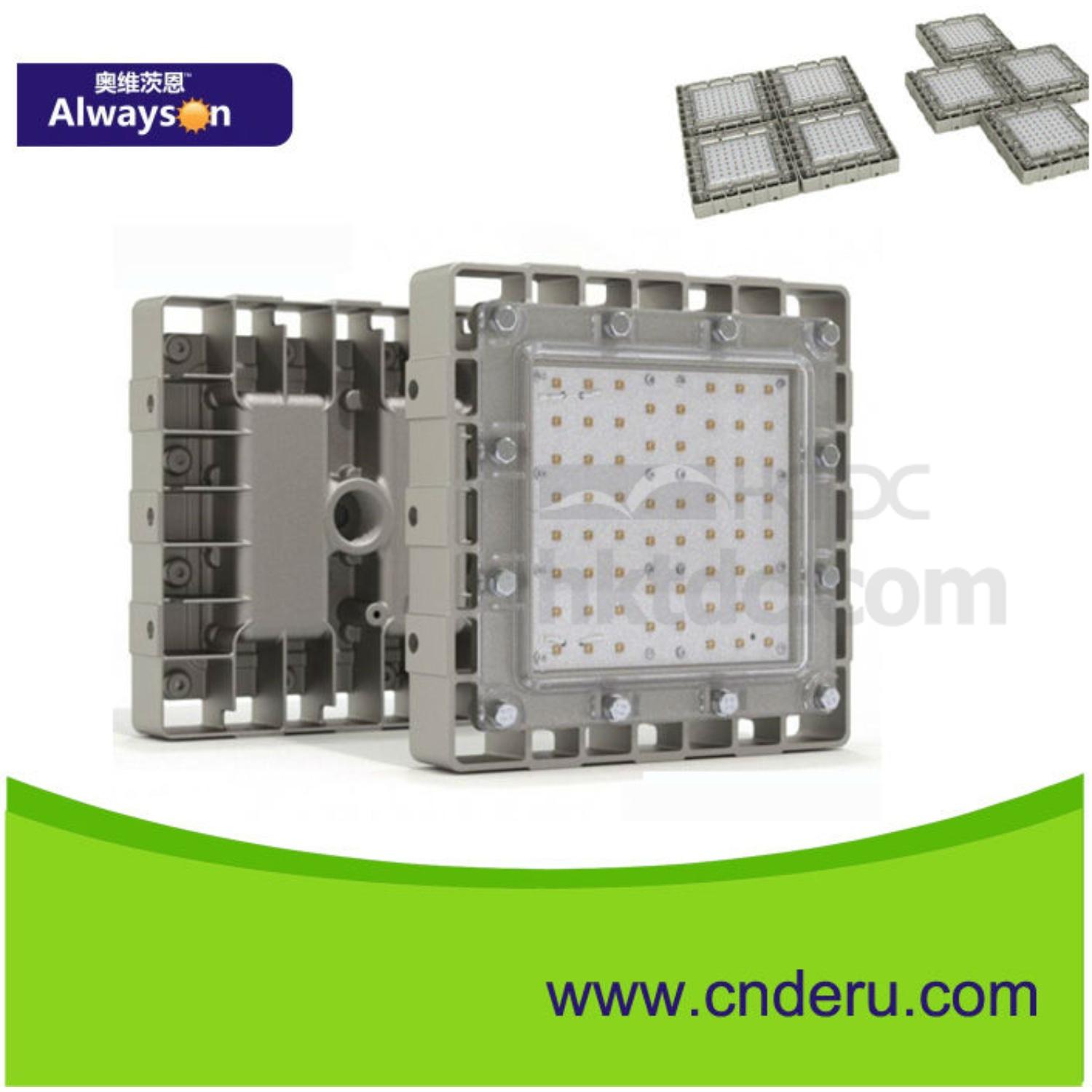

-Modular design
can be spliced by bolt in group of 2x 3x 4x 5x 6x 7x 8x 9x, as many as you want,
so the total luminous flux can be up to max 100,000lm or more
-Variety of installation methods
can be mounted on the ceiling, can be fixed.
-Strong protection capacity, up to IP67
-G3/4 standard threaded mounting structure
install through the pipe (using explosion-proof junction box ) or lifting.
-M threaded interface can be customized.
-Widely used range
Can be used as flood light, high bay light, tunnel light, or any other.
Such as general workshop in chemical industry, pharmaceutical, defense, food industry, refinery supermarket parking pot street underground and other flammable or explosive places.
-Two-year warranty

Please contact us for the installation method detail
